BU303R-TBMLS (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0209-0610) ; (0610- )IDN

Click highlighted areas on diagram

JACK

diagram 58794B 58794B 58797B 75297 75298 75299 75299 9056010111 9162140818 9162140818 9162140818 9427100800 9427100800
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
58797B - BAND, JACK CLAMP
58797-37020

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

PLANT NO. C11

 1
58797-37030

BU303,WU300..ST..TS

PLANT NO. P11

 1
75298 - PLATE, JACK HOLDER
75298-37030

BU303,WU300..ST..TS

 1
75299 - BASE, JACK HOLDER
75299-37040

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
75299 - BASE, JACK HOLDER
75299-37040

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
Common parts
90560-10111
91621-40818
94271-00800

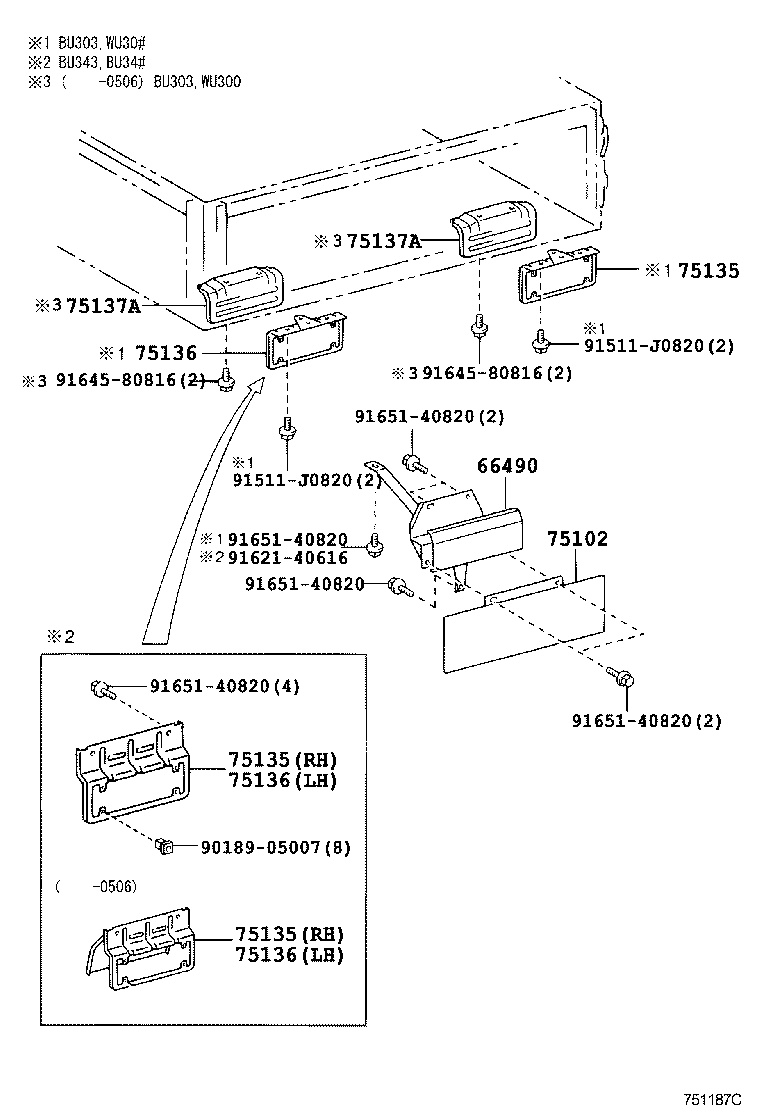

ILLUST NO. 2 OF 3(0212- )CBU

Click highlighted areas on diagram

LICENSE PLATE BRACKET

diagram 66490 75102 75135 75135 75135 75136 75136 75136 75137A 75137A 9018905007 91511J0820 91511J0820 9162140616 9164580816 9164580816 9165140820 9165140820 9165140820 9165140820 9165140820
Part # Description Qty Price
66490 - HANGER ASSY, LICENSE PLATE BRACKET
66490-37050

BU303,WU300..CBU

 1
66490-37020

BU303,WU300..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37030

BU303,343,WU300,340..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95412

BU303,WU300..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95412

BU303,WU300..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95412

BU303,WU300..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95412

BU303,WU300..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95412

BU303,WU300..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95412

BU303,WU300..CBU

 1
75137A - COVER COMBINATION
75137-95400

BU303,WU300..CBU

 2
75137A - COVER COMBINATION
75137-95400

BU303,WU300..CBU

 2
Common parts
90189-05007
91511-J0820
91621-40616
91645-80816
91651-40820

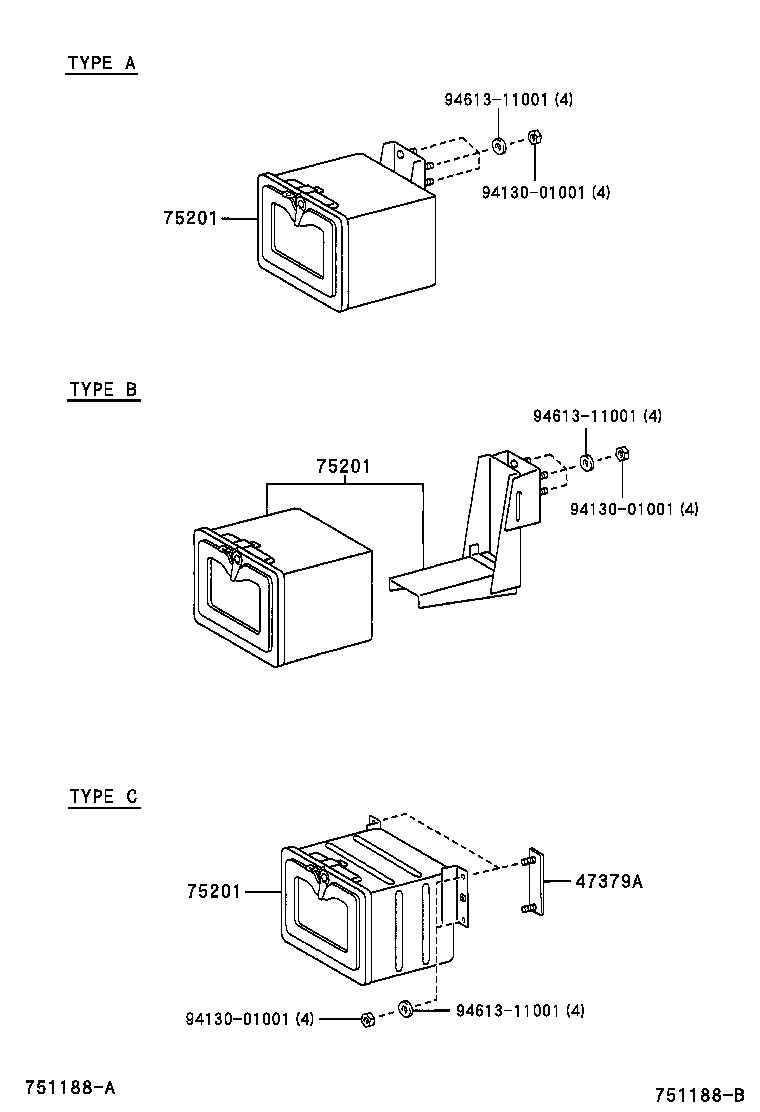

ILLUST NO. 3 OF 3(0212- )ARL,GCC,GEN,SA

Click highlighted areas on diagram

TOOL BOX

diagram 47379A 75201 75201 75201 9413001001 9413001001 9413001001 9461311001 9461311001 9461311001
Part # Description Qty Price
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37120

BU303..ST..TS

TYPE A:REFER TO ILLUSTRATION

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37120

BU303..ST..TS

TYPE A:REFER TO ILLUSTRATION

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37120

BU303..ST..TS

TYPE A:REFER TO ILLUSTRATION

 1
Common parts
94130-01001
94613-11001
