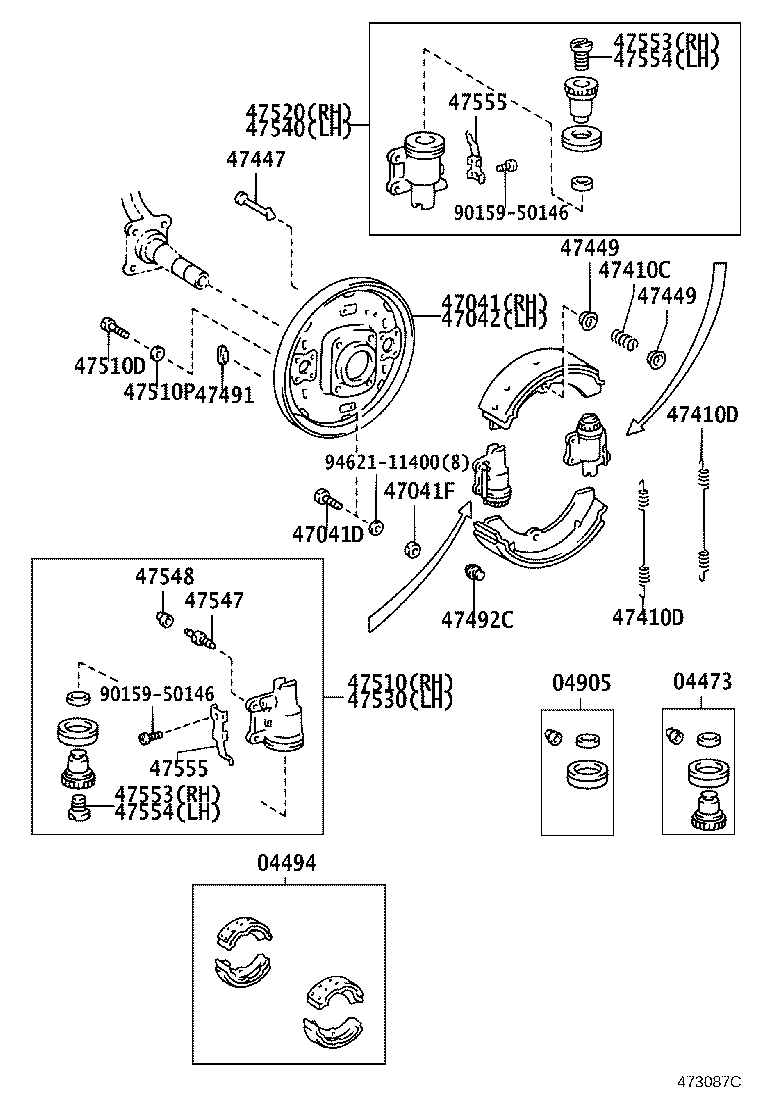

BU303R-TBMLS (2002)
Toyota Dyna
(0209-0410)XZU300,320,330..55T,65T ; (0209- )BU303,343,WU30#..GCC,GEN ; (0209-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36040 |
BU303,343,WU300,340..GCC,GEN LH |
2 | ||
| 04473-36040 |
BU303,343,WU300,340..GCC,GEN LH |
2 | ||
| 04473-36030 |
BU303,343,WU300,340..GCC,GEN RH |
2 | ||
| 04473-36030 |
BU303,343,WU300,340..GCC,GEN RH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36290 |
XZU342..65T;BU303,343,WU300,340..GCC,GEN MARK NBK LN519 |
1 | ||
| 04494-36290 |
XZU342..65T;BU303,343,WU300,340..GCC,GEN MARK NBK LN519 |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36160 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 04905-36160 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37101 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47041-37101 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-14001 |
BU303,343,WU300,340..GCC,GEN |
8 | ||
| 90101-14001 |
BU303,343,WU300,340..GCC,GEN |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
BU303,343,WU300,340..GCC,GEN |
8 | ||
| 94130-01441 |
BU303,343,WU300,340..GCC,GEN |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37101 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47042-37101 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
4 | ||
| 90501-20012 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
4 | ||
| 90507-29006 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
4 | ||
| 90507-29006 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36020 |
BU303,343,WU300,340..GCC,GEN |
4 | ||
| 47447-36020 |
BU303,343,WU300,340..GCC,GEN |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
8 | ||
| 47449-30020 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
8 | ||
| 47449-30020 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
8 | ||
| 47491-36020 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
8 | ||
| 47492C - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47492-28010 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
2 | ||
| 47492-28010 |
BU303,WU340..GCC,GEN;BU343,WU300..GCC,GEN,IDN |
2 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47510-36170 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU303,343,WU300,340..GCC,GEN |
16 | ||
| 90101-10127 |
BU303,343,WU300,340..GCC,GEN |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU303,343,WU300,340..GCC,GEN |
16 | ||
| 90201-10287 |
BU303,343,WU300,340..GCC,GEN |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47520-36180 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47530-36170 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47540-36180 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-27020 |
BU303,343,WU300..GCC,GEN;WU340,XZU342..(55T,65T)..(GCC,IDN) |
2 | ||
| 47547-27020 |
BU303,343,WU300..GCC,GEN;WU340,XZU342..(55T,65T)..(GCC,IDN) |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU303..TS;BU343,WU300,340,XZU342..(48T,55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 31478-30010 |
BU303..TS;BU343,WU300,340,XZU342..(48T,55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47553-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47553-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47554-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47554-36060 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
4 | ||
| 47555-36040 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
4 | ||
| 47555-36040 |
BU303,WU300..GCC,GEN;BU343,WU340,XZU342..(55T,65T)..(GCC,GEN,IDN) |
4 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 94621-11400 | ||||
