BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

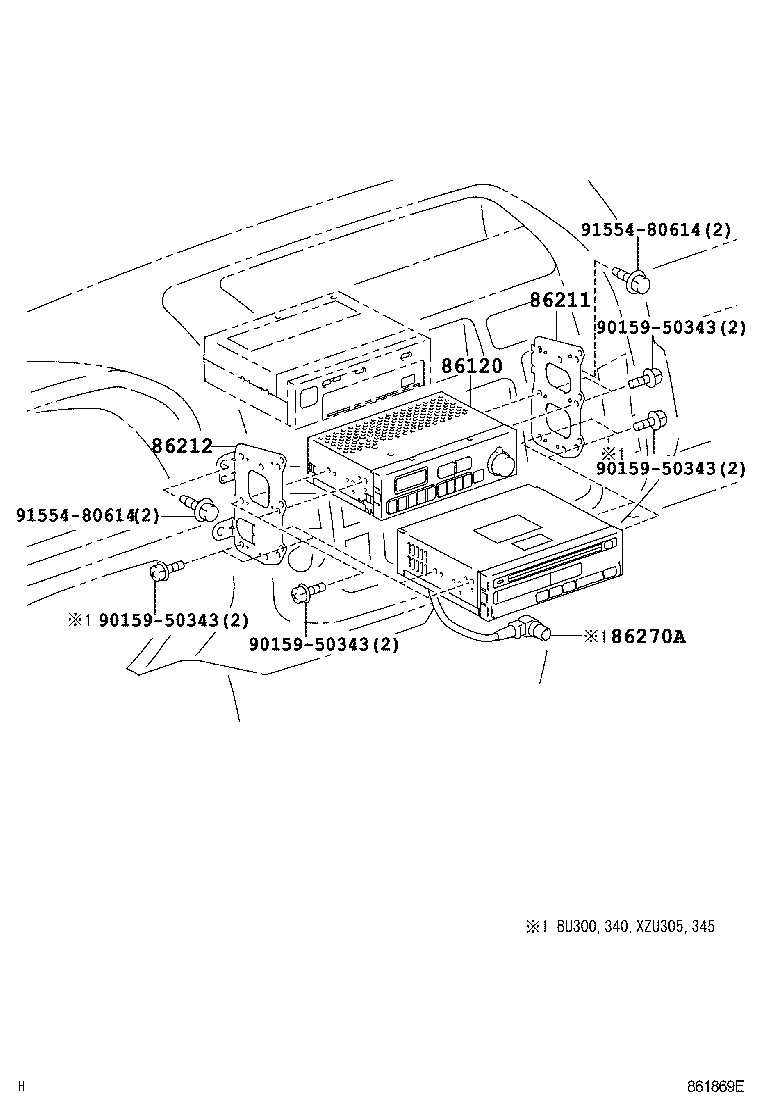

ILLUST NO. 1 OF 2(0212- )WU302,342..GEN ; (0212- )BU30#,34#,WU300,340,XZU30#,32#,33#,34#

Click highlighted areas on diagram

diagram 86120 86211 86212 86270A 9015950343 9015950343 9015950343 9015950343 9155480614 9155480614
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-37150

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

HINOJIDOU,TYPE A:REFER TO ILLUSTRATION

 1
86120-37160

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

HINOJIDOU,TYPE B:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-37060

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-37040

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
Common parts
90159-50343
91554-80614

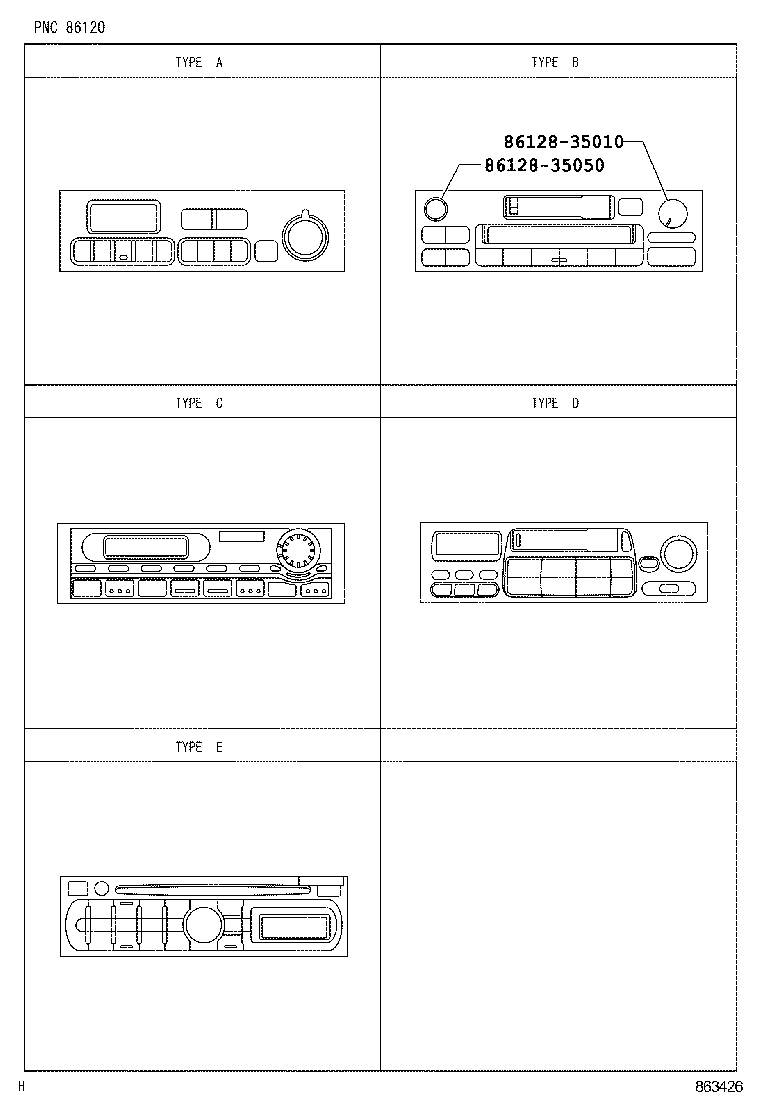

ILLUST NO. 2 OF 2(0212- )WU302,342..GEN ; (0212- )BU30#,34#,WU300,340,XZU30#,32#,33#,34#

Click highlighted areas on diagram

diagram 8612835010 8612835050
Part # Description Qty Price
Common parts
86128-35010
86128-35050
