Toyota Dyna BU303 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
DYNA
BU303L-TBMMS3 (2002)
8401 - SWITCH & RELAY & COMPUTER

BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF10(0212-0610)BU300,340,XZU300,320,330,340 ; (1706-)

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty	Price
Linked diagrams
1703
4503

ILLUST NO. 2 OF10(0209-0612)BU303,343 ; (0209- )WU302..IDN ; (0209- )WU300,34#,352..DCRTH,DCRT

Click highlighted areas on diagram

TRANSMISSION

Part #	Description	Period	Qty
83181G - SENSOR, SPEEDOMETER
83181-37010	BU303,343,WU300,340..GCC,GEN	12/2002 - 10/2006	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
Common parts
90430-18008

ILLUST NO. 1 OF10(0209-0612)BU30#,34#,XZU300,320,330,340

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	BU303,343..GEN	09/2002 - 10/2006	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28030	BU303,343..GEN	09/2002 - 10/2006	1
89422A - SENSOR, WATER TEMPERATURE
89422-36010	BU303,343,XZU300,320,330,340..GEN,TAIW	12/2002 - 10/2004	1
89422-37030	BU303,343,XZU300,320,330,340..GEN,TAIW	11/2004 - 10/2006	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37020	BU303,343..GEN	12/2002 - 10/2006	1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
90430-27001	BU303,343,XZU300,320,330,340..GEN,TAIW	12/2002 - 10/2006	1
Common parts
90430-16010
91651-60614

ILLUST NO. 3 OF10(0212-0610)GCC,GEN ; (0304-0812)SA ; (0610-1106)WU300,340..GCC,GEN

Click highlighted areas on diagram

SPEEDOMETER SENSOR

Part #	Description	Period	Qty	Price
83181G - SENSOR, SPEEDOMETER
83181-37010	BU303,343,WU300,340..GCC,GEN	12/2002 - 10/2006	1

Part #

Description

Qty

Price

83181G - SENSOR, SPEEDOMETER

83181-37010

BU303,343,WU300,340..GCC,GEN

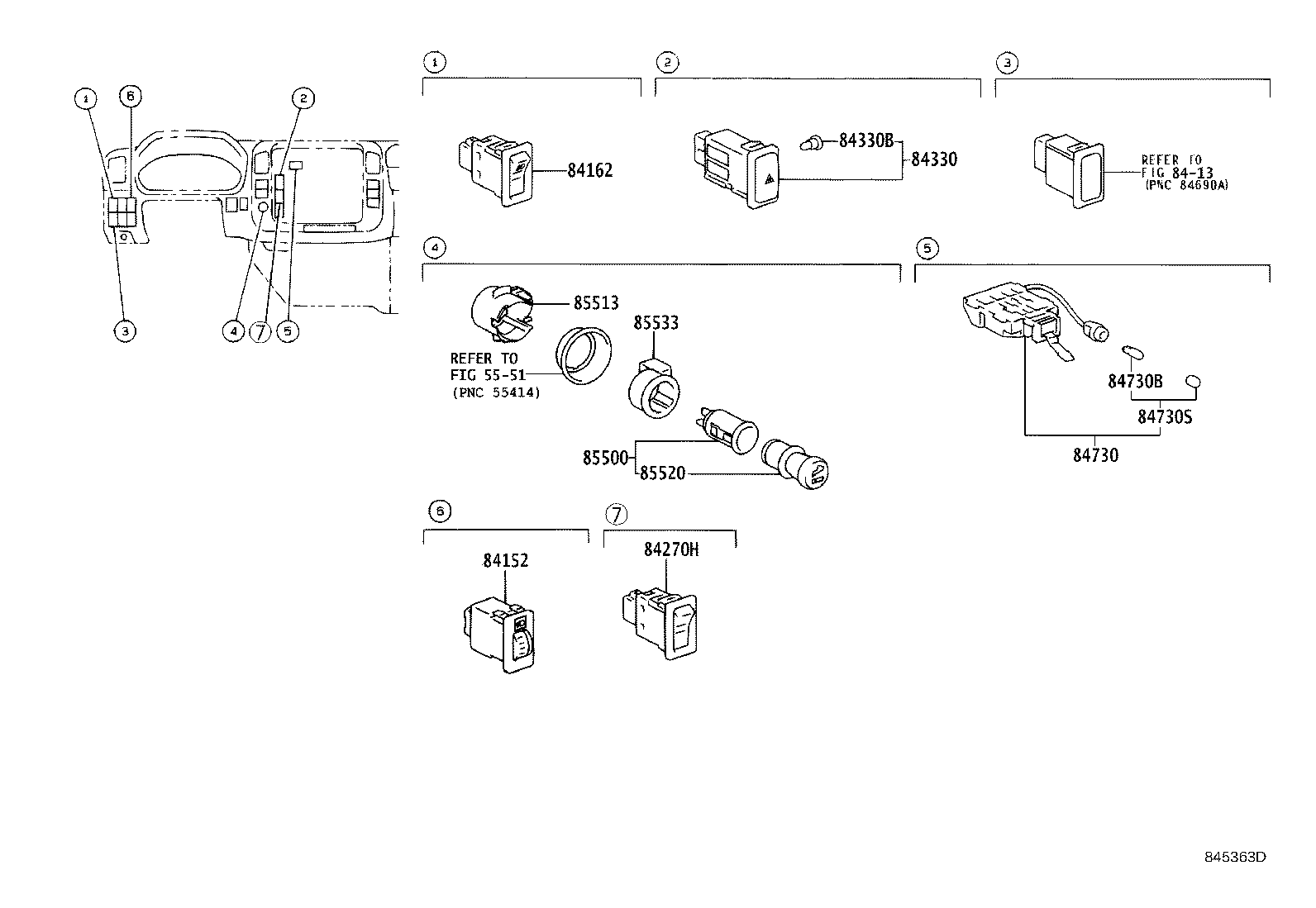

ILLUST NO. 7 OF10(0212-0610)BU303,343,WU300,340..LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCH

Part #	Description	Period	Qty
84162 - SWITCH, FRONT FOG LAMP
84160-37030	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-37090	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10570	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 28V 0.024A	09/2002 - 10/2006	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 24V 1.8W	12/2002 - 10/2006	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01153	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 24V 1.8W,W(CAP)	12/2002 - 10/2006	1
85500 - LIGHTER ASSY, CIGARETTE
85500-36020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-95400	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
Linked diagrams
5551
8413

ILLUST NO. 6 OF10(0212-0610)GCC,GEN

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-58040	14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW	12/2002 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37191	BU303,343..GEN	05/2004 - 10/2006	1
82662-37190	BU303,343..GEN	12/2002 - 05/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37070	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
Common parts
82717-37020
90179-06171
90179-10015
94130-00802

ILLUST NO. 5 OF10(0212-0610)LHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-37200	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 15A,MINI FUSE,BLUE	12/2002 - 10/2006	1
90982-09009	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 10A,MINI FUSE,RED	12/2002 - 10/2006	1
90982-09011	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 20A,MINI FUSE,YELLOW	12/2002 - 10/2006	1
90982-09008	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 7.5A,MINI FUSE,BRN	12/2002 - 10/2006	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37301	BU303,343..GEN ENGLISH & FRENCH	05/2003 - 10/2006	1
82683-37300	BU303,343..GEN ENGLISH & FRENCH	12/2002 - 05/2003	1
82683-37310	BU303,343,WU300,340..LHD SPANISH & ARABIC	12/2002 - 05/2003	1
82683-37311	BU303,343,WU300,340..LHD SPANISH & ARABIC	05/2003 - 10/2006	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
85915 - RELAY, MAIN
90987-02018	BU303,WU300..WT..(GCC,GEN)..IV3	06/2003 - 10/2006	1
85916D - RELAY, FOG LAMP
90987-02018	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
85916N - RELAY, TAIL LAMP
90987-02018	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
85916P - RELAY, HEADLAMP
90987-02019	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
85985 - RELAY, KEY REMINDER
80590-37100	BU303,WU300..LHD..WT..IV3 W(POWER WINDOW)	06/2003 - 10/2006	1
86530 - RELAY ASSY, HORN
90987-02017	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
Common parts
91621-J0814
91651-B0820
94120-41000
Linked diagrams
8202

ILLUST NO. 8 OF10(0209-0612)BU303,343,WU300,340..IDN ; (0212-0610)RHD..ARL,GEN ; (0304-0812)SA ; (06

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCH

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80236	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
84112-80223	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 10/2006	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80236	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
84112-80223	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 10/2006	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-37060	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 07/2003	1
84140-37061	BU303,343,WU300,340,XZU300,320,330,340..LHD	07/2003 - 10/2006	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-37060	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 07/2003	1
84140-37061	BU303,343,WU300,340,XZU300,320,330,340..LHD	07/2003 - 10/2006	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-37220	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 07/2003	1
84310-37221	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	07/2003 - 02/2004	1
84310-37390	BU303,343,WU300,340..LHD	12/2002 - 07/2003	1
84310-37391	BU303,343,WU300,340..LHD	07/2003 - 02/2004	1
84310-37392	BU303,343,WU300,340..LHD	02/2004 - 10/2006	1
84310-37222	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	02/2004 - 10/2006	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-37220	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 07/2003	1
84310-37221	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	07/2003 - 02/2004	1
84310-37390	BU303,343,WU300,340..LHD	12/2002 - 07/2003	1
84310-37391	BU303,343,WU300,340..LHD	07/2003 - 02/2004	1
84310-37392	BU303,343,WU300,340..LHD	02/2004 - 10/2006	1
84310-37222	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	02/2004 - 10/2006	1
84312 - PLATE, HORN CONTACT
84312-20011	BU303,343,WU300,340,XZU300,320,330,340..LHD	07/2003 - 10/2006	1
84312-20011	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 06/2003	1
84312 - PLATE, HORN CONTACT
84312-20011	BU303,343,WU300,340,XZU300,320,330,340..LHD	07/2003 - 10/2006	1
84312-20011	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 06/2003	1
84329 - SWITCH, TURN SIGNAL
84329-37080	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 07/2003	1
84329-37110	BU303,343,WU300,340..LHD	12/2002 - 07/2003	1
84329-37111	BU303,343,WU300,340..LHD	07/2003 - 10/2006	1
84329-37081	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	07/2003 - 10/2006	1
84329 - SWITCH, TURN SIGNAL
84329-37080	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 07/2003	1
84329-37110	BU303,343,WU300,340..LHD	12/2002 - 07/2003	1
84329-37111	BU303,343,WU300,340..LHD	07/2003 - 10/2006	1
84329-37081	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	07/2003 - 10/2006	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37120	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
84450-37160	BU303,343,WU300,340..GCC,GEN W(TILT & TELESCOPIC STEERING)	12/2002 - 10/2006	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37120	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
84450-37160	BU303,343,WU300,340..GCC,GEN W(TILT & TELESCOPIC STEERING)	12/2002 - 10/2006	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-37260	BU303,343,WU300,340..LHD	12/2002 - 07/2003	1
84652-37180	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 07/2003	1
84652-37182	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	02/2004 - 10/2006	1
84652-37261	BU303,343,WU300,340..LHD	07/2003 - 02/2004	1
84652-37181	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	07/2003 - 02/2004	1
84652-37262	BU303,343,WU300,340..LHD	02/2004 - 10/2006	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-37260	BU303,343,WU300,340..LHD	12/2002 - 07/2003	1
84652-37180	BU303,343,WU300,340..LHD W(TILT & TELESCOPIC STEERING)	12/2002 - 07/2003	1
84652-37182	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	02/2004 - 10/2006	1
84652-37261	BU303,343,WU300,340..LHD	07/2003 - 02/2004	1
84652-37181	BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING)	07/2003 - 02/2004	1
84652-37262	BU303,343,WU300,340..LHD	02/2004 - 10/2006	1
Common parts
82711-16830
82716-37241
90080-46104
90168-40129
90463-15003
90464-00551
91611-G0612
93319-14012
93319-15012
Linked diagrams
4501
