BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

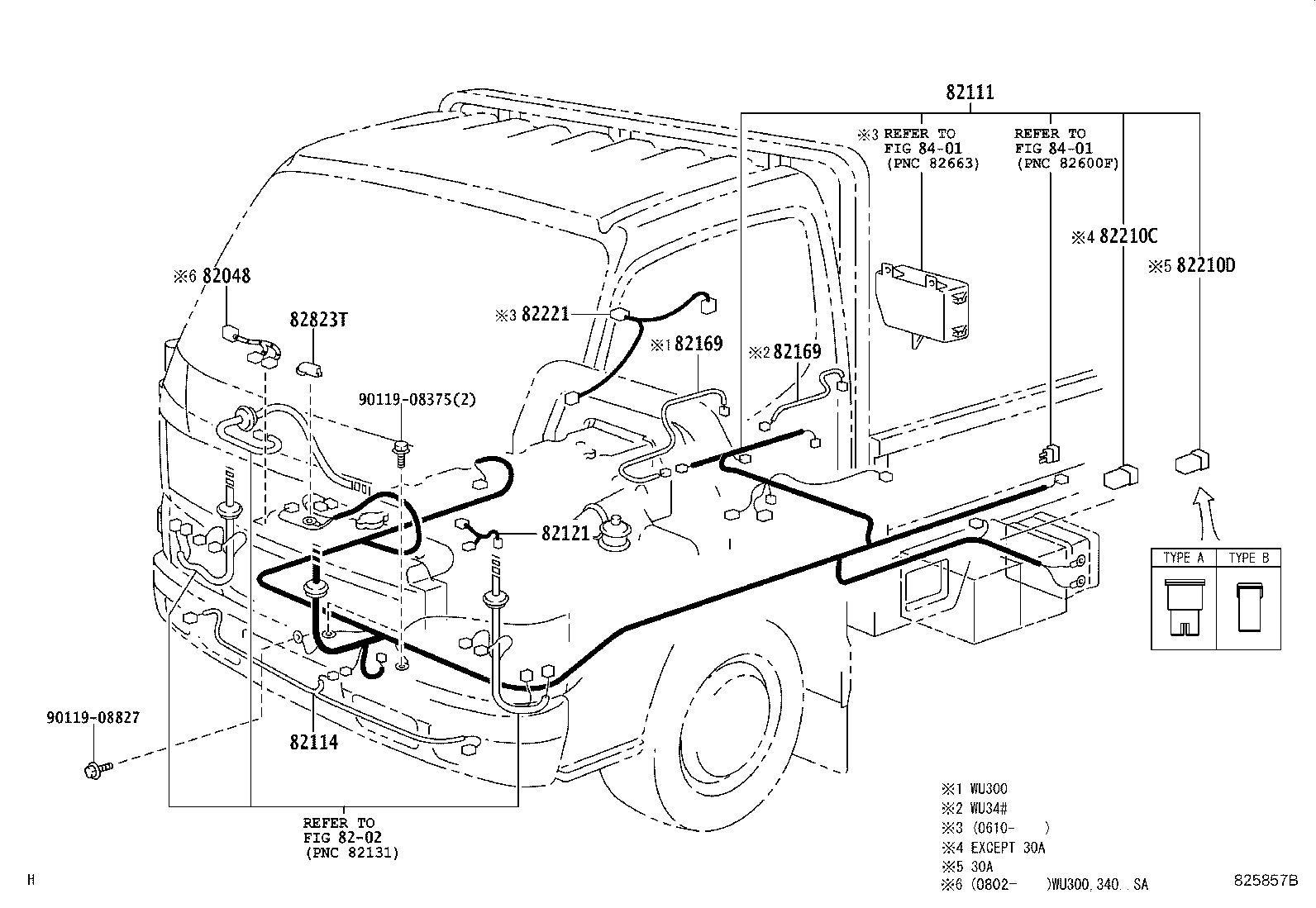

ILLUST NO. 1 OF 5(0212-0610)BU303,343,WU300,340 ; (0610-1106)GCC,GEN,SA

Click highlighted areas on diagram

ENGINE ROOM & ENGINE

diagram 8202 82048 82111 82114 82121 82169 82169 82210C 82210D 82221 82823T 8401 8401 9011908375 9011908827
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-3V510

BU303,343..LHD

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37020

BU303,343,WU300,340..GCC,GEN

 1
82121 - WIRE, ENGINE
82139-37140

BU303,343..GEN

 1
82169 - WIRE FRAME, NO.3
82169-37320

BU303,WU300,XZU300,330..GCC,GEN,TAIW

 1
82169 - WIRE FRAME, NO.3
82169-37320

BU303,WU300,XZU300,330..GCC,GEN,TAIW

 1
82210C - FUSIBLE LINK
90982-08203

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

80A,TERM.:MALE,BLK

 1
90982-08281

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

40A,TERM.:FEMALE,GRN

 1
90982-08282

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

50A,TERM.:FEMALE,RED

 1
90982-08202

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

60A,TERM.:MALE,YEL

 1
90982-08246

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

100A,TERM.:MALE,BLUE

 1
82210D - FUSIBLE LINK
90982-08280

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

30A,TERM.:FEMALE,PNK,TYPE B:REFER ILLUST.

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

WU300,340..GCC,SA;BU30#,34#,XZU300,305,320,330,340,342,345

 1
Common parts
90119-08375
90119-08827
Linked diagrams
8202
8401
