BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )WU340..65T..GEN ; (0212- )WU340..LHD..55T ; (0212- )BU303,343,WU30

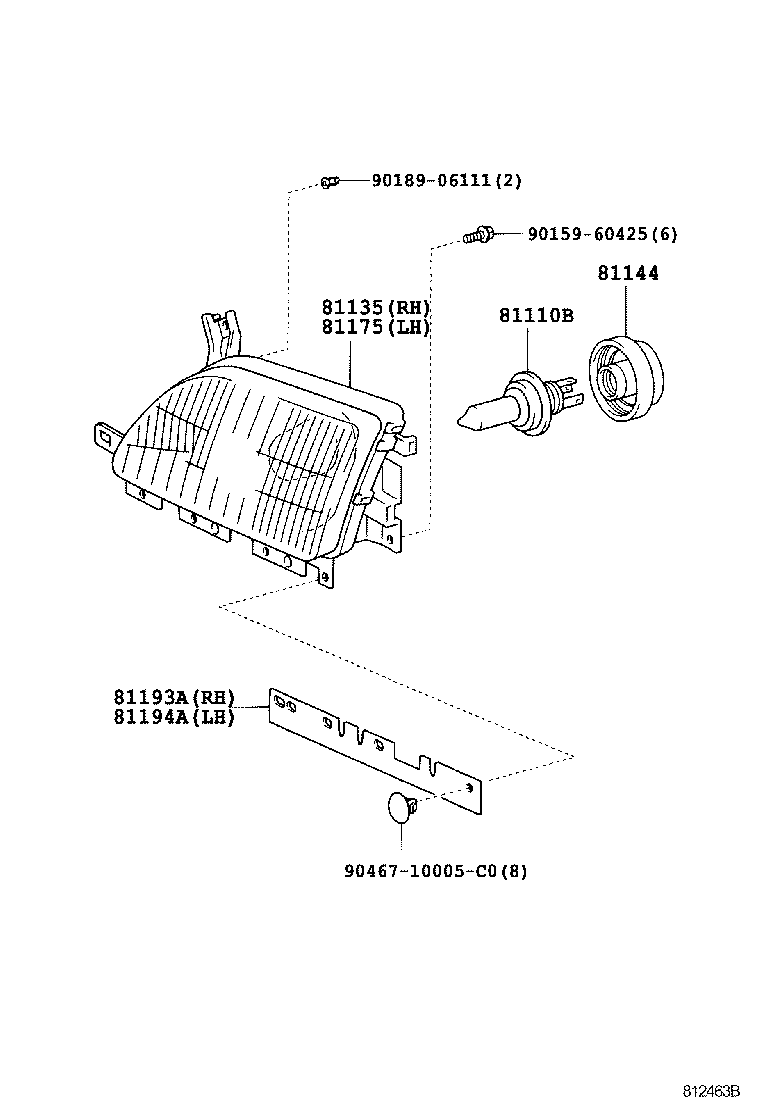

Click highlighted areas on diagram

diagram 81110B 81135 81144 81175 81193A 81194A 9015960425 9018906111 9046710005C0
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

24V 75/70W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37120

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
81130-37240

BU303,343..LHD..WT

ALGERIA SPEC

 1
81144 - COVER, HEADLAMP, NO.1
81139-37110

BU303,343,WU300,340,XZU300,320,330,340..LHD

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-37121

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
81170-37240

BU303,343..LHD..WT

ALGERIA SPEC

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37050

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
81194A - PROTECTOR, HEADLAMP, LH
81193-37050

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
Common parts
90159-60425
90189-06111
90467-10005C0
