BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

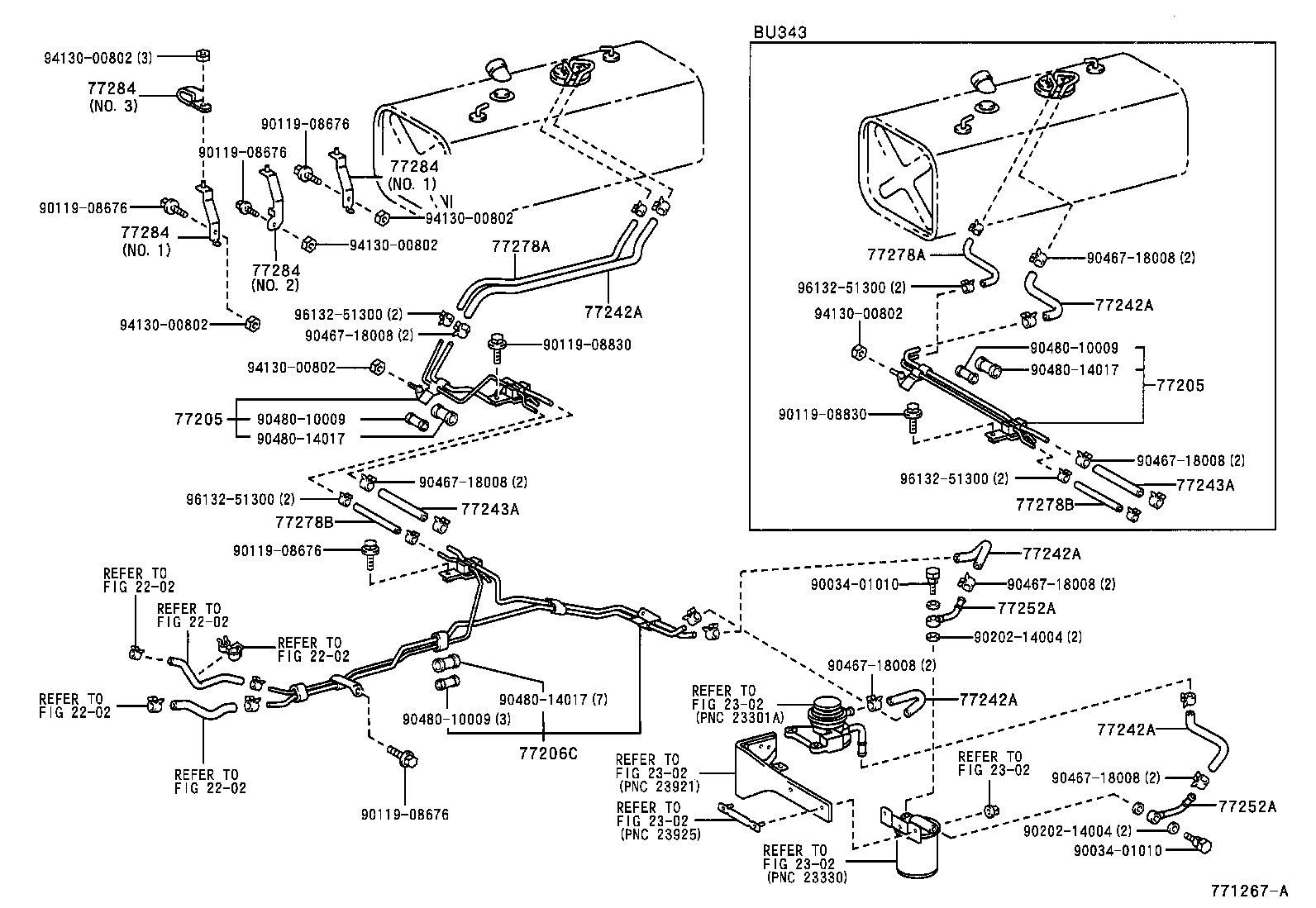

ILLUST NO. 2 OF 2(0212-0610)GEN

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 2202 2202 2202 2202 2302 2302 2302 2302 2302 77205 77205 77206C 77242A 77242A 77242A 77242A 77242A 77243A 77243A 77252A 77252A 77278A 77278A 77278B 77278B 77284 77284 77284 77284 9003401010 9003401010 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9011908830 9020214004 9020214004 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9048010009 9048010009 9048010009 9048014017 9048014017 9048014017 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37340

BU303,WU300..GCC,GEN

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37340

BU303,WU300..GCC,GEN

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37831

BU303,343..GEN

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

BU303,WU300,XZU300,320,330..GCC,GEN,TAIW

*H,L=220,ID=12

 1
95332-12028

BU303,343..GEN

*H,L=280,ID=12

 3
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

BU303,WU300,XZU300,320,330..GCC,GEN,TAIW

*H,L=220,ID=12

 1
95332-12028

BU303,343..GEN

*H,L=280,ID=12

 3
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

BU303,WU300,XZU300,320,330..GCC,GEN,TAIW

*H,L=220,ID=12

 1
95332-12028

BU303,343..GEN

*H,L=280,ID=12

 3
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

BU303,WU300,XZU300,320,330..GCC,GEN,TAIW

*H,L=220,ID=12

 1
95332-12028

BU303,343..GEN

*H,L=280,ID=12

 3
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

BU303,WU300,XZU300,320,330..GCC,GEN,TAIW

*H,L=220,ID=12

 1
95332-12028

BU303,343..GEN

*H,L=280,ID=12

 3
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

*H,L=200,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

*H,L=200,ID=12

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-37740

BU303,343..GEN

 2
77252A - TUBE, FUEL MAIN, NO.2
77252-37740

BU303,343..GEN

 2
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

BU303,WU300,XZU300,330..GCC,GEN,TAIW

*H,L=240,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

BU303,WU300,XZU300,330..GCC,GEN,TAIW

*H,L=240,ID=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

*H,L=200,ID=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

*H,L=200,ID=7.6

 1
Common parts
90034-01010
90119-08676
90119-08830
90202-14004
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

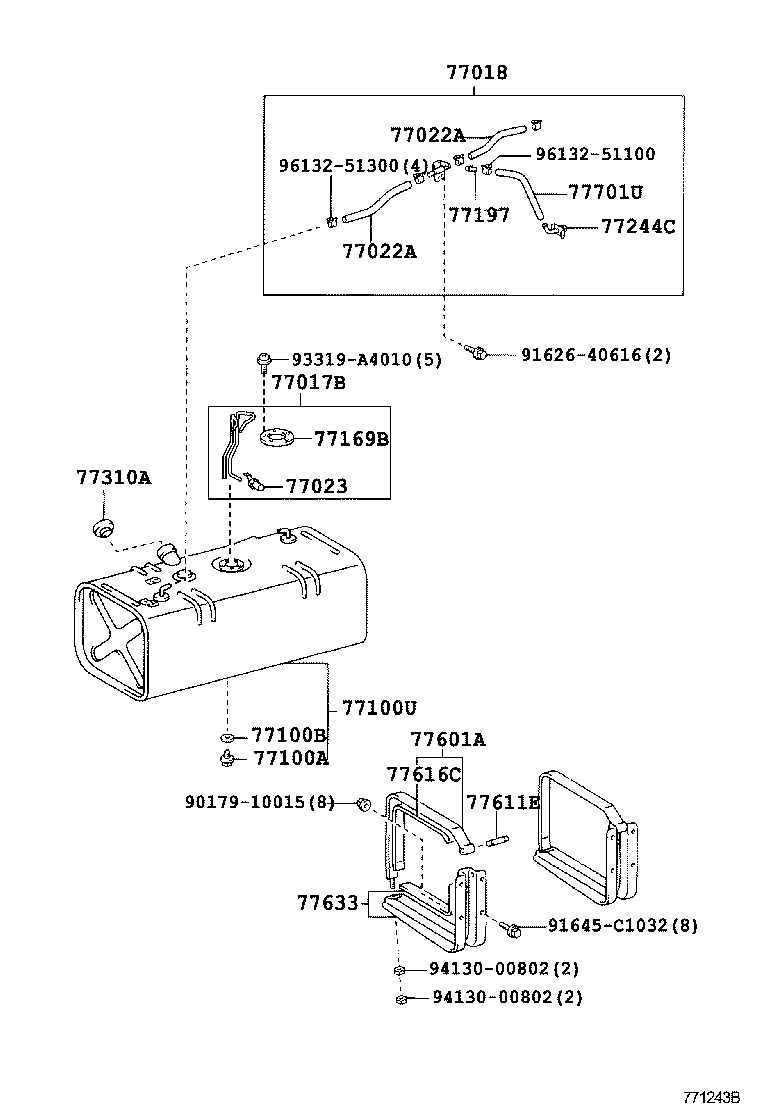

ILLUST NO. 1 OF 2(0212-0610)BU303,WU300..GCC,GEN ; (0304- )SA

Click highlighted areas on diagram

FUEL TANK

diagram 77017B 77018 77022A 77022A 77023 77100A 77100B 77100U 77169B 77197 77244C 77310A 77601A 77611E 77616C 77633 77701U 9017910015 9162640616 91645C1032 93319A4010 9413000802 9413000802 9613251100 9613251300
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

BU303,343,WU300,340,XZU30#,320,330,340..ARL,GCC,GEN,TAIW

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

*H,L=280,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

*H,L=280,ID=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
77100U - TANK SUB-ASSY, FUEL
77001-37210

BU30#,WU300,XZU300,320..ARL,GCC,GEN,TAIW

780X310X385

 1
77001-37211

BU303,WU300,XZU300,320..GCC,GEN,SA,TAIW

780X310X385

 1
77001-37212

BU303,WU300,XZU300,320..GCC,GEN,TAIW

780X310X385

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
77310A - CAP ASSY, FUEL TANK
77310-60100

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

BU303,343,WU300,340..GCC,GEN

 2
77611E - PIN, FUEL TANK BAND
77629-36010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
77633 - STAY, FUEL TANK
77633-37100

BU303,343,WU300,340..GCC,GEN

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

*H,L=400

 1
Common parts
90179-10015
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300
