BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )WU302,342..GEN ; (0212- )BU30#,34#,WU300,340,XZU30#,32#,33#,34#

Click highlighted areas on diagram

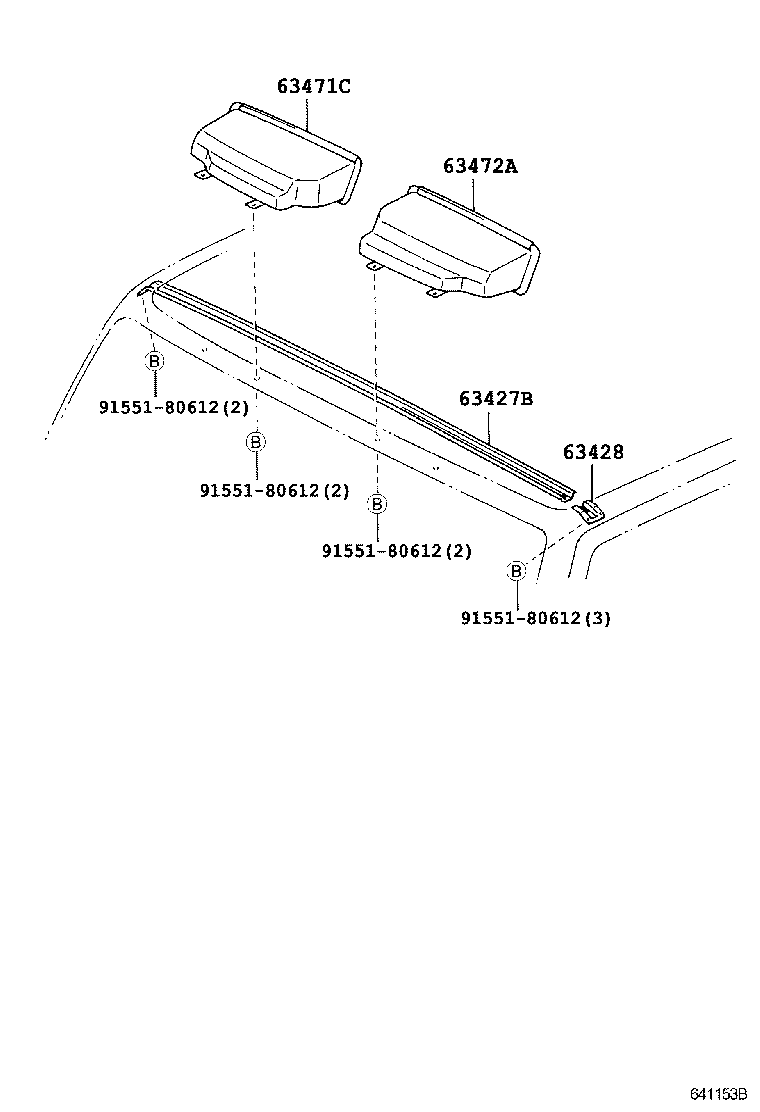

diagram 63427B 63428 63471C 63472A 9155180612 9155180612 9155180612 9155180612
Part # Description Qty Price
63427B - BRACKET, ROOM RACK FRAME
63401-37010

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
63428 - BRACKET, ROOF INNER RACK, FRONT LH
63428-37010

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
63471C - LEG, ROOF RACK, FRONT RH
63471-37010

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
63472A - LEG, ROOF RACK, FRONT LH
63472-37010

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
Common parts
91551-80612
