BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212-0610)BU30#..RHD..WT ; (0212-0610)WU300..WT..IV3 ; (0212-0610)BU303..LHD..WT..

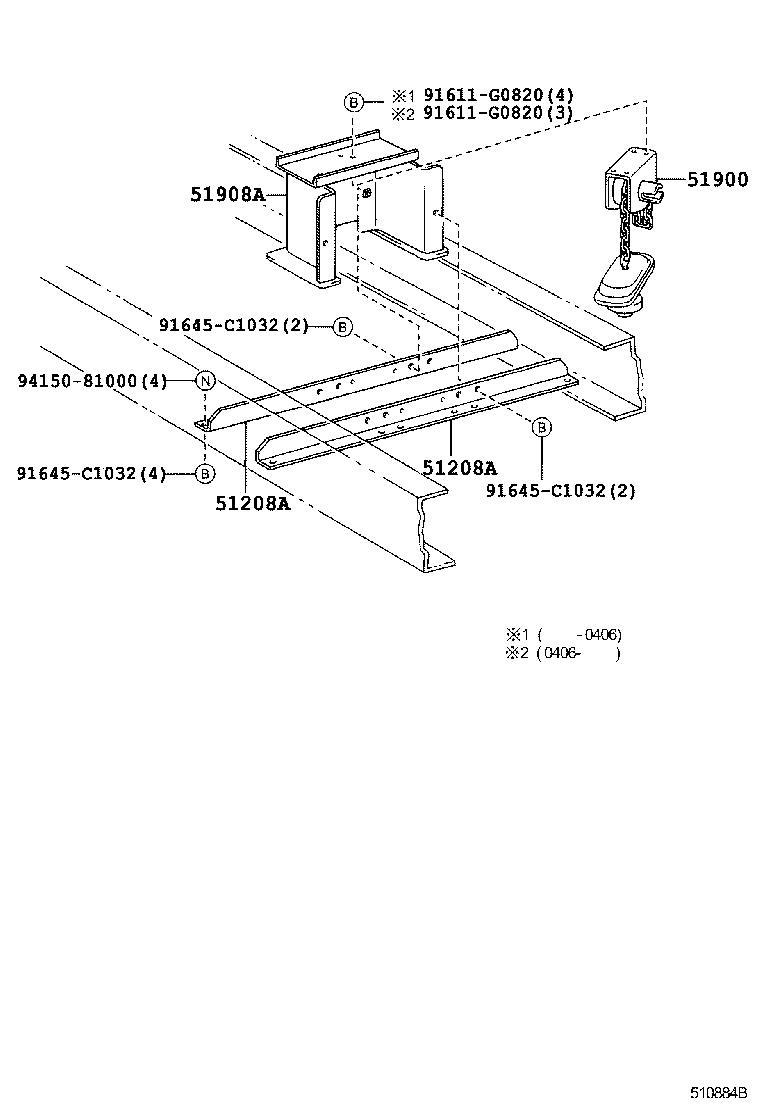

Click highlighted areas on diagram

REAR SIDE

diagram 51208A 51208A 51900 51908A 91611G0820 91611G0820 91645C1032 91645C1032 91645C1032 9415081000
Part # Description Qty Price
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37020

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW)

 2
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37020

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW)

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-37100

BU303..RHD..TS;BU303..LHD..ST;WU300..ST..CBU;BU303..LHD..WT..IV3;WU300,XZU30#..(ARL,GCC,SA,TAIW)..IV3

 1
51900-37030

BU303..RHD..TS;BU303..LHD..ST;WU300..ST..CBU;BU303..LHD..WT..IV3;WU300,XZU30#..(ARL,GCC,SA,TAIW)..IV3

 1
51908A - BRACKET SUB-ASSY, SPARE WHEEL MOUNTING
51908-37090

BU303..RHD..WT;BU303..LHD..WT..IV3;WU300,XZU30#..WT..IV3

 1
51908-37260

BU303..RHD..WT;BU303..LHD..WT..IV3;WU300,XZU30#..WT..IV3

REAR SIDE

 1
Common parts
91611-G0820
91645-C1032
94150-81000
