BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0412- )WU342..IDN..IV3 ; (0412- )WU342..IV8..VBODY ; (0412- )BU343,WU302,

Click highlighted areas on diagram

PROPELLER SHAFT GUARD

diagram 51100F 51568 51568 51569 51569 9155180825 9155180825 9155180825 9155180825 9415180800 9415180800
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51002-3V600

BU303,WU300..LHD..WT

 1
51002-3V601

BU303,WU300..LHD..WT

 1
Common parts
91551-80825
94151-80800

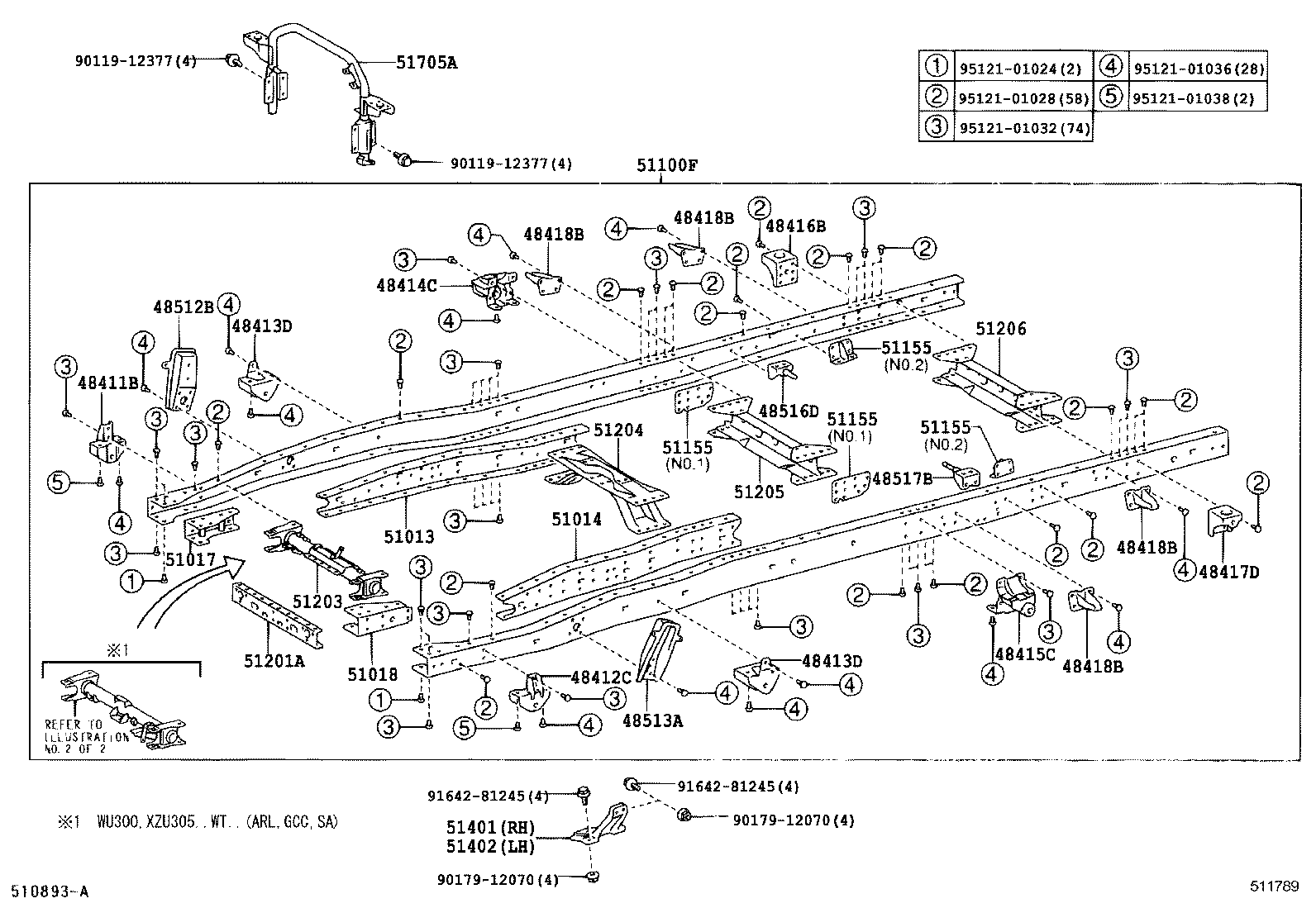

ILLUST NO. 1 OF 2(0212-0610)BU30#,WU300,XZU305..WT..ARL,GCC,GEN ;(0304- )WU300..SA

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48413D 48414C 48415C 48416B 48417D 48418B 48418B 48418B 48418B 48512B 48513A 48516D 48517B 51013 51014 51017 51018 51100F 51155 51155 51155 51155 51201A 51203 51204 51205 51206 51401 51402 51705A 9011912377 9011912377 9017912070 9017912070 9164281245 9164281245 9512101024 9512101028 9512101032 9512101036 9512101038
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 2
48413D - BRACKET, SPRING, NO.2
48413-37060

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37100

BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)

 1
48415C - BRACKET, SPRING, NO.3 LH
48415-37020

BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37100

BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37100

BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)

 1
48418B - BRACKET, SPRING, NO.6
48418-36090

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
48512-37050

BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37260

BU303,343,WU300,340..LHD..WT

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37260

BU303,343,WU300,340..LHD..WT

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37070

BU303,343,WU300,340,XZU300,330,340..LHD

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37060

BU303,343,WU300,340,XZU300,330,340..LHD

 1
51100F - FRAME SUB-ASSY
51002-3V600

BU303,WU300..LHD..WT

 1
51002-3V601

BU303,WU300..LHD..WT

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37080

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.1

 2
51155-37060

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.2

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37080

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.1

 2
51155-37060

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.2

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37080

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.1

 2
51155-37060

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.2

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37080

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.1

 2
51155-37060

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

NO.2

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZU305,345;BU303,343,WU300,340..LHD..WT

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37170

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37100

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060

BU303,WU300,XZU30#,330..WT..(ARL,GCC,GEN,TAIW)

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37010

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW)

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37060

XZU330..80T;BU303,343,WU300,340,XZU305,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37050

XZU330..80T;BU303,343,WU300,340,XZU305,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37080

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,SA,TAIW

 1
Common parts
90119-12377
90179-12070
91642-81245
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038

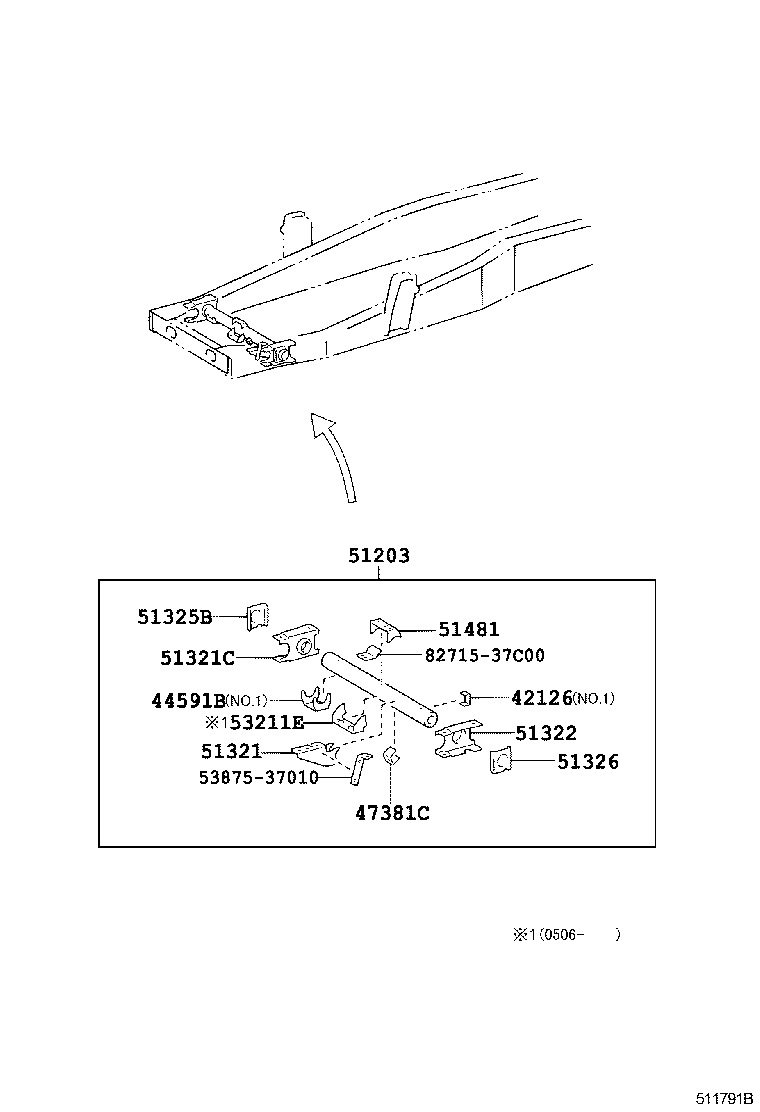

ILLUST NO. 2 OF 2(0312- )WU30#..TS ; (0312- )BU303,343,WU34#,XZU305,307,337,345,347..WT..ARL,G

Click highlighted areas on diagram

PNC 51203

diagram 42126 44591B 47381C 51203 51321 51321C 51322 51325B 51326 51481 53211E 5387537010 8271537C00
Part # Description Qty Price
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37170

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

 1
Common parts
53875-37010
82715-37C00
