BU303L-TBMMS3 (2002)
Toyota Dyna

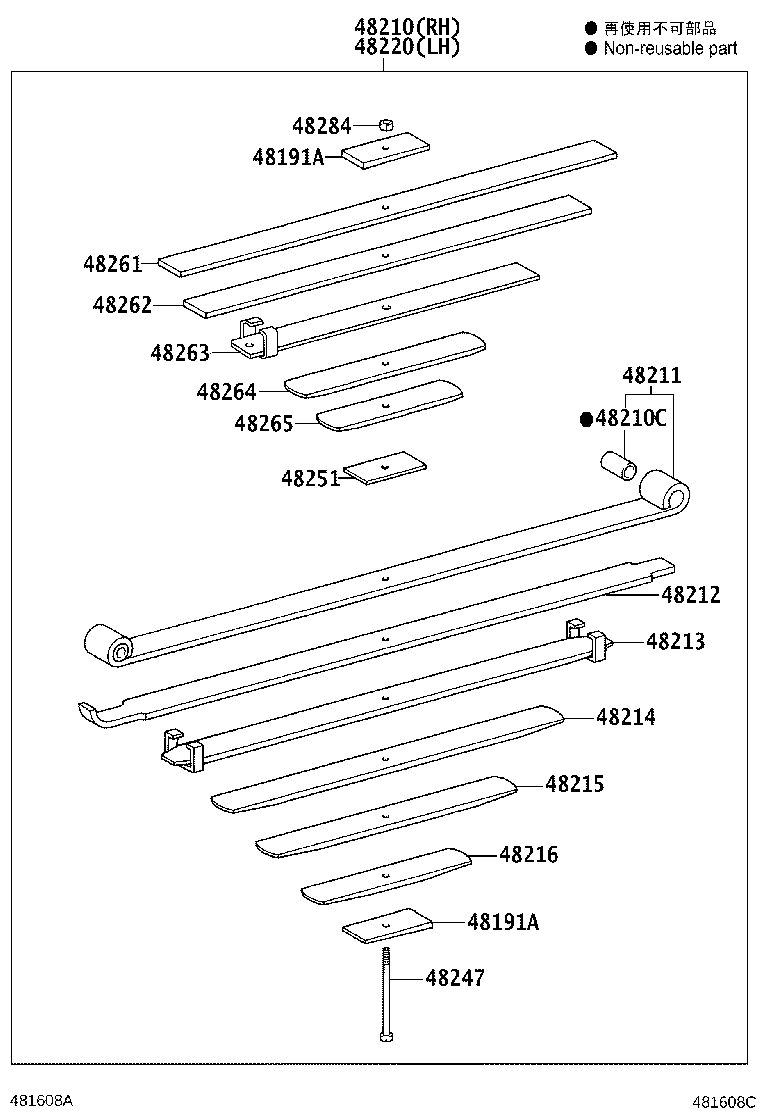

ILLUST NO. 2 OF 2(0212-0610)BU303,343,XZU330..55T,65T..GEN,TAIW ;(0212- )WU30#,34#..WT..GCC,GEN,
MAIN 6+HELPER 5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48247-37560 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48268-37560 |
BU303,343,WU300,340,XZU330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48261-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
4 | ||
| 48262-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48207-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48264-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48265-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
BU303,343,WU300,340,XZU330,340..WT..(GCC,GEN,TAIW) |
2 | ||
ILLUST NO. 2 OF 2(0212-0610)WT..GEN ; (0212- )WU30#,34#..WT..GCC,GEN
MAIN 6+HELPER 6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48247-37560 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48268-37560 |
BU303,343,WU300,340,XZU330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48261-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
4 | ||
| 48262-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
4 | ||
| 48262-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48207-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48264-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37540 |
BU303,343,WU300,340,XZU330..(55T,65T)..(GCC,GEN,TAIW) MAIN 6+HELPER 5-LEAF |
2 | ||
| 48265-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) MAIN 6+HELPER 6-LEAF |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-3V640 |
BU303,343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
BU303,343,WU300,340,XZU330,340..WT..(GCC,GEN,TAIW) |
2 | ||

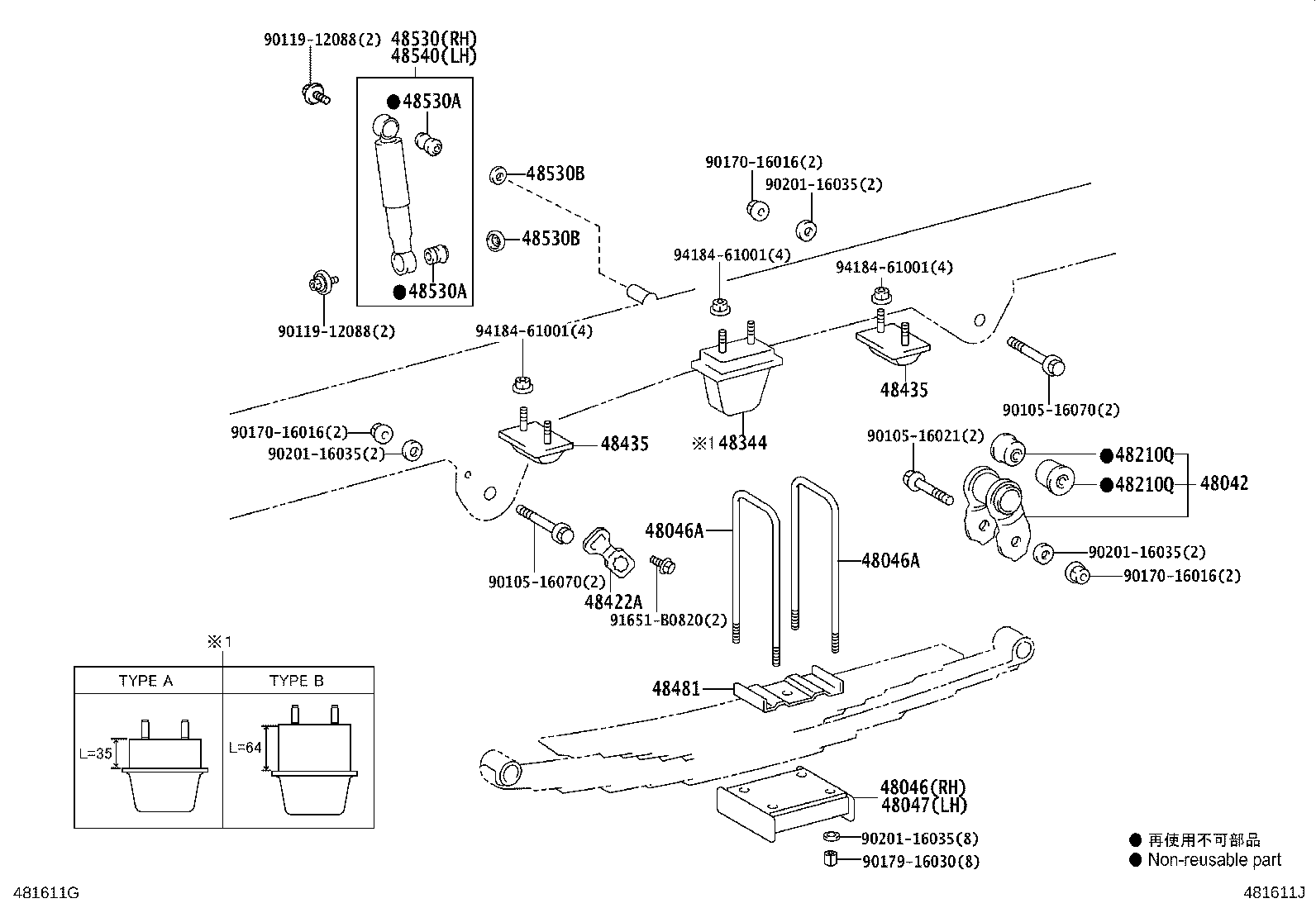

ILLUST NO. 1 OF 2(0212-0610)WT..ARL,GEN ; (0212- )WU30#,34#..WT..GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37170 |
BU303,343,WU300,340..55T..(GCC,GEN) |
1 | ||
| 48473-37180 |
BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
XZU300;BU303,343,WU300,340..55T..(GCC,GEN) L=300 |
4 | ||
| 90117-16040 |
BU303,343,WU300,340,XZU320,330..(55T,65T)..(GCC,GEN,TAIW) L=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
XZU300;BU303,343,WU300,340..55T..(GCC,GEN) L=300 |
4 | ||
| 90117-16040 |
BU303,343,WU300,340,XZU320,330..(55T,65T)..(GCC,GEN,TAIW) L=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37170 |
BU303,343,WU300,340..55T..(GCC,GEN) |
1 | ||
| 48473-37180 |
BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
BU303,343,WU300,340,XZU300,330..(55T,65T)..(GCC,GEN,TAIW) |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37071 |
BU303,343,WU300,340..(48T,55T)..(GCC,GEN) |
2 | ||
| 48481-37081 |
BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80673 |
BU303,343,WU300,340,XZU300,330..(55T,65T)..(GCC,GEN,TAIW) MARK 48531-37010 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80673 |
BU303,343,WU300,340,XZU300,330..(55T,65T)..(GCC,GEN,TAIW) MARK 48531-37010 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
