BU303L-TBMMS3 (2002)
Toyota Dyna

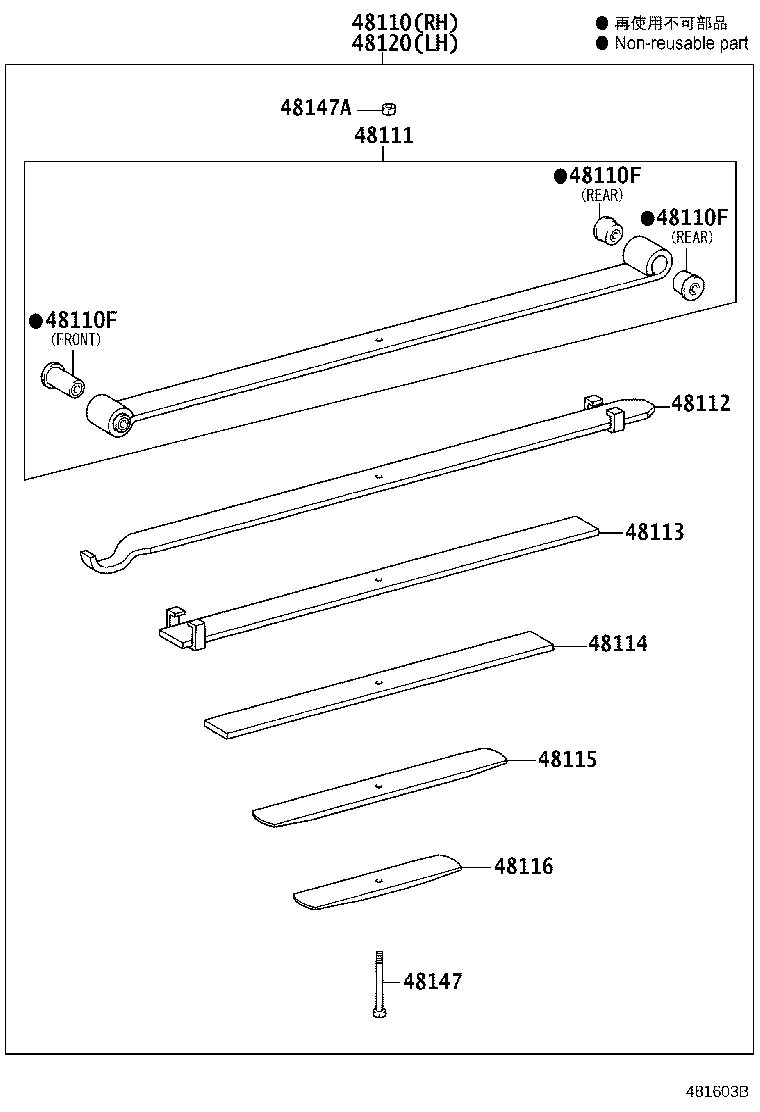

ILLUST NO. 2 OF 2(0212- )55T,65T..GCC,GEN,SA,TAIW
6-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37452 |
BU303,343,WU300,340,XZU300,320,330..LHD..(55T,65T) 6-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48110-37472 |
XZU330..80T;BU303,343,WU300,340,XZU340..LHD..WT 6-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) REAR |
4 | ||
| 90389-16025 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) REAR |
4 | ||
| 90389-16025 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) REAR |
4 | ||
| 90389-16025 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) FRONT |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37452 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48101-37462 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48101-37472 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48101-37482 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48102-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48103-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48103-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48103-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48103-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48104-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48104-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48114-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48114-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48114-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48115-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48115-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48115-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48116-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48116-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48116-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37462 |
BU303,343,WU300,340,XZU300,320,330..LHD..(55T,65T) 6-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48110-37482 |
XZU330..80T;BU303,343,WU300,340,XZU340..LHD..WT 6-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B230 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48147-37270 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48299-27620 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48155-3B470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
ILLUST NO. 2 OF 2(0212- )XZU33#..80T ; (0212- )BU303,343,WU30#,34#,XZU340,347..WT..GCC,GEN,TAI
6-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37452 |
BU303,343,WU300,340,XZU300,320,330..LHD..(55T,65T) 6-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48110-37472 |
XZU330..80T;BU303,343,WU300,340,XZU340..LHD..WT 6-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) REAR |
4 | ||
| 90389-16025 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) REAR |
4 | ||
| 90389-16025 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) REAR |
4 | ||
| 90389-16025 |
BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) FRONT |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37452 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48101-37462 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48101-37472 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48101-37482 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48102-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48103-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48103-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48103-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48103-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48104-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48104-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48114-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48114-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48114-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48115-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48115-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48115-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48116-37480 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48116-37461 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,DRIVER SIDE |
1 | ||
| 48116-37451 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37462 |
BU303,343,WU300,340,XZU300,320,330..LHD..(55T,65T) 6-LEAF,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48110-37482 |
XZU330..80T;BU303,343,WU300,340,XZU340..LHD..WT 6-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B230 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48147-37270 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48299-27620 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48155-3B470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48117-37270 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) UPPER |
2 | ||
| 48117-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) LOWER |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48117-37270 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) UPPER |
2 | ||
| 48117-37470 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) LOWER |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48115-37510 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48115-37510 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48116-37270 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) |
2 | ||

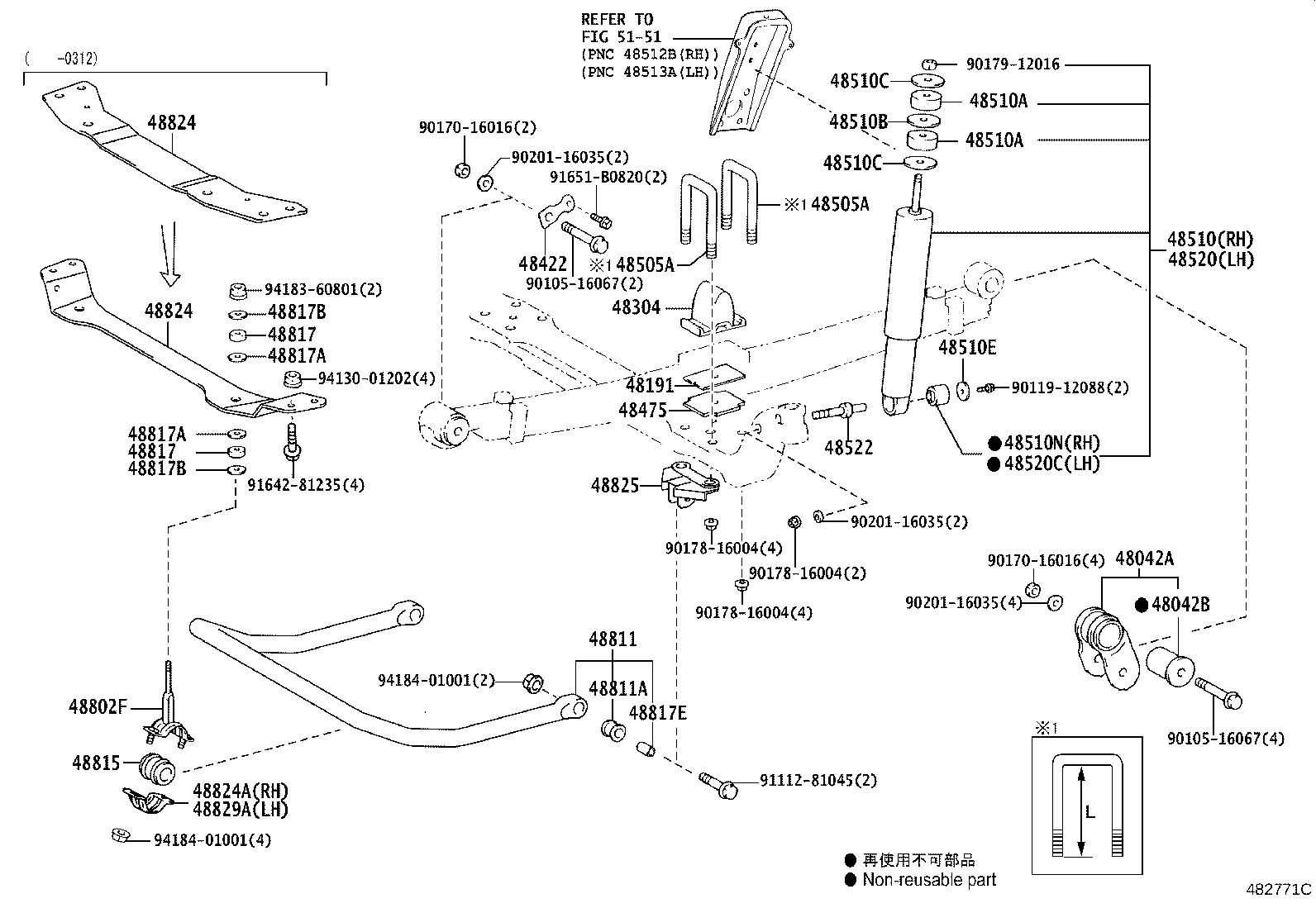

ILLUST NO. 1 OF 2(0212- )ARL,GCC,GEN,SA,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37110 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W(PNC 48475) |
2 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W/O(PNC 48475) |
4 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W(PNC 48475) |
2 | ||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W/O(PNC 48475) |
4 | ||
| 90117-16073 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=160,W(PNC 48475) |
2 | ||
| 90117-16071 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=110,W(PNC 48475) |
2 | ||
| 90117-16066 |
BU303,343,WU300,340..GCC,GEN L=120 |
4 | ||
| 90117-16075 |
BU303,343,WU300,340..WT..(GCC,GEN) L=170 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W(PNC 48475) |
2 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W/O(PNC 48475) |
4 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W(PNC 48475) |
2 | ||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W/O(PNC 48475) |
4 | ||
| 90117-16073 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=160,W(PNC 48475) |
2 | ||
| 90117-16071 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=110,W(PNC 48475) |
2 | ||
| 90117-16066 |
BU303,343,WU300,340..GCC,GEN L=120 |
4 | ||
| 90117-16075 |
BU303,343,WU300,340..WT..(GCC,GEN) L=170 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80079 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW) MARK 48511-37060 |
1 | ||
| 48511-80119 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) MARK 48511-37220 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80079 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW) MARK 48511-37060 |
1 | ||
| 48511-80119 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) MARK 48511-37220 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16004 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
ILLUST NO. 1 OF 2(0212- )ARL,GCC,GEN,SA
W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37110 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W(PNC 48475) |
2 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W/O(PNC 48475) |
4 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W(PNC 48475) |
2 | ||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W/O(PNC 48475) |
4 | ||
| 90117-16073 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=160,W(PNC 48475) |
2 | ||
| 90117-16071 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=110,W(PNC 48475) |
2 | ||
| 90117-16066 |
BU303,343,WU300,340..GCC,GEN L=120 |
4 | ||
| 90117-16075 |
BU303,343,WU300,340..WT..(GCC,GEN) L=170 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W(PNC 48475) |
2 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W/O(PNC 48475) |
4 | ||
| 90117-16064 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=100,W(PNC 48475) |
2 | ||
| 90117-16065 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=150,W/O(PNC 48475) |
4 | ||
| 90117-16073 |
XZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW) L=160,W(PNC 48475) |
2 | ||
| 90117-16071 |
BU303,343,WU300,340,XZU300,320,330..(55T,65T)..(GCC,GEN,TAIW) L=110,W(PNC 48475) |
2 | ||
| 90117-16066 |
BU303,343,WU300,340..GCC,GEN L=120 |
4 | ||
| 90117-16075 |
BU303,343,WU300,340..WT..(GCC,GEN) L=170 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80079 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW) MARK 48511-37060 |
1 | ||
| 48511-80119 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) MARK 48511-37220 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80079 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW) MARK 48511-37060 |
1 | ||
| 48511-80119 |
BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) MARK 48511-37220 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37030 |
BU30#,34#,WU300,340..ARL,GCC,GEN,SA |
2 | ||
| 48802-37070 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-37030 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90385-13009 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
2 | ||
| 48815-37040 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN,SA |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
4 | ||
| 48817E - SPACER(FOR STABILIZER BAR) | ||||
| 90560-10044 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-37130 |
BU30#,34#,WU300,340..ARL,GCC,GEN,SA |
1 | ||
| 48824-37161 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 48824-37160 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN,SA |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-37130 |
BU30#,34#,WU300,340..ARL,GCC,GEN,SA |
1 | ||
| 48824-37161 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 48824-37160 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN,SA |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-37060 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37011 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
2 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-37060 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16004 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91642-81235 | ||||
| 91651-B0820 | ||||
| 94130-01202 | ||||
| 94183-60801 | ||||
| 94184-01001 | ||||
| Linked diagrams | ||||
| 5151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
