Toyota Dyna BU303 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
DYNA
BU303L-TBMMS3 (2002)
4708 - BRAKE TUBE & CLAMP

BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

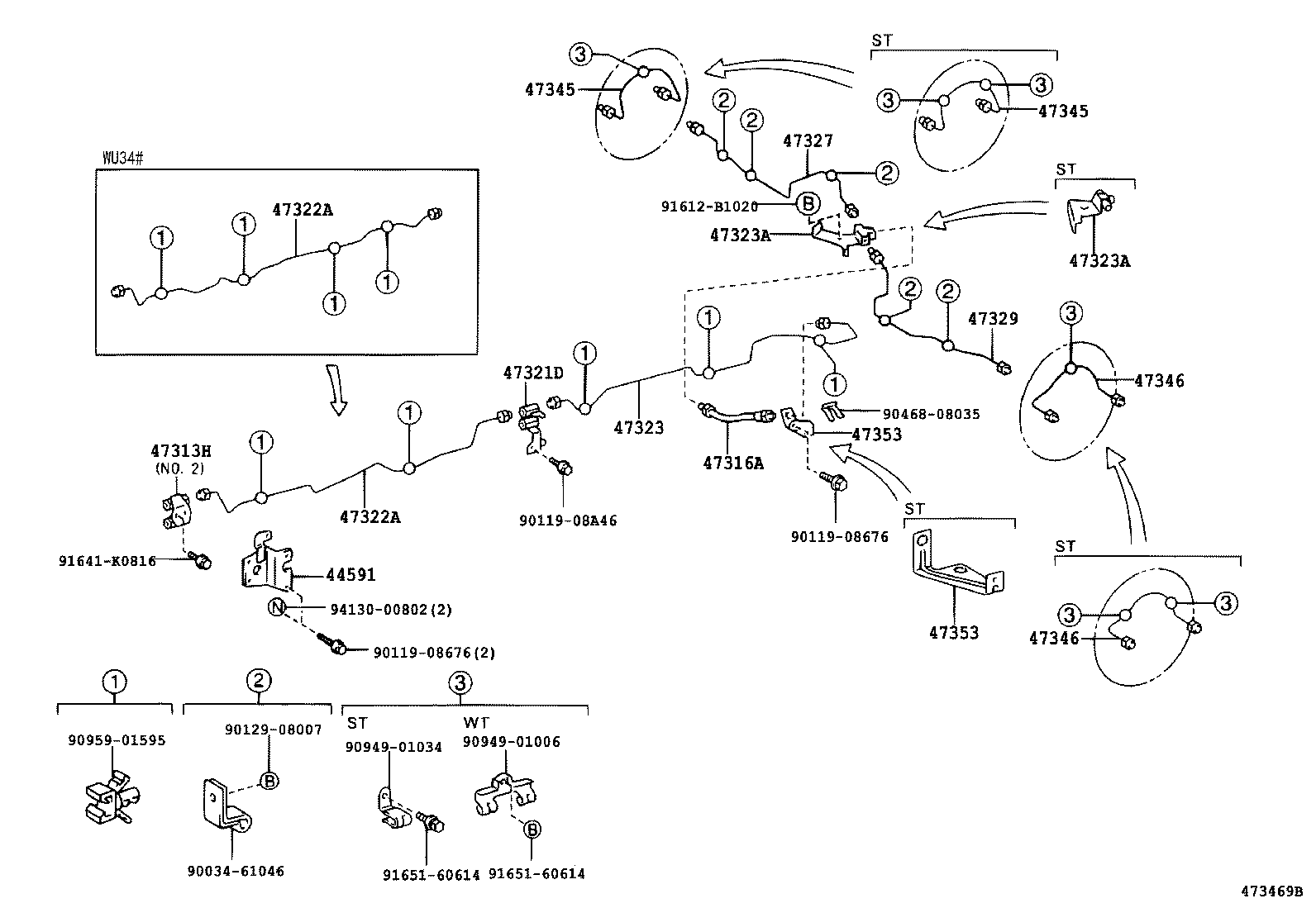

ILLUST NO. 4 OF 4(0212- )BU30#,34#,WU30#,34#,XZU30#,33#,340,345,347..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-37010	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	09/2004 - 10/2006	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-37090	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47920 - SPRING ASSY, LOAD SENSING
47920-37070	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	2
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-37060	BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94130-00802
94612-10800

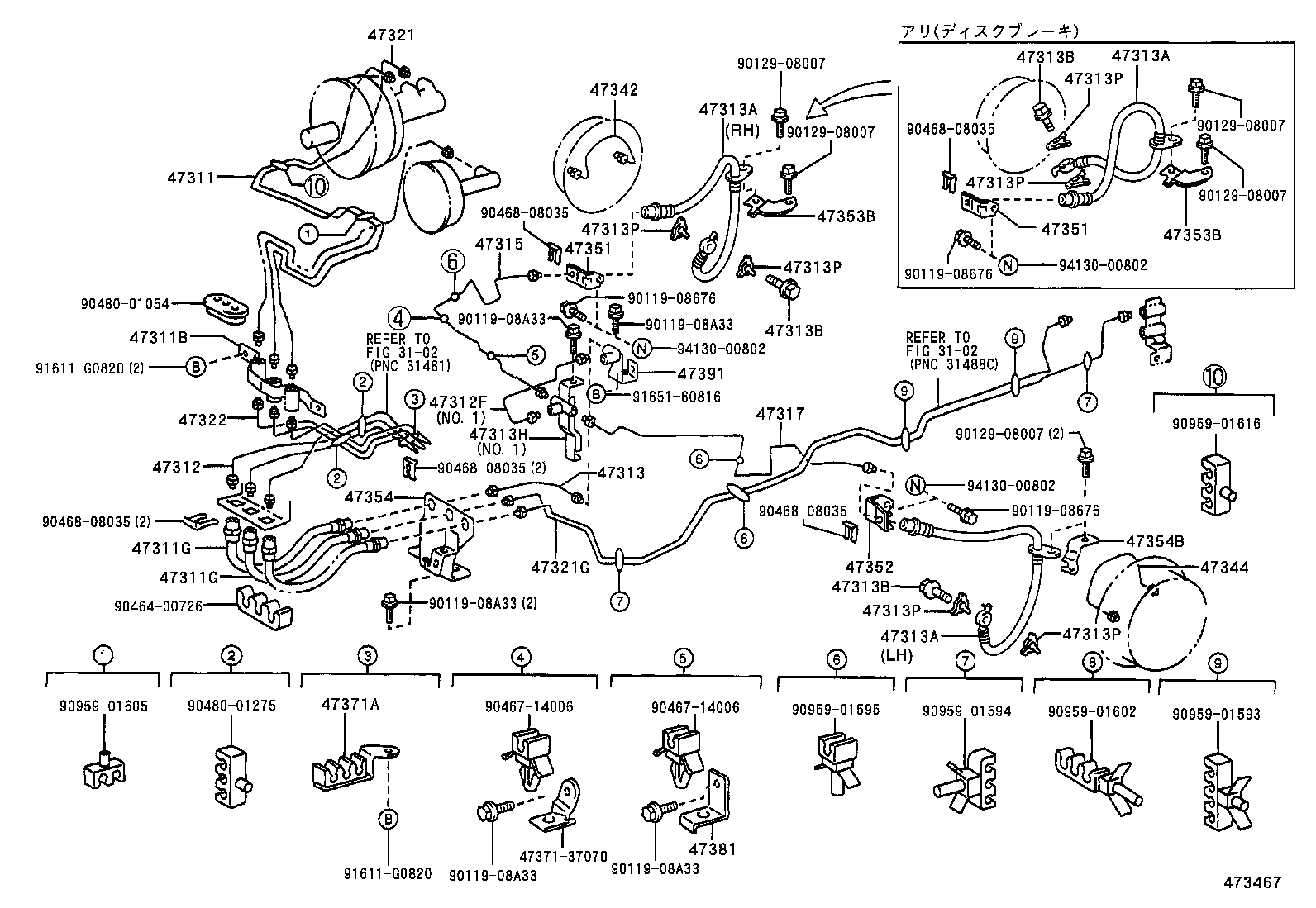

ILLUST NO. 1 OF 4(0212-0610)BU303,343,WU300,340,XZU300,330,340..LHD

Click highlighted areas on diagram

W(LSPV) & W/O(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37171	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37210	BU303,343,WU300,340,XZU300,330,340..LHD	12/2002 - 10/2006	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37070	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU303,WU300,XZU300..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
47312-37220	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37250	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),LH	12/2002 - 10/2006	1
90947-02B68	BU303,343,WU300,340..GCC,GEN LH	12/2002 - 10/2006	1
90947-02B67	BU303,343,WU300,340..GCC,GEN RH	12/2002 - 10/2006	1
90947-02A72	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),RH	12/2002 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),LH	12/2002 - 10/2006	1
90947-02B68	BU303,343,WU300,340..GCC,GEN LH	12/2002 - 10/2006	1
90947-02B67	BU303,343,WU300,340..GCC,GEN RH	12/2002 - 10/2006	1
90947-02A72	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),RH	12/2002 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),LH	12/2002 - 10/2006	1
90947-02B68	BU303,343,WU300,340..GCC,GEN LH	12/2002 - 10/2006	1
90947-02B67	BU303,343,WU300,340..GCC,GEN RH	12/2002 - 10/2006	1
90947-02A72	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),RH	12/2002 - 10/2006	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
90904-13053	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37151	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
47315-37490	BU303,343,WU300,340..LHD..WT W(DISC BRAKE)	12/2002 - 10/2006	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37470	BU303,343,WU300,340..LHD..WT W(DISC BRAKE)	12/2002 - 10/2006	1
47317-37171	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37172	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37210	BU303,343,WU300,340,XZU300,330,340..LHD	12/2002 - 10/2006	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37210	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-37040	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-37040	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-37020	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-37020	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37200	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47351-37130	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37200	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47351-37130	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37090	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47352-37050	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47353-37230	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47353-37230	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47351-37260	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47354-37220	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37020	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37200	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47391 - WAY, BRAKE TUBE
47391-37170	BU303,343..LHD	12/2002 - 10/2006	1
90413-12007	BU303,343,WU300,340..LHD W(LSPV)	12/2002 - 10/2006	1
Common parts
47371-37070
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
91651-60816
94130-00802
Linked diagrams
3102

ILLUST NO. 1 OF 4(0212-0610)BU303,343,WU300,340..LHD

Click highlighted areas on diagram

W/O(ABS & LSPV)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37171	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37070	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU303,WU300,XZU300..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
47312-37220	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37250	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),LH	12/2002 - 10/2006	1
90947-02B68	BU303,343,WU300,340..GCC,GEN LH	12/2002 - 10/2006	1
90947-02B67	BU303,343,WU300,340..GCC,GEN RH	12/2002 - 10/2006	1
90947-02A72	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),RH	12/2002 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),LH	12/2002 - 10/2006	1
90947-02B68	BU303,343,WU300,340..GCC,GEN LH	12/2002 - 10/2006	1
90947-02B67	BU303,343,WU300,340..GCC,GEN RH	12/2002 - 10/2006	1
90947-02A72	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),RH	12/2002 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),LH	12/2002 - 10/2006	1
90947-02B68	BU303,343,WU300,340..GCC,GEN LH	12/2002 - 10/2006	1
90947-02B67	BU303,343,WU300,340..GCC,GEN RH	12/2002 - 10/2006	1
90947-02A72	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE),RH	12/2002 - 10/2006	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
90904-13053	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37151	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
47315-37490	BU303,343,WU300,340..LHD..WT W(DISC BRAKE)	12/2002 - 10/2006	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37470	BU303,343,WU300,340..LHD..WT W(DISC BRAKE)	12/2002 - 10/2006	1
47317-37171	BU303,343,WU300,340..LHD	12/2002 - 10/2006	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37172	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37210	BU303,343,WU300,340,XZU300,330,340..LHD	12/2002 - 10/2006	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37210	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-37040	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-37020	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37200	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47351-37130	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37200	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47351-37130	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37090	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47352-37050	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47353-37230	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47353-37230	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47351-37260	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BU303,343,WU300,340..WT..(GCC,GEN) W(DISC BRAKE)	12/2002 - 10/2006	1
47354-37220	BU303,343,WU300,340..GCC,GEN W(DRUM BRAKE)	12/2002 - 10/2006	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37020	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37200	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
47391 - WAY, BRAKE TUBE
47391-37170	BU303,343..LHD	12/2002 - 10/2006	1
90413-12007	BU303,343,WU300,340..LHD W(LSPV)	12/2002 - 10/2006	1
Common parts
47371-37070
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
91651-60816
94130-00802
Linked diagrams
3102

ILLUST NO. 2 OF 4(0212-0610)BU30#,34#,WU300,340,XZU300,330,340..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

W(LSPV) & W/O(ABS)

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44501-37010	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU303,WU300,XZU300..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
47312-37220	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU303,WU300,XZU300..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
47312-37220	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU303,WU300,XZU300..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
47312-37220	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
90904-13053	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37180	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229	BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU303,WU300,XZU300..GCC,GEN,TAIW	12/2002 - 10/2006	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU303,WU300,XZU300..GCC,GEN,TAIW	12/2002 - 10/2006	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU303,WU300,XZU300..GCC,GEN,TAIW	12/2002 - 10/2006	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37200	BU303,343,WU300,340..WT..(GCC,GEN) W(LSPV)	12/2002 - 10/2006	1
47323-37440	BU303,343..WT..GEN	12/2002 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	09/2002 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	09/2002 - 10/2006	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37210	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37350	BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION	12/2002 - 10/2006	1
47327-37570	BU303,343,WU300,340..55T..(GCC,GEN)	12/2002 - 10/2006	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37210	BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION	12/2002 - 10/2006	1
47329-37450	BU303,343,WU300,340..55T..(GCC,GEN)	12/2002 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37240	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37240	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
Common parts
90034-61046
90119-08676
90119-08A33
90119-08A46
90129-08007
90464-00778
90464-00833
90468-08035
90949-01006
90949-01034
90959-01594
90959-01595
91612-B1020
91651-60614
94130-00802

ILLUST NO. 2 OF 4(0212- )GCC,GEN

Click highlighted areas on diagram

W/O(ABS & LSPV)

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44501-37010	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	12/2002 - 10/2006	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.2	12/2002 - 10/2006	1
90904-13053	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 10/2006	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229	BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW	12/2002 - 10/2006	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU303,WU300,XZU300..GCC,GEN,TAIW	12/2002 - 10/2006	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU303,WU300,XZU300..GCC,GEN,TAIW	12/2002 - 10/2006	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37200	BU303,343,WU300,340..WT..(GCC,GEN) W(LSPV)	12/2002 - 10/2006	1
47323-37440	BU303,343..WT..GEN	12/2002 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	09/2002 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	09/2002 - 10/2006	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37350	BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION	12/2002 - 10/2006	1
47327-37570	BU303,343,WU300,340..55T..(GCC,GEN)	12/2002 - 10/2006	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37210	BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION	12/2002 - 10/2006	1
47329-37450	BU303,343,WU300,340..55T..(GCC,GEN)	12/2002 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)	09/2002 - 10/2006	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37240	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37240	BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)	12/2002 - 10/2006	1
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90468-08035
90949-01006
90949-01034
90959-01595
91612-B1020
91641-K0816
91651-60614
94130-00802

BU303L-TBMMS3 (2002)

ILLUST NO. 4 OF 4(0212- )BU30#,34#,WU30#,34#,XZU30#,33#,340,345,347..ARL,GCC,GEN,TAIW

ILLUST NO. 1 OF 4(0212-0610)BU303,343,WU300,340,XZU300,330,340..LHD

ILLUST NO. 1 OF 4(0212-0610)BU303,343,WU300,340..LHD

ILLUST NO. 2 OF 4(0212-0610)BU30#,34#,WU300,340,XZU300,330,340..ARL,GCC,GEN,TAIW

ILLUST NO. 2 OF 4(0212- )GCC,GEN

Part Price Details
