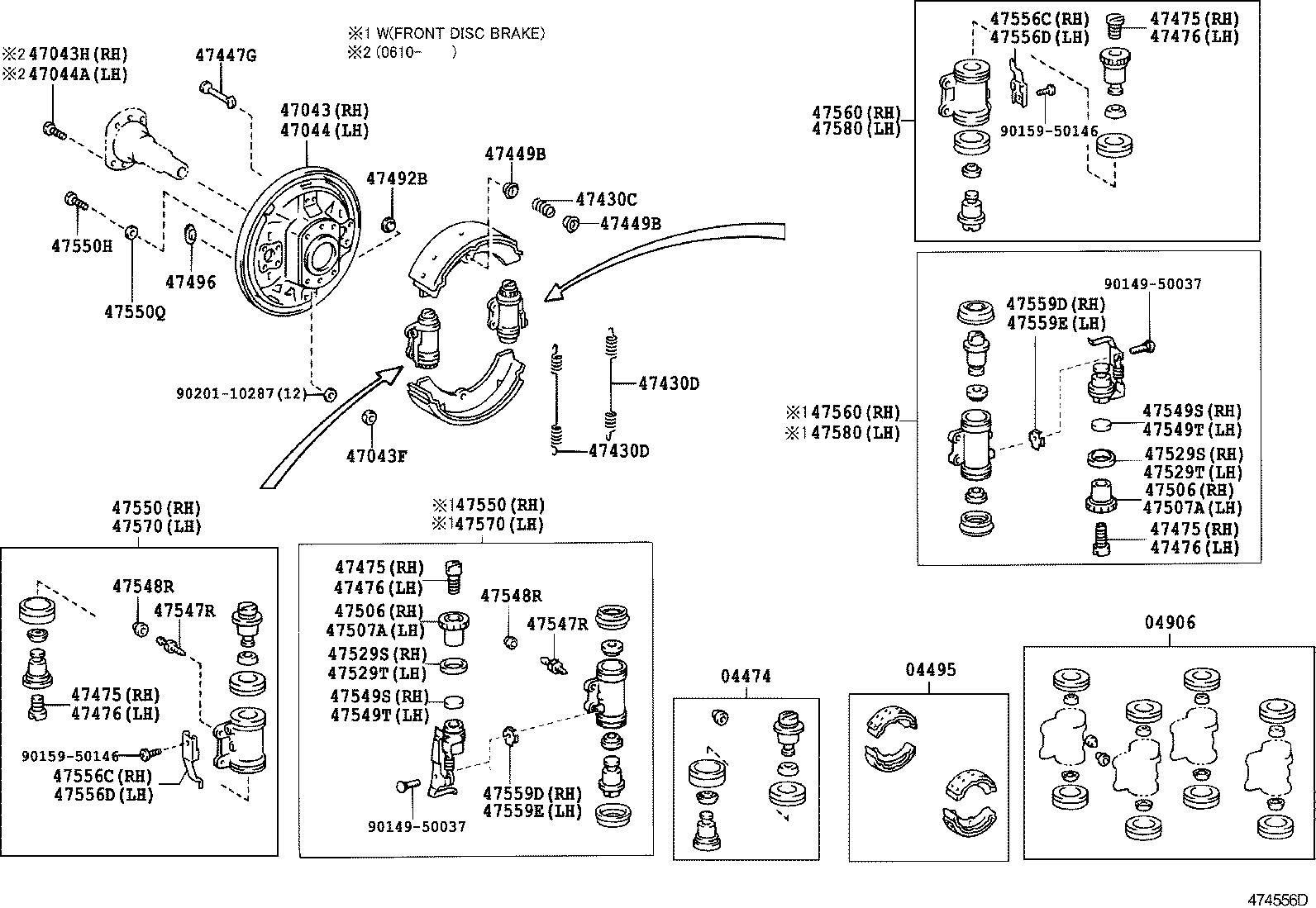

BU303L-TBMMS3 (2002)
Toyota Dyna
(0209-0410)XZU300,320,330..55T,65T ; (0209- )55T,65T..DCRTJ,DSL..GCC,GEN,IDN ; (
W(FRONT DRUM BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36041 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE),RH |
2 | ||
| 04474-36030 |
BU303,343,WU300..WT..(GCC,GEN);WU340,XZU342..(55T,65T)..(GCC,IDN) LH |
2 | ||
| 04474-36020 |
BU303,343,WU300..WT..(GCC,GEN);WU340,XZU342..(55T,65T)..(GCC,IDN) RH |
2 | ||
| 04474-36051 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE),LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36290 |
BU303,343,WU300..GCC,GEN;WU340,XZU342..(55T,65T)..(GCC,IDN) MARK NBK LN519 |
1 | ||
| 04495-37040 |
BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) MARK NBK D9227 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36250 |
BU303,343,WU300..WT..(GCC,GEN);WU340,XZU342..(55T,65T)..(GCC,IDN) |
2 | ||
| 04906-36181 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
4 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36160 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47043-37060 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37060 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47044-36160 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
WU340..GCC;BU303,343,WU300,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,IDN,TAIW)..(T3,TS) |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47553-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47553-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47554-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47554-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27020 |
BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37112 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47550-37120 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47560-37082 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37072 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47570-37080 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU303,343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 47580-37072 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(0212- )ARL,GCC,GEN,SA..T3,TS ; (0410- )XZU337,347 ; (0410- )XZU300,307,32
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36041 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE),RH |
2 | ||
| 04474-36030 |
BU303,343,WU300..WT..(GCC,GEN);WU340,XZU342..(55T,65T)..(GCC,IDN) LH |
2 | ||
| 04474-36020 |
BU303,343,WU300..WT..(GCC,GEN);WU340,XZU342..(55T,65T)..(GCC,IDN) RH |
2 | ||
| 04474-36051 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE),LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36290 |
BU303,343,WU300..GCC,GEN;WU340,XZU342..(55T,65T)..(GCC,IDN) MARK NBK LN519 |
1 | ||
| 04495-37040 |
BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) MARK NBK D9227 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36250 |
BU303,343,WU300..WT..(GCC,GEN);WU340,XZU342..(55T,65T)..(GCC,IDN) |
2 | ||
| 04906-36181 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
4 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36160 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47043-37060 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37060 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47044-36160 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
WU340..GCC;BU303,343,WU300,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,IDN,TAIW)..(T3,TS) |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47553-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47553-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47553-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47553-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47554-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47554-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47554-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
2 | ||
| 47554-36060 |
BU343;BU303,WU300,340..GCC,GEN |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
8 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36020 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36020 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36020 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36020 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27020 |
BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27020 |
BU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU343,WU300..GCC,GEN,IDN;BU303,WU340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37091 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37091 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37091 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37091 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37112 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47550-37120 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37112 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47550-37120 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU303,343,WU300,340..GCC,GEN |
2 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47560-37082 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47560-37082 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37072 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47570-37080 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37072 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47570-37080 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DRUM BRAKE) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU303,343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 47580-37072 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU303,343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 47580-37072 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
