BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )BU30#,34#,WU30#,34#,XZU305,307,327,337,345..55T,65T..ARL,GCC,GEN,SA,TAIW

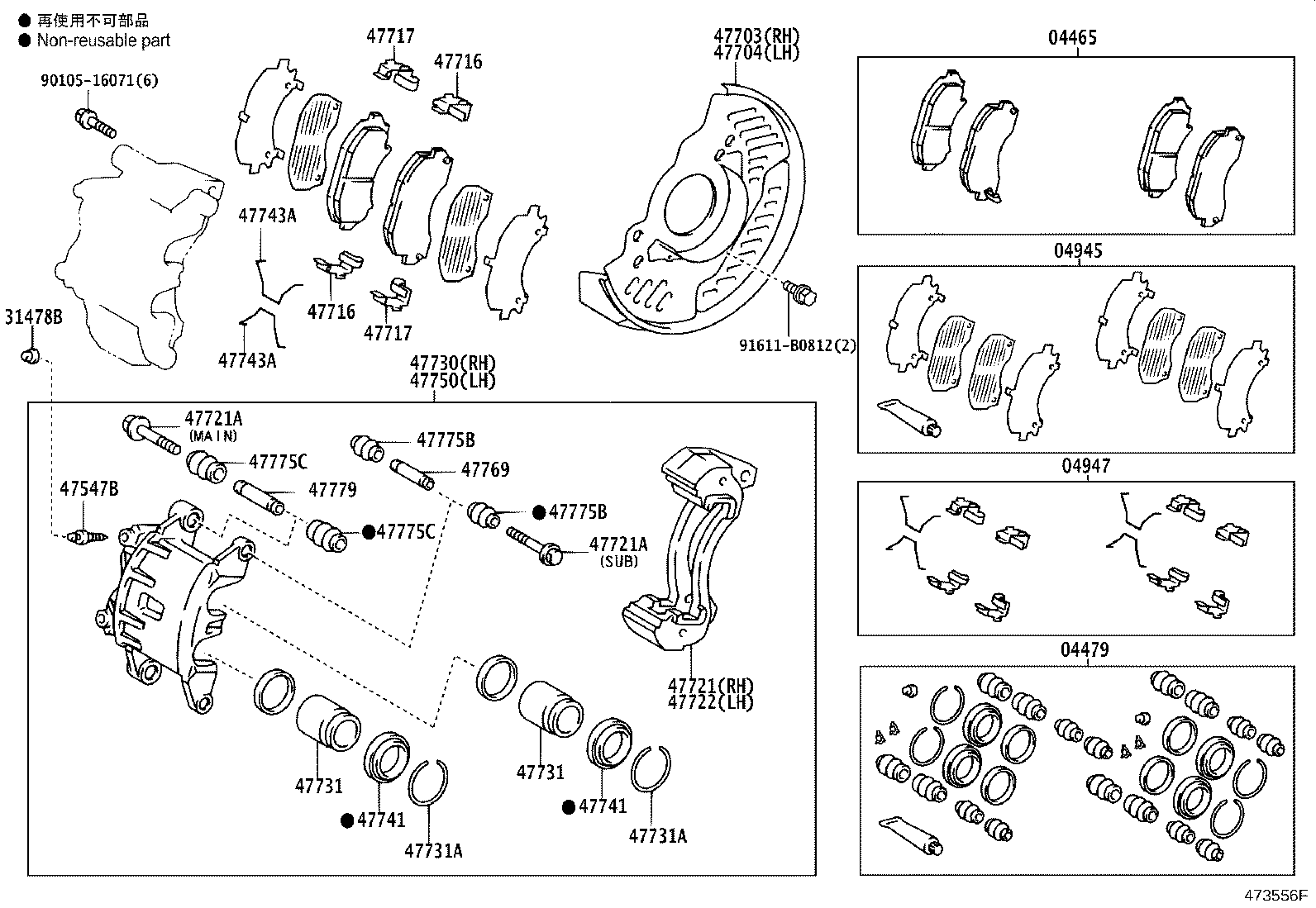

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731 47731A 47731A 47741 47741 47743A 47743A 47750 47769 47775B 47775B 47775C 47775C 47779 9010516071 91611B0812
Part # Description Qty Price
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37030

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)..(T3,TS)

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08B87

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

*8-1.25PX59-27,SUB PIN SIDE

 4
90119-12256

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

*12-1.25PX75-30,MAIN PIN SIDE

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08B87

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

*8-1.25PX59-27,SUB PIN SIDE

 4
90119-12256

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

*12-1.25PX75-30,MAIN PIN SIDE

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)..(T3,TS)

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37030

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)..(T3,TS)

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37030

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)..(T3,TS)

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 8
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

BU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)

 4
Common parts
90105-16071
91611-B0812
