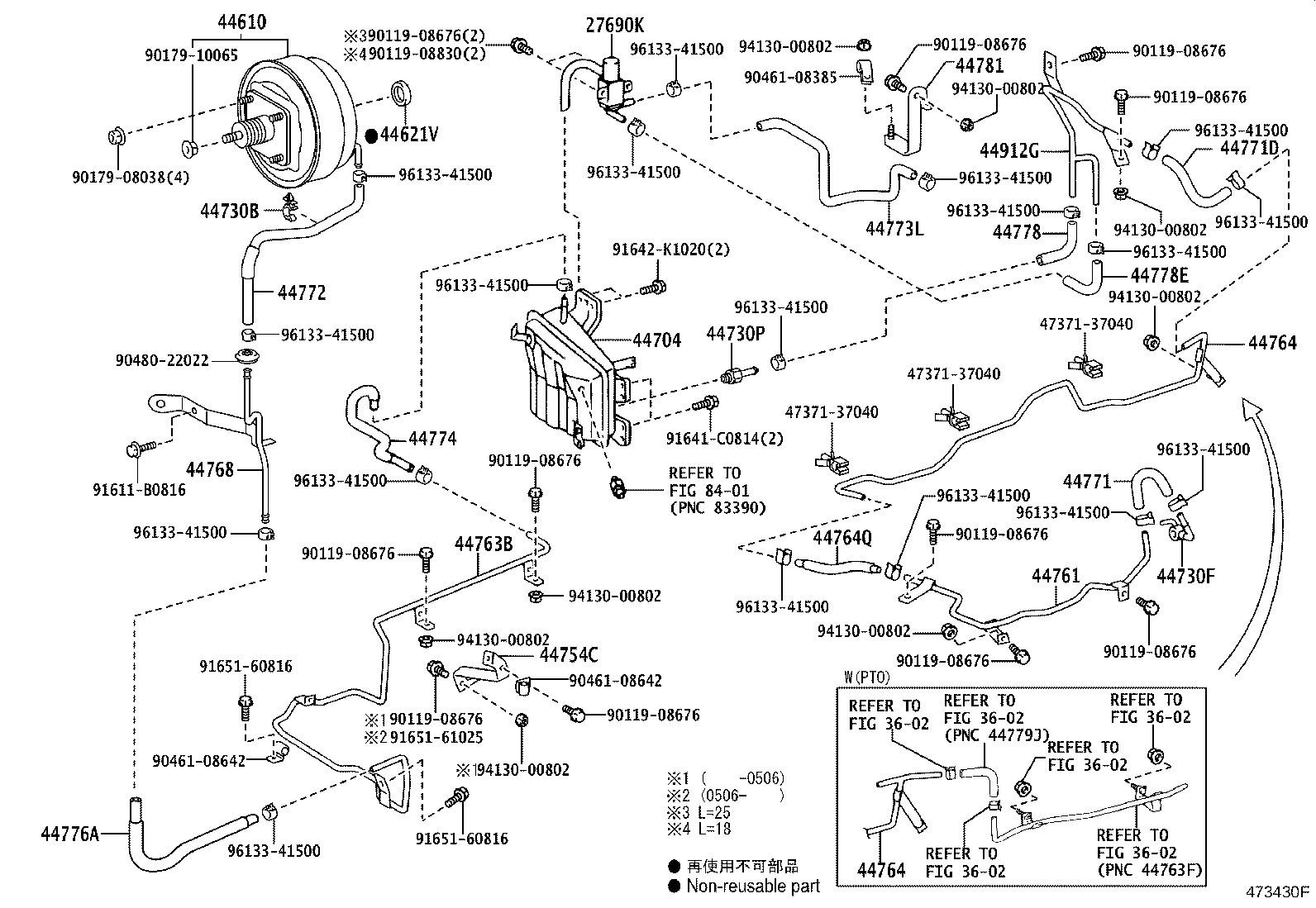

BU303L-TBMMS3 (2002)
Toyota Dyna
(0212-0610)BU303,343..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
N04C,S05C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,34# |
1 | ||
| 27690-78022 |
S05C,W04D,14B,15BFTE..BU30#,34#,WU300,340,XZU300,320,330,34# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN W(ABS) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36050 |
BU303,343,WU300,340..GCC,GEN W(FRONT DRUM BRAKE) |
1 | ||
| 44621-36070 |
BU303,343,WU300,340..WT..(GCC,GEN) W(FRONT DISC BRAKE) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37070 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| 44704-37071 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44597-37021 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09178 |
BU303,343..GEN |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37020 |
BU303,343,WU300,340,XZU300,330,340..LHD |
1 | ||
| 44754-37210 |
BU303,343,WU300,340,XZU300,330,340..LHD |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37260 |
BU303,343..GEN |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37550 |
BU303,343,WU300,340..LHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37382 |
BU343..GEN;BU303..IV3..TS;BU303..LHD..WT..CBU W(PTO) |
1 | ||
| 44764-37312 |
BU303,343..GEN W/O(PTO) |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37382 |
BU343..GEN;BU303..IV3..TS;BU303..LHD..WT..CBU W(PTO) |
1 | ||
| 44764-37312 |
BU303,343..GEN W/O(PTO) |
1 | ||
| 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) | ||||
| 44771-37440 |
BU303,343..GEN |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37120 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37510 |
BU303,343..GEN |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37380 |
BU303,343..GEN |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37100 |
BU303,343,WU300,340..LHD |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37060 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
BU303,343,WU300,340,XZU300,320,330..(48T,55T,65T)..(GCC,GEN,SA,TAIW) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37190 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37020 |
BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37890 |
BU303,343..GEN |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08385 | ||||
| 90461-08642 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 91641-C0814 | ||||
| 91642-K1020 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3602 | ||||
| 8401 | ||||
