Toyota Dyna BU303 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
GR
DYNA
BU303L-TBMMS3 (2002)
4601 - PARKING BRAKE & CABLE

BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

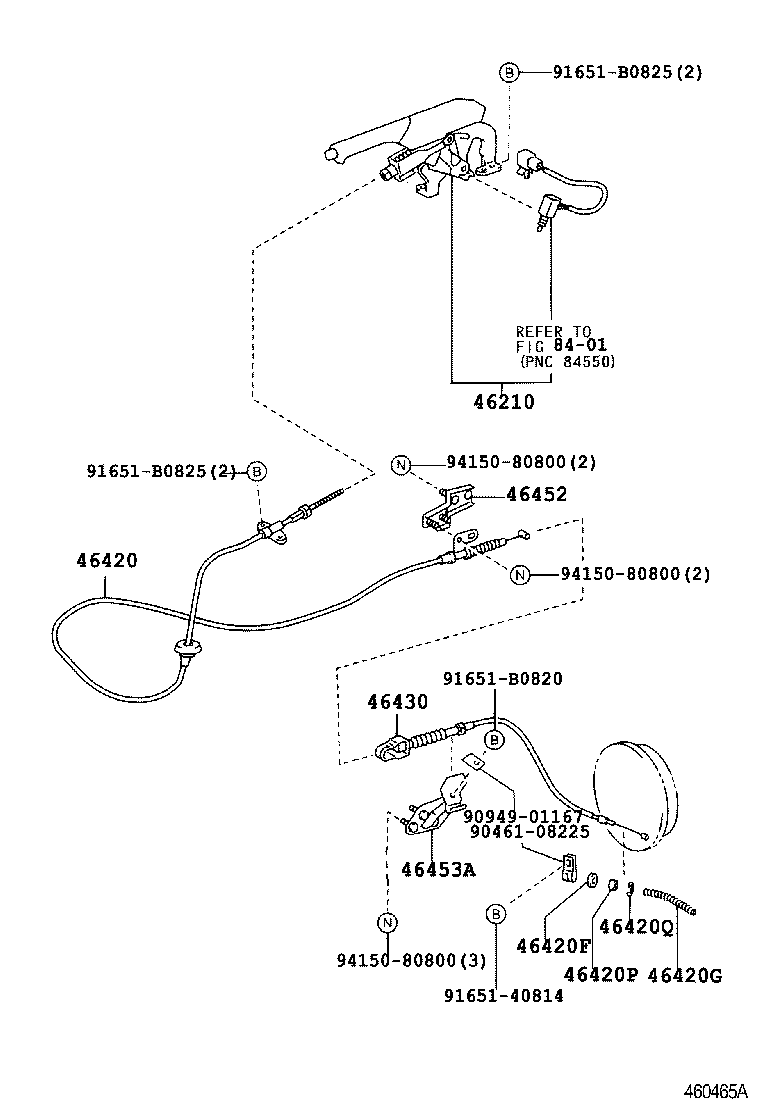

ILLUST NO. 1 OF 2(0209-0610)GCC ; (0209-0610)BU30#,34# ; (0209-0712)WU300,340..RHD..IV3

Click highlighted areas on diagram

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-37032B0	BU303,343,WU300,340,XZU300,320,330,340..LHD DK.CHARCOAL,TRIM1#	12/2002 - 10/2006	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37181	BU303,343,WU300,340,XZU300,330,340..LHD	12/2002 - 10/2006	1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001	BU30#,34#,WU300,340,XZU300,320,330..48T,55T,65T,75T	09/2002 - 11/2003	1
90303-10001	BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)	11/2003 - 10/2006	1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14164	XZU300;BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	11/2003 - 10/2006	1
90501-14164	XZU300;BU30#,34#,WU300,340..(48T,55T)..(ARL,GCC,GEN,SA)	12/2002 - 11/2003	1
46420P - SPACER, PARKING BRAKE
90560-09045	XZU300;BU30#,34#,WU300,340..(48T,55T)..(ARL,GCC,GEN,SA)	12/2002 - 11/2003	1
90560-09045	XZU300;BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	11/2003 - 10/2006	1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700	BU30#,34#,WU300,340,XZU300,320,330..48T,55T,65T,75T	09/2002 - 11/2003	1
96160-00700	BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)	11/2003 - 10/2006	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37480	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37020	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37070	XZU342;BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
Common parts
90461-08225
90949-01167
91651-40814
91651-B0820
91651-B0825
94150-80800
Linked diagrams
8401

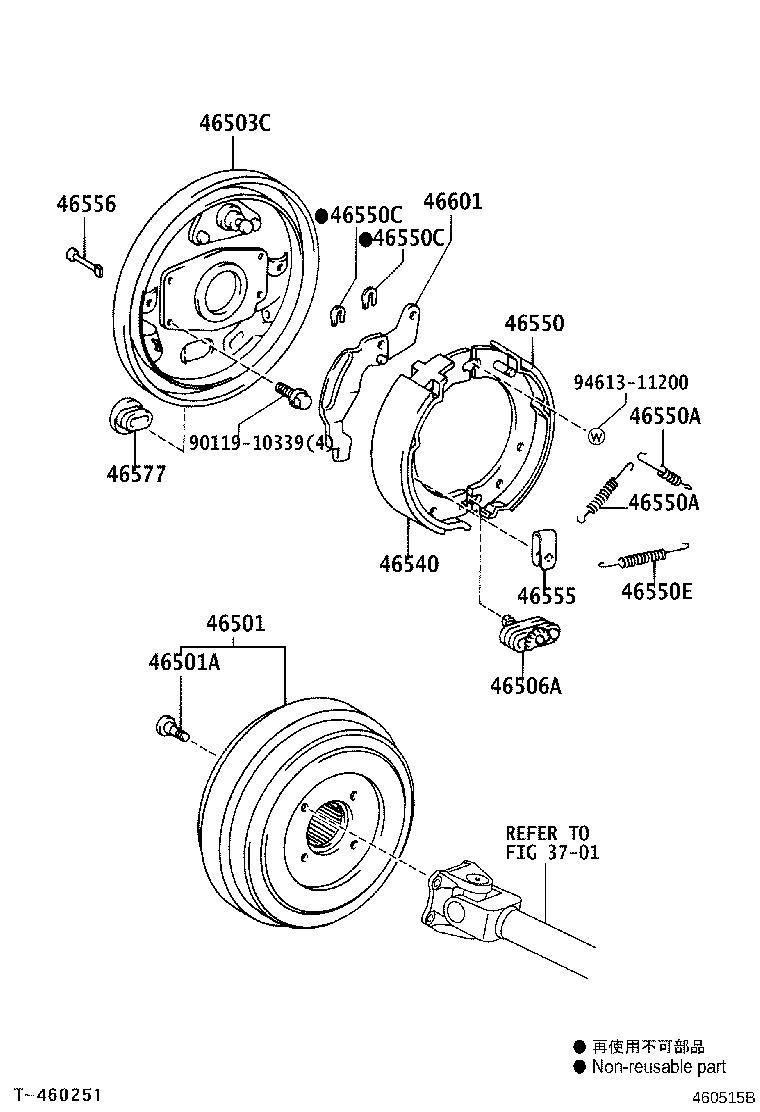

ILLUST NO. 2 OF 2(0212-0610)BU30#,34#,WU300,340..48T,55T..ARL,GCC,GEN ; (0212-0712)SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-36190	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-37020	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE
46506-36020	XZU300;BU30#,34#,WU300,340..(48T,55T)..(ARL,GCC,GEN,SA)	12/2002 - 11/2003	1
46506-36020	XZU300;BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	11/2003 - 10/2006	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-25010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-25010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	3
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	3
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14048	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-35010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-35010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46577 - COVER, ADJUSTING CAM HOLE
46577-36010	XZU320,330..65T;BU303,343,WU300,340,XZU305,345..(48T,55T)..(ARL,GCC,GEN)	09/2002 - 10/2006	1
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-25011	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
Common parts
90119-10339
94613-11200
Linked diagrams
3701

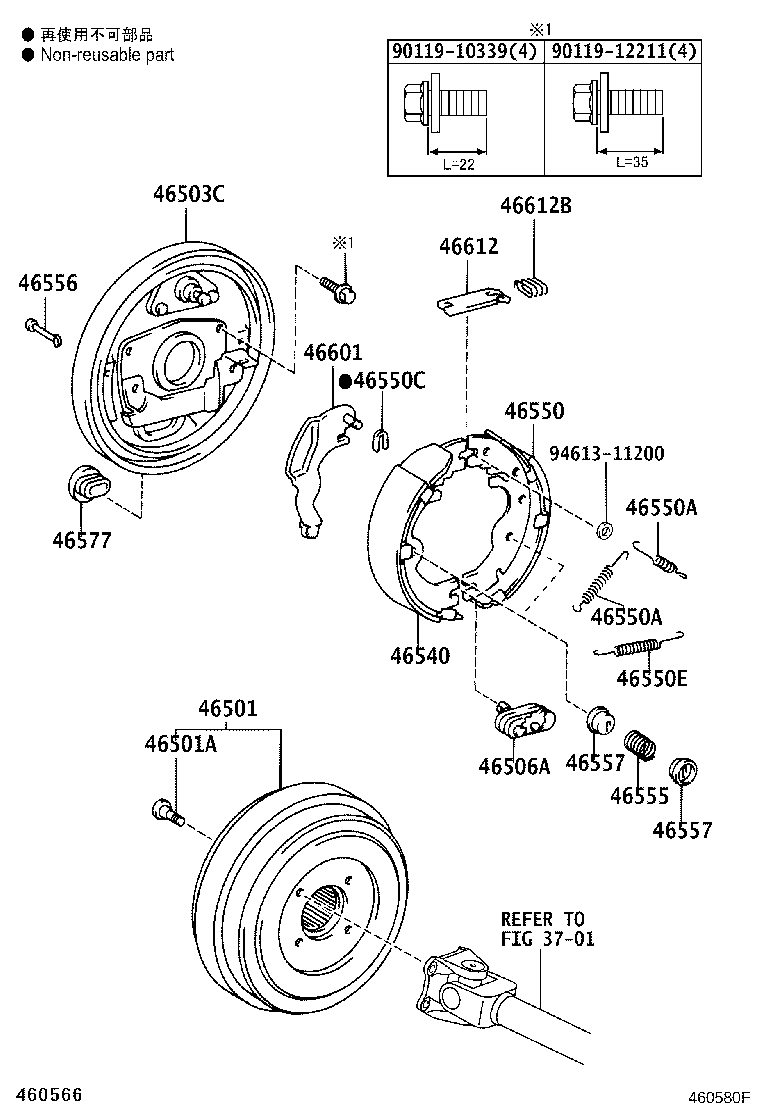

ILLUST NO. 2 OF 2(0312-0610)XZU305,345 ; (0610- )DCRTH,DCRTJ,DCRTP ; (0610- )WU300,340,XZU307,

Click highlighted areas on diagram

M550,M153

Part #	Description	Period	Qty
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-36190	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-37020	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE
46506-36020	XZU300;BU30#,34#,WU300,340..(48T,55T)..(ARL,GCC,GEN,SA)	12/2002 - 11/2003	1
46506-36020	XZU300;BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	11/2003 - 10/2006	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-25010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-25010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	3
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14048	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-35010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-35010	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	2
46577 - COVER, ADJUSTING CAM HOLE
46577-36010	XZU320,330..65T;BU303,343,WU300,340,XZU305,345..(48T,55T)..(ARL,GCC,GEN)	09/2002 - 10/2006	1
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-25011	BU303,343,WU300,340..(48T,55T)..(GCC,GEN)	12/2002 - 10/2006	1
Common parts
90119-10339
90119-12211
94613-11200
Linked diagrams
3701
