BU303L-TBMMS3 (2002)
Toyota Dyna
(0209-0311)XZU342 ; (0212-0312)BU300,340 ; (0212-0405)SA ; (0212-0407)GCC,GEN,TAIW

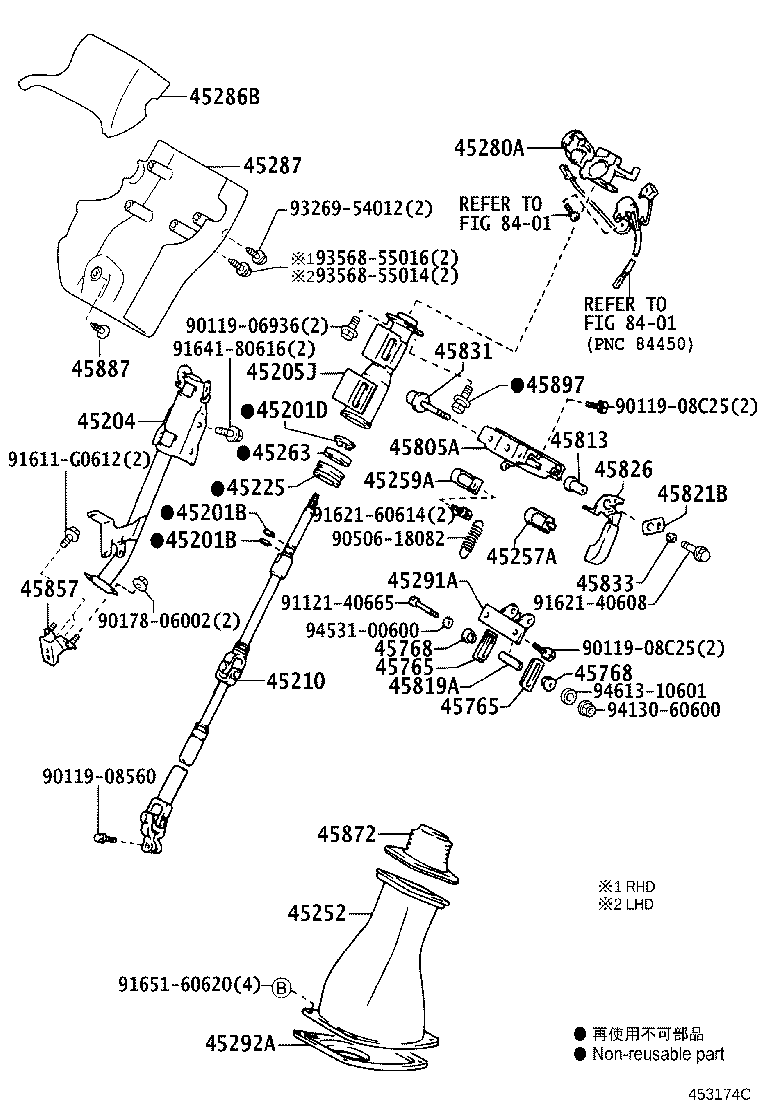

TILT & TELESCOPIC STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 90520-28065 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-37140 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-37050 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37090 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37100 |
BU303,343,WU300,340..GCC,GEN W(RIGID STEERING) |
1 | ||
| 45205-25130 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-37150 |
BU303,343,WU300,340..GCC,GEN W(RIGID STEERING) |
1 | ||
| 45210-37250 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45210-37240 |
BU303,343,WU300,340..GCC,GEN W(RIGID STEERING) |
1 | ||
| 45210-37110 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37040B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-37010 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-37100 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-25170B0 |
BU303,343,WU300,340..LHD W(RIGID STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45286-37090B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-25060B0 |
BU303,343,WU300,340..LHD W(RIGID STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45287-37090B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45803-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45768 - BUSH, TELESCOPIC STEERING | ||||
| 45768-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45768 - BUSH, TELESCOPIC STEERING | ||||
| 45768-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW OD=30 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-12010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1 | ||||
| 45857-37040 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45887 - CLIP, STEERING TELESCOPIC LEVER | ||||
| 90467-07041B8 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-25010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 90119-08C25 | ||||
| 90178-06002 | ||||
| 90506-18082 | ||||
| 91121-40665 | ||||
| 91611-G0612 | ||||
| 91621-40608 | ||||
| 91621-60614 | ||||
| 91641-80616 | ||||
| 91651-60620 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| 94130-60600 | ||||
| 94531-00600 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0209-0311)BU303,343,WU300,340..IDN ; (0209-0407)GCC,GEN
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 90520-28065 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-37140 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-37050 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37090 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37100 |
BU303,343,WU300,340..GCC,GEN W(RIGID STEERING) |
1 | ||
| 45205-25130 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-37150 |
BU303,343,WU300,340..GCC,GEN W(RIGID STEERING) |
1 | ||
| 45210-37250 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45210-37240 |
BU303,343,WU300,340..GCC,GEN W(RIGID STEERING) |
1 | ||
| 45210-37110 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37040B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-37010 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36230 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-25170B0 |
BU303,343,WU300,340..LHD W(RIGID STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45286-37090B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-25060B0 |
BU303,343,WU300,340..LHD W(RIGID STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45287-37090B0 |
BU303,343,WU300,340,XZU300,320,330,340..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1 | ||||
| 45857-37040 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 45887 - CLIP, STEERING TELESCOPIC LEVER | ||||
| 90467-07041B8 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-25010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 90119-08C25 | ||||
| 90178-06002 | ||||
| 91611-G0612 | ||||
| 91641-80616 | ||||
| 91651-60620 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
