BU303L-TBMMS3 (2002)
Toyota Dyna

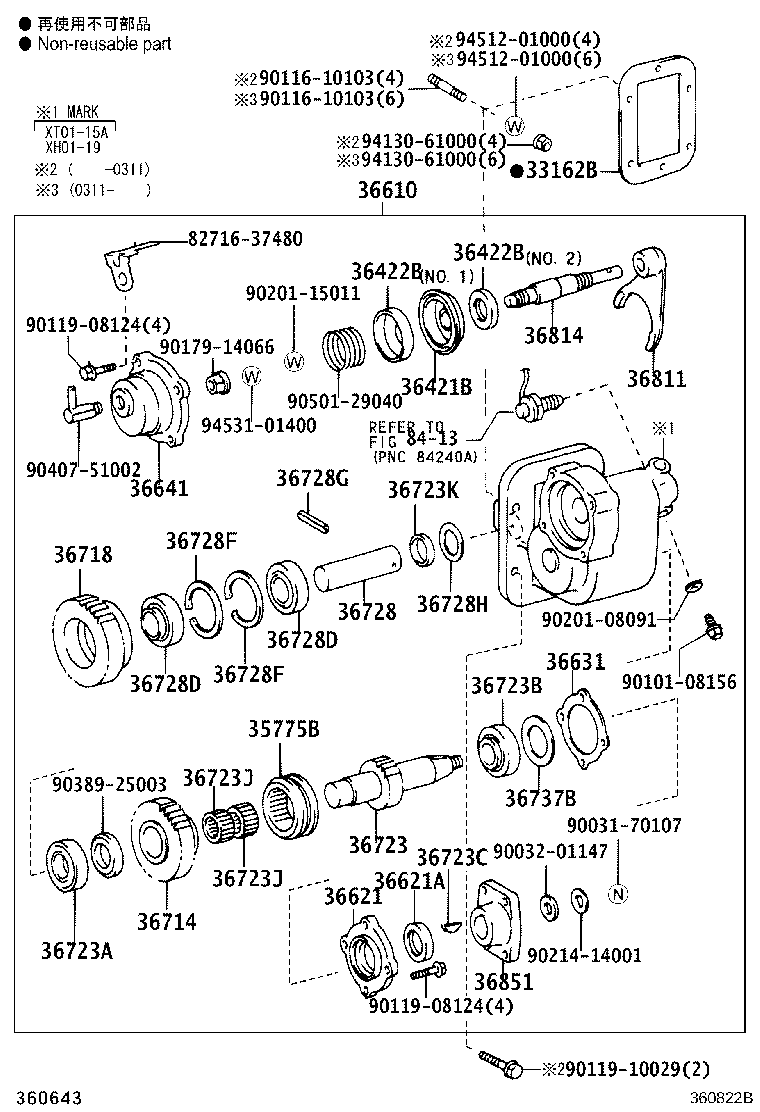

ILLUST NO. 1 OF 2(0212- )ST..GCC..IV3 ; (0212- )BU303..IV3..TS ; (0212- )BU303..LHD..WT..CB
VACUUM TYPE 15KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
1 | ||
| 33162-37030 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 35775-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 35775-37010 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 35775-37010 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36421-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 36422-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 36422-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 36422-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 36422-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 36422-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 36422-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37270 |
BU343..GEN;BU303..WT..IV3;BU303..LHD..WT..CBU REFER TO ILLUSTRATION,MARK XH01-19 |
1 | ||
| 36610-37270 |
BU343..GEN;BU303..WT..IV3;BU303..LHD..WT..CBU REFER TO ILLUSTRATION,MARK XH01-19 |
1 | ||
| 36610-37150 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..55T..(GCC,GEN) |
1 | ||
| 36610-37150 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..55T..(GCC,GEN) |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 36621-93200 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 90311-25110 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36632-37030 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36632-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU300,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36632-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU300,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36641-93100 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36714-93108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36718-93112 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723-93107 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 97100-06205 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=16.25 |
1 | ||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 90280-07011 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90364-28020 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90364-28020 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 90387-25009 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36728-93107 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90521-56108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90521-56108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 90254-04002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.2 |
1 | ||
| 90564-25003 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.2 |
1 | ||
| 90564-25002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.1 |
1 | ||
| 90564-25002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.1 |
1 | ||
| 90564-25004 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.5 |
1 | ||
| 90564-25004 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.5 |
1 | ||
| 90564-25001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.05 |
1 | ||
| 90564-25001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.05 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42003 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.17-0.23 |
1 | ||
| 90564-42003 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.17-0.23 |
1 | ||
| 90564-42001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.02-0.08 |
1 | ||
| 90564-42001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.02-0.08 |
1 | ||
| 90564-42002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.07-0.13 |
1 | ||
| 90564-42002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.07-0.13 |
1 | ||
| 90564-42004 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.47-0.53 |
1 | ||
| 90564-42004 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.47-0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36811-93104 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36814-93104 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 36851-37010 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90119-10029 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 1 OF 2(0312- )XZU305,345 ; (0610- )WU302..IV3..TS ; (0610- )WU302..DCRTJ..CBU ;
VACUUM TYPE 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 35775-37010 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 36422-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.2 |
1 | ||
| 36422-93100 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) NO.1 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37270 |
BU343..GEN;BU303..WT..IV3;BU303..LHD..WT..CBU REFER TO ILLUSTRATION,MARK XH01-19 |
1 | ||
| 36610-37150 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..55T..(GCC,GEN) |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36632-93101 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU300,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=16.25 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.2 |
1 | ||
| 90564-25002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.1 |
1 | ||
| 90564-25004 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.5 |
1 | ||
| 90564-25001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.05 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42003 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.17-0.23 |
1 | ||
| 90564-42001 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.02-0.08 |
1 | ||
| 90564-42002 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.07-0.13 |
1 | ||
| 90564-42004 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) T=0.47-0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU303,XZU305..IV3..(T4,TS);BU343,WU300,340,XZU300,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 84210-12040 | ||||
| 90031-19132 | ||||
| 90031-70107 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
ILLUST NO. 2 OF 2(0312- )XZU305,345 ; (0610- )WU302..IV3..TS ; (0610- )WU302..DCRTJ..CBU ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78041 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78031 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;W04D,14B,15BFTE..BU300,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78080 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78080 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 27690-78032 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37170 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 44771-37450 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37290 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 95446-09300 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
ILLUST NO. 2 OF 2(0212-0610)BU303..IV3..TS ; (0212-0610)WU300..ST..IV3..TS ; (0212-0610)BU303..LHD..
VACUUM TYPE 15KG, 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78041 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 27679-78041 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78031 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;W04D,14B,15BFTE..BU300,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78031 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;W04D,14B,15BFTE..BU300,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78080 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78080 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78080 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 27690-78080 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 27690-78032 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 27690-78032 |
14B..BU303..IV3..TS;14B..BU303..LHD..WT..CBU;W04D..WU300..ST..IV3..TS;N04C,W04D,14B,15BFTE..BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 44754-37110 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37170 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
1 | ||
| 44763-37170 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN) |
1 | ||
| 44763F - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-37370 |
BU343..GEN;BU303..IV3..TS;BU303..LHD..WT..CBU |
1 | ||
| 44763-37370 |
BU343..GEN;BU303..IV3..TS;BU303..LHD..WT..CBU |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 44771-37450 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 44771-37450 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37290 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 44771-37290 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU300,330,340..WT..(GCC,GEN,TAIW) |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 95446-09300 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 95446-09300 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 44779J - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
BU343..GEN;BU303..IV3..TS;BU303..LHD..WT..CBU |
1 | ||
| 44778-37060 |
BU343..GEN;BU303..IV3..TS;BU303..LHD..WT..CBU |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
