BU303L-TBMMS3 (2002)
Toyota Dyna

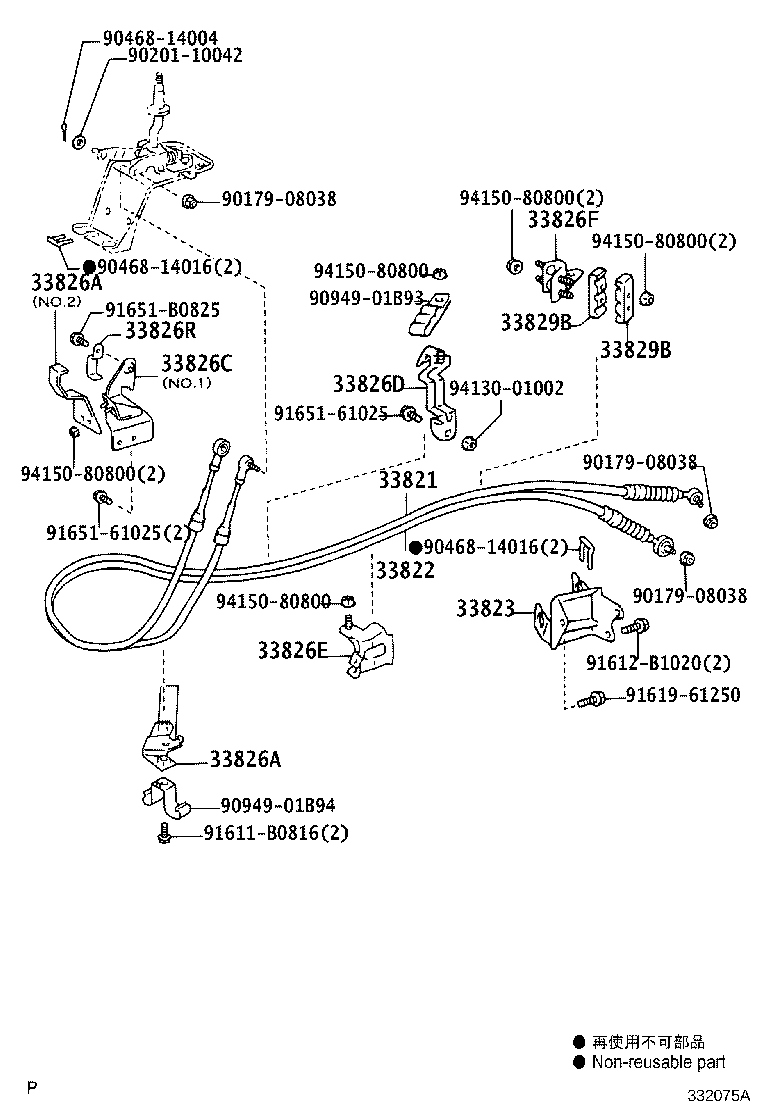

ILLUST NO. 2 OF 2(0212-0610)BU303,343..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-3V840 |
BU303,343,WU300,340..LHD |
1 | ||
| 33820-3V841 |
BU303,343,WU300,340..LHD |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-3V830 |
BU303,343,WU300,340..LHD |
1 | ||
| 33820-3V831 |
BU303,343,WU300,340..LHD |
1 | ||
| 33820-3V832 |
BU303,343,WU300,340..LHD |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37380 |
BU303,343..GEN |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A00 |
BU303,343,WU300,340..LHD |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A00 |
BU303,343,WU300,340..LHD |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37281 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 33826-37690 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.2 |
1 | ||
| 33826-37282 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37270 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37251 |
BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW NO.1 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37460 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B93 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91612-B1020 | ||||
| 91619-61250 | ||||
| 91651-61025 | ||||
| 91651-B0825 | ||||
| 94130-01002 | ||||
| 94150-80800 | ||||
ILLUST NO. 1 OF 2(0212-0610)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37091 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37052 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37081 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37030 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-40860 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
