BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0612)BU303,343

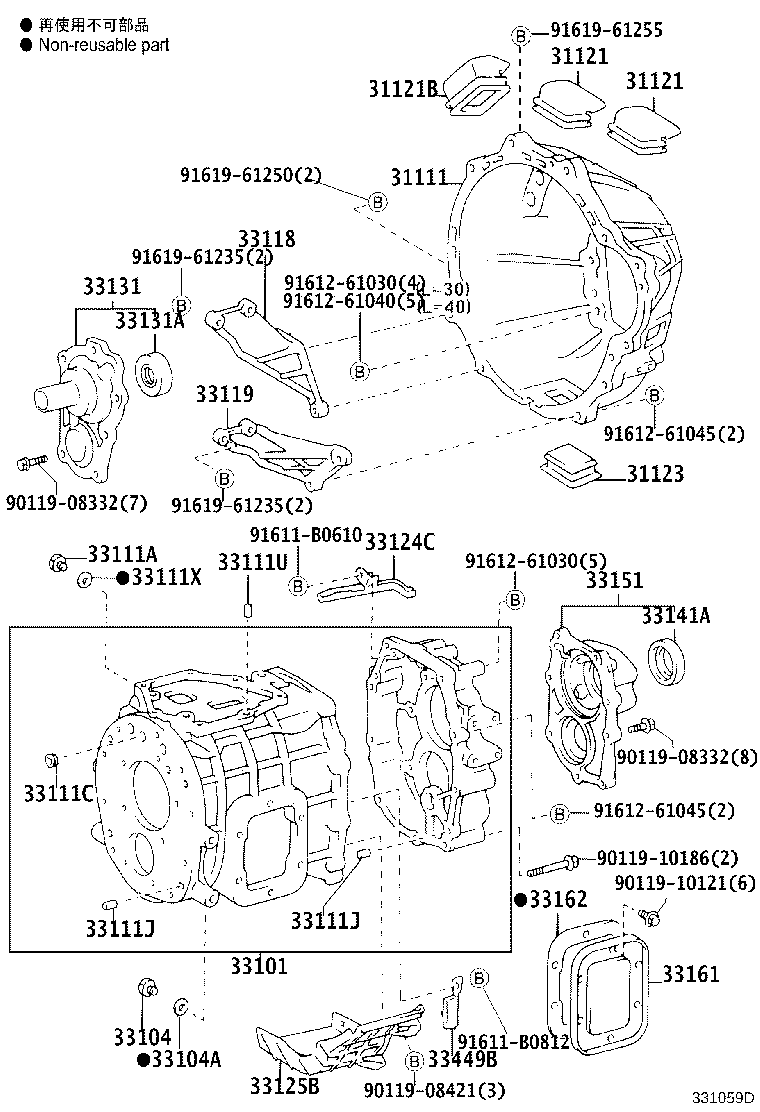

Click highlighted areas on diagram

M150,M153

diagram 31111 31121 31121 31121B 31123 33101 33104 33104A 33111A 33111C 33111J 33111J 33111U 33111X 33118 33119 33124C 33125B 33131 33131A 33141A 33151 33161 33162 33449B 9011908332 9011908332 9011908421 9011910121 9011910186 91611B0610 91611B0812 9161261030 9161261030 9161261040 9161261045 9161261045 9161961235 9161961235 9161961250 9161961255
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-36310

BU303,343..GEN

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

BU303,343,XZU300,320,330,340..GEN,TAIW

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

BU303,343,XZU300,320,330,340..GEN,TAIW

 2
31121B - COVER, CLUTCH HOUSING, NO.3
31121-28030

BU303,343..GEN

 1
31123 - COVER, CLUTCH HOUSING, NO.2
31121-36040

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36084

BU303,343,WU300,340..GCC,GEN

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600

BU303,343,WU300,340..GCC,GEN

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

BU303,343,WU300,340..GCC,GEN

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

BU303,343,WU300,340..GCC,GEN

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

BU303,343,WU300,340..GCC,GEN

L=12,OD=13

 2
90253-11001

BU303,343,WU300,340..GCC,GEN

L=11,OD=11

 1
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

BU303,343,WU300,340..GCC,GEN

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36021

BU303,343..GEN

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36042

BU303,343..GEN

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030

BU303,343,WU300,340..GCC,GEN

 1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020

BU303,343,WU300,340..GCC,GEN

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36060

BU303,343..GEN

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

BU303,343..GEN

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031

BU303,343,WU300,340..GCC,GEN

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
33449B - MAGNET, TRANSMISSION
33449-36010

BU303,343,WU300,340..GCC,GEN

 1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
91611-B0610
91611-B0812
91612-61030
91612-61040
91612-61045
91619-61235
91619-61250
91619-61255
