BU303L-TBMMS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )BU303,343,WU30#,34#..LHD

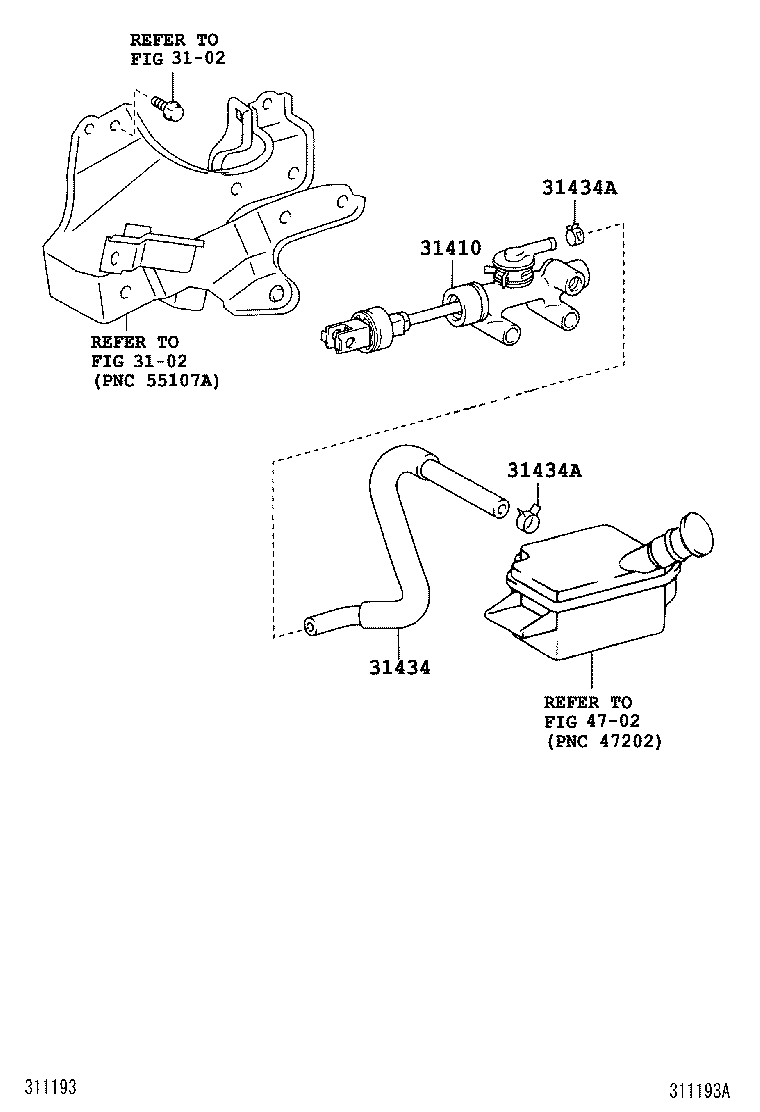

Click highlighted areas on diagram

diagram 3102 3102 31410 31434 31434A 31434A 4702
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-37141

BU303,343,WU300,340..GCC,GEN

 1
31420-37140

BU303,343,WU300,340..GCC,GEN,SA

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-37170

BU303,343,WU300,340..LHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN

 2
Linked diagrams
3102
4702
