BU303L-TBMMS3 (2002)
Toyota Dyna
ILLUST NO. 2 OF 2(0212-0610)BU303,343,WU300,340..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-37010 |
BU303,343..GEN |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-37180 |
BU303,343,WU300,340..LHD |
1 | ||
| 31481-37270 |
BU303,343,WU300,340..LHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01143 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37090 |
BU303,343..GEN |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37090 |
BU303,343..GEN |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 90931-01142 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 90931-01142 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37131 |
BU303,343,WU300,340,XZU300,330,340..LHD |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-37250 |
BU303,343,WU300,340,XZU300,330,340..LHD |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31481-37151 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 31481-37150 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90034-61057 | ||||
| 90119-08830 | ||||
| 90468-08035 | ||||
| 91651-60816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||

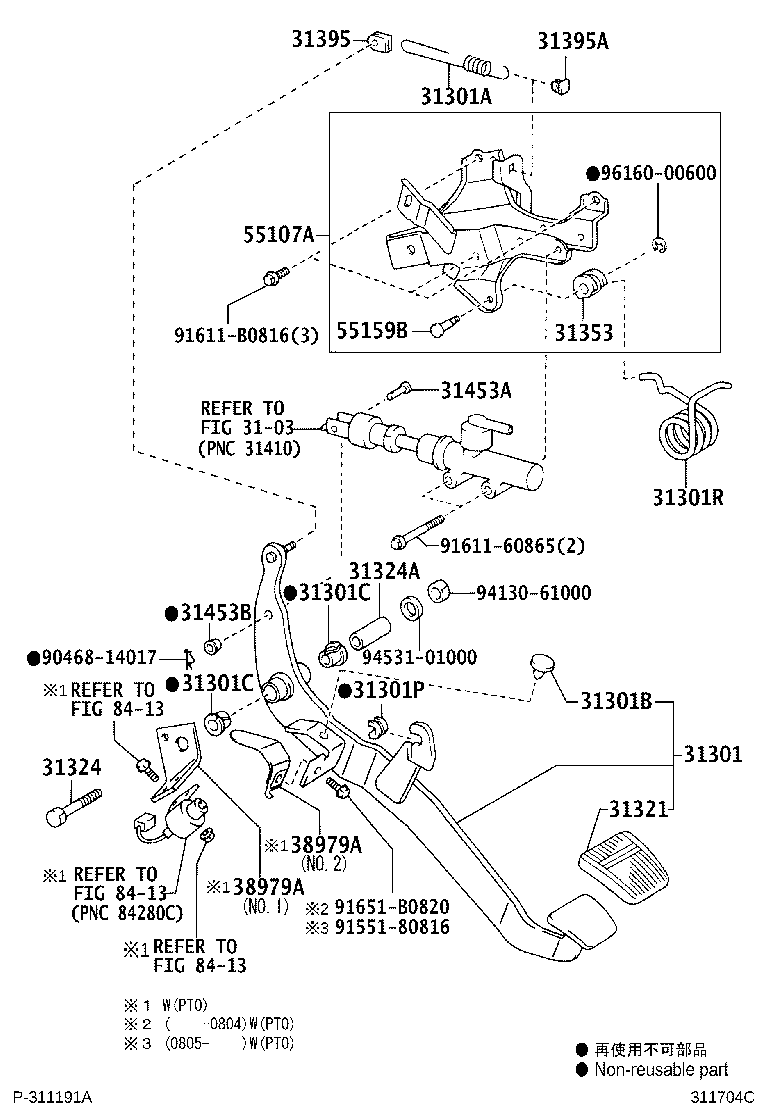

ILLUST NO. 1 OF 2(0212- )GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37220 |
BU303,343,WU300,340..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-18032 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU303,343,WU300,340..LHD |
1 | ||
| 90386-13007 |
BU303..LHD..IV3;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..LHD..WT W(PTO) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU303,343,WU300,340..LHD |
1 | ||
| 90386-13007 |
BU303..LHD..IV3;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..LHD..WT W(PTO) |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90959-03331 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37120 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) NO.1 |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37120 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340..WT..(GCC,GEN) NO.1 |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-37051 |
BU303,343,WU300,340..GCC,GEN,SA |
1 | ||
| 55107-37052 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| 55159B - PIN, CLUTCH PEDAL TURN OVER SPRING | ||||
| 55159-37060 |
BU303,343,WU300,340..GCC,GEN |
1 | ||
| Common parts | ||||
| 90468-14017 | ||||
| 91551-80816 | ||||
| 91611-60865 | ||||
| 91611-B0816 | ||||
| 91651-B0820 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8413 | ||||
