BU303L-TBMMS3 (2002)
Toyota Dyna

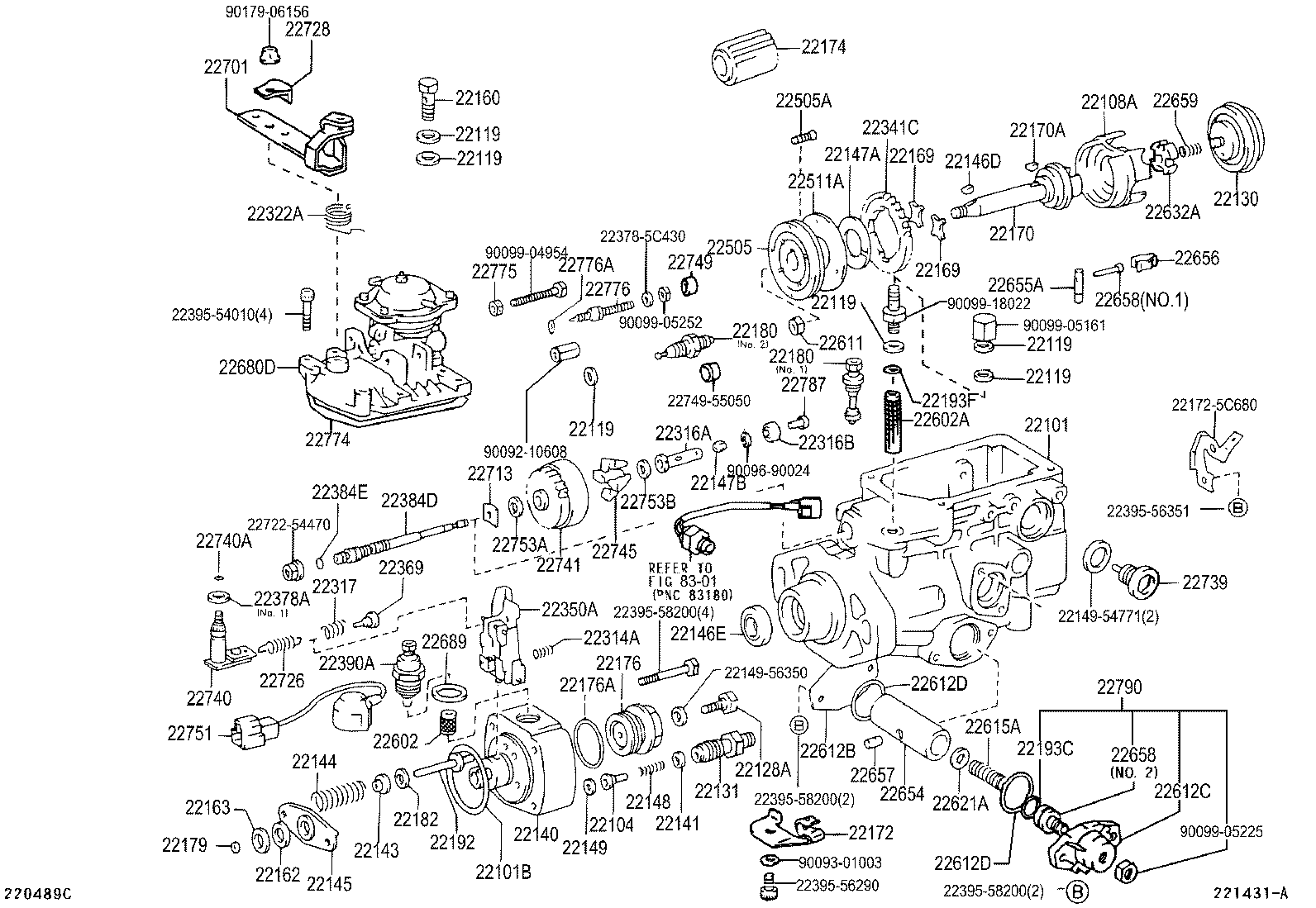

ILLUST NO. 1 OF 2(0212- )14B..GEN
W(HIGH ALTITUDE COMPENSATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64250 |
14B..BU303,343..GEN W(TACHOMETER) |
1 | ||
| 22101-54200 |
14B..BU303,343..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22101-54770 |
14B..BU303,343 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
14B..BU303,343 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-56330 |
14B..BU303,343 |
4 | ||
| 22104-56350 |
14B..BU303,343..GEN W(TACHOMETER);W(HIGH ALTITUDE COMPENSATOR) |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-96300 |
14B..BU303,343 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
14B..BU303,343 T=3.1 |
6 | ||
| 22119-58770 |
14B..BU303,343 T=3.7 |
6 | ||
| 90099-01533 |
14B..BU303,343 T=1.0 |
6 | ||
| 90201-12109 |
14B..BU303,343 T=1.6 |
6 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
14B..BU303,343 T=3.1 |
6 | ||
| 22119-58770 |
14B..BU303,343 T=3.7 |
6 | ||
| 90099-01533 |
14B..BU303,343 T=1.0 |
6 | ||
| 90201-12109 |
14B..BU303,343 T=1.6 |
6 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
14B..BU303,343 T=3.1 |
6 | ||
| 22119-58770 |
14B..BU303,343 T=3.7 |
6 | ||
| 90099-01533 |
14B..BU303,343 T=1.0 |
6 | ||
| 90201-12109 |
14B..BU303,343 T=1.6 |
6 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
14B..BU303,343 T=3.1 |
6 | ||
| 22119-58770 |
14B..BU303,343 T=3.7 |
6 | ||
| 90099-01533 |
14B..BU303,343 T=1.0 |
6 | ||
| 90201-12109 |
14B..BU303,343 T=1.6 |
6 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
14B..BU303,343 T=3.1 |
6 | ||
| 22119-58770 |
14B..BU303,343 T=3.7 |
6 | ||
| 90099-01533 |
14B..BU303,343 T=1.0 |
6 | ||
| 90201-12109 |
14B..BU303,343 T=1.6 |
6 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
14B..BU303,343 T=3.1 |
6 | ||
| 22119-58770 |
14B..BU303,343 T=3.7 |
6 | ||
| 90099-01533 |
14B..BU303,343 T=1.0 |
6 | ||
| 90201-12109 |
14B..BU303,343 T=1.6 |
6 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-56330 |
14B..BU303,343 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-56350 |
14B..BU303,343 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54010 |
14B..BU303,343 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-56350 |
14B..BU303,343 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22565-56350 |
14B..BU303,343 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
14B..BU303,343 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-56350 |
14B..BU303,343 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
14B..BU303,343 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
14B..BU303,343 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
14B..BU303,343 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
14B..BU303,343 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
14B..BU303,343 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-56350 |
14B..BU303,343 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
14B..BU303,343 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
14B..BU303,343 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
14B..BU303,343 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
14B..BU303,343 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
14B..BU303,343 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
14B..BU303,343 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-56350 |
14B..BU303,343 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
14B..BU303,343 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5C090 |
14B..BU303,343 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58270 |
14B..BU303,343 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
14B..BU303,343 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 22193-54772 |
14B..BU303,343 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54011 |
14B..BU303,343 T=2.0 |
1 | ||
| 22179-54013 |
14B..BU303,343 T=2.2 |
1 | ||
| 22179-54016 |
14B..BU303,343 T=2.5 |
1 | ||
| 22179-54015 |
14B..BU303,343 T=2.4 |
1 | ||
| 22179-54012 |
14B..BU303,343 T=2.1 |
1 | ||
| 22179-54010 |
14B..BU303,343 T=1.9 |
1 | ||
| 22179-54014 |
14B..BU303,343 T=2.3 |
1 | ||
| 22179-54020 |
14B..BU303,343 T=2.9 |
1 | ||
| 22179-54017 |
14B..BU303,343 T=2.6 |
1 | ||
| 22179-54018 |
14B..BU303,343 T=2.7 |
1 | ||
| 22179-54019 |
14B..BU303,343 T=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-56351 |
14B..BU303,343 NO.1 |
1 | ||
| 22180-58650 |
14B..BU303,343 NO.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-56351 |
14B..BU303,343 NO.1 |
1 | ||
| 22180-58650 |
14B..BU303,343 NO.2 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
14B..BU303,343 T=0.5 |
2 | ||
| 22183-54010 |
14B..BU303,343 T=0.8 |
2 | ||
| 22186-54010 |
14B..BU303,343 T=1.5 |
2 | ||
| 22184-54010 |
14B..BU303,343 T=1.0 |
2 | ||
| 22185-54010 |
14B..BU303,343 T=1.2 |
2 | ||
| 22187-54010 |
14B..BU303,343 T=1.8 |
2 | ||
| 22188-54010 |
14B..BU303,343 T=2.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-56350 |
14B..BU303,343 |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-64750 |
14B..BU303,343..GEN W(TACHOMETER);W(HIGH ALTITUDE COMPENSATOR) |
2 | ||
| 22193-64750 |
14B..BU303,343 |
1 | ||
| 22193F - RING, O(FOR FUEL INJECTION PUMP FILTER) | ||||
| 22193-5B320 |
14B..BU303,343 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
14B..BU303,343 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-55030 |
14B..BU303,343 MARK 45 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
14B..BU303,343 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-56350 |
14B..BU303,343 K=0.1,L=8.2 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
14B..BU303,343 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
14B..BU303,343 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-58541 |
14B..BU303,343 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
14B..BU303,343 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22149-6D450 |
14B..BU303,343..GEN NO.2 |
2 | ||
| 22378-64010 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22378-64010 |
14B..BU303,343 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
14B..BU303,343 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
14B..BU303,343 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-56291 |
14B..BU303,343 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
14B..BU303,343 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
14B..BU303,343 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
14B..BU303,343 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
14B..BU303,343 |
1 | ||
| 22602A - FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2 | ||||
| 22602-5B320 |
14B..BU303,343 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
14B..BU303,343 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-56350 |
14B..BU303,343 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-5C300 |
14B..BU303,343 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B..BU303,343 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B..BU303,343 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-58541 |
14B..BU303,343 K=2.5,L=52.2 |
1 | ||
| 22615-5C302 |
14B..BU303,343 K=2.30,L=52.9 |
1 | ||
| 22615-58542 |
14B..BU303,343 K=2.7,L=51.7 |
1 | ||
| 22615-5C301 |
14B..BU303,343 K=2.10,L=53.6 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22622-54010 |
14B..BU303,343..GEN T=1.0,W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22621-54010 |
14B..BU303,343..GEN T=0.5 |
1 | ||
| 22624-54800 |
14B..BU303,343..GEN T=0.6 |
1 | ||
| 22624-54803 |
14B..BU303,343..GEN T=0.7 |
1 | ||
| 22624-54805 |
14B..BU303,343..GEN T=0.9 |
1 | ||
| 22624-54806 |
14B..BU303,343..GEN T=0.3 |
1 | ||
| 22624-54804 |
14B..BU303,343..GEN T=0.8 |
1 | ||
| 22625-54277 |
14B..BU303,343 T=1.0 |
1 | ||
| 22624-54010 |
14B..BU303,343..GEN T=0.2 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-56350 |
14B..BU303,343 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-56340 |
14B..BU303,343 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
14B..BU303,343 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
14B..BU303,343 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
14B..BU303,343 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
14B..BU303,343 NO.1 |
1 | ||
| 22658-54450 |
14B..BU303,343 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
14B..BU303,343 NO.1 |
1 | ||
| 22658-54450 |
14B..BU303,343 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-58650 |
14B..BU303,343 |
1 | ||

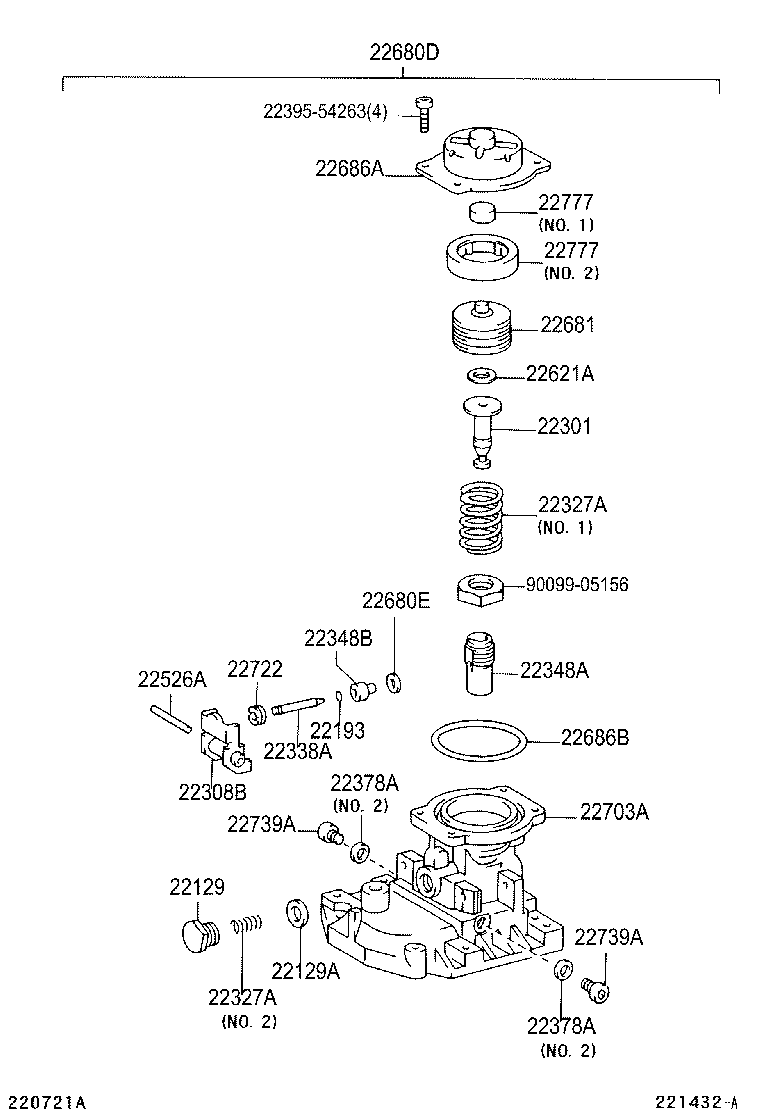

| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-56320 |
14B..BU303,343..GEN |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
14B..BU303,343 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-17010 |
14B..BU303,343 MARK 383 |
1 | ||
| 22701-56350 |
14B..BU303,343 MARK 247 |
1 | ||
| 22701-17011 |
14B..BU303,343 MARK 384 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22715-54010 |
14B..BU303,343 T=1.45 |
1 | ||
| 22713-54010 |
14B..BU303,343 T=1.05 |
1 | ||
| 22714-54010 |
14B..BU303,343 T=1.25 |
1 | ||
| 22716-54010 |
14B..BU303,343 T=1.65 |
1 | ||
| 22717-54010 |
14B..BU303,343 T=1.85 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58470 |
14B..BU303,343 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
14B..BU303,343 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
14B..BU303,343 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-21910 |
14B..BU303,343 L=20 |
1 | ||
| 22740-58480 |
14B..BU303,343 L=17.5 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
14B..BU303,343 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
14B..BU303,343 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-5C090 |
14B..BU303,343 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-5C390 |
14B..BU303,343..GEN |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-56450 |
14B..BU303,343..GEN W(TACHOMETER);W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22751-5C680 |
14B..BU303,343 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
14B..BU303,343 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
14B..BU303,343 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
14B..BU303,343 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
14B..BU303,343 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-55030 |
14B..BU303,343 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 22193-54771 |
14B..BU303,343 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-56350 |
14B..BU303,343 L=5.9 |
1 | ||
| 22787-54031 |
14B..BU303,343 L=3.8 |
1 | ||
| 22787-64641 |
14B..BU303,343 L=3.0 |
1 | ||
| 22787-56352 |
14B..BU303,343 L=6.1 |
1 | ||
| 22787-54035 |
14B..BU303,343 L=4.5 |
1 | ||
| 22787-17145 |
14B..BU303,343 L=5.1 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-56351 |
14B..BU303,343 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56350 | ||||
| 22172-5C680 | ||||
| 22378-5C430 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 22749-55050 | ||||
| 90092-10608 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06156 | ||||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 2 OF 2(0212- )14B..GEN
W(HIGH ALTITUDE COMPENSATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
14B..BU303,343..GEN |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 22149-54800 |
14B..BU303,343..GEN |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
14B..BU303,343..GEN |
1 | ||
| 22301 - ROD SUB-ASSY, PUSH | ||||
| 22301-56310 |
14B..BU303,343..GEN |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-17570 |
14B..BU303,343..GEN |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-64400 |
14B..BU303,343..GEN NO.2 |
1 | ||
| 22327-54120 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-64400 |
14B..BU303,343..GEN NO.2 |
1 | ||
| 22327-54120 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22338A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
14B..BU303,343..GEN |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-64400 |
14B..BU303,343..GEN |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
14B..BU303,343..GEN |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22149-6D450 |
14B..BU303,343..GEN NO.2 |
2 | ||
| 22378-64010 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22378-64010 |
14B..BU303,343 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22149-6D450 |
14B..BU303,343..GEN NO.2 |
2 | ||
| 22378-64010 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22378-64010 |
14B..BU303,343 |
1 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
14B..BU303,343..GEN |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22622-54010 |
14B..BU303,343..GEN T=1.0,W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22621-54010 |
14B..BU303,343..GEN T=0.5 |
1 | ||
| 22624-54800 |
14B..BU303,343..GEN T=0.6 |
1 | ||
| 22624-54803 |
14B..BU303,343..GEN T=0.7 |
1 | ||
| 22624-54805 |
14B..BU303,343..GEN T=0.9 |
1 | ||
| 22624-54806 |
14B..BU303,343..GEN T=0.3 |
1 | ||
| 22624-54804 |
14B..BU303,343..GEN T=0.8 |
1 | ||
| 22625-54277 |
14B..BU303,343 T=1.0 |
1 | ||
| 22624-54010 |
14B..BU303,343..GEN T=0.2 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-56320 |
14B..BU303,343..GEN |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
14B..BU303,343..GEN |
1 | ||
| 22681 - BELLOWS SUB-ASSY, PNEUMATIC | ||||
| 22681-54460 |
14B..BU303,343..GEN |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-54351 |
14B..BU303,343..GEN |
1 | ||
| 22686B - RING, O(FOR BELLOWS COVER) | ||||
| 90099-14057 |
14B..BU303,343..GEN |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-58540 |
14B..BU303,343..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22703-6A210 |
14B..BU303,343 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54120 |
14B..BU303,343..GEN |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
14B..BU303,343..GEN |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
14B..BU303,343..GEN |
2 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22777-64410 |
14B..BU303,343..GEN NO.2 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 22777-64410 |
14B..BU303,343..GEN NO.2 |
1 | ||
| Common parts | ||||
| 22395-54263 | ||||
| 90099-05156 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
