BU303L-TBMMS3 (2002)
Toyota Dyna

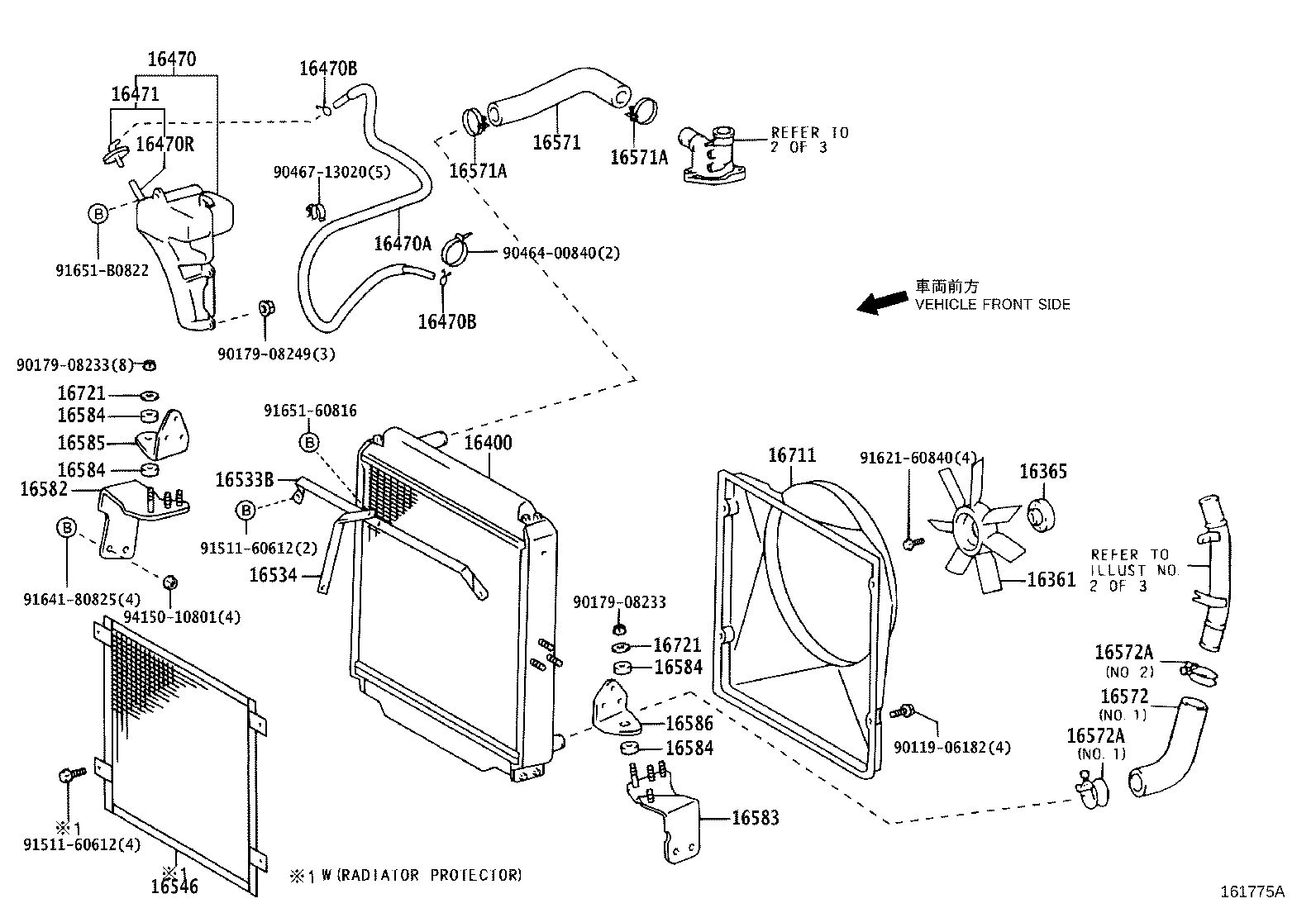

ILLUST NO. 1 OF 3(0212- )14B..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-58020 |
14B..BU303,343..GEN |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-56022 |
14B..BU303,343..GEN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58790 |
14B..BU303,343..LHD |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
14B,15BFTE..BU30#,34# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-58080 |
14B..BU303,343..LHD L=1660 |
1 | ||
| 16567-78310 |
14B..BU303,343..LHD L=1660 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B,15BFTE..BU30#,34# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B,15BFTE..BU30#,34# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
14B,15BFTE..BU30#,34# L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
14B,15BFTE..BU30#,34# |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-58051 |
15BFTE..BU300,340;14B..BU303,343..LHD |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-58020 |
15BFTE..BU300,340;14B..BU303,343..LHD |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-78020 |
14B..BU303,343..GEN |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58150 |
14B..BU303,343..LHD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-58010 |
14B..BU303,343..GEN |
2 | ||
| 90460-52003 |
14B..BU303,343..GEN |
2 | ||
| 90460-55014 |
14B..BU303,343..GEN |
2 | ||
| 16581-78140 |
14B..BU303,343..GEN |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-58010 |
14B..BU303,343..GEN |
2 | ||
| 90460-52003 |
14B..BU303,343..GEN |
2 | ||
| 90460-55014 |
14B..BU303,343..GEN |
2 | ||
| 16581-78140 |
14B..BU303,343..GEN |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-58230 |
14B..BU303,343..LHD NO.1 |
1 | ||
| 16572-56091 |
14B..BU303,343..GEN NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 16581-58010 |
14B..BU303,343..GEN NO.2 |
1 | ||
| 90460-52003 |
14B..BU303,343..GEN NO.1 & NO.2 |
2 | ||
| 16581-78140 |
14B..BU303,343..GEN NO.1 & NO.2 |
2 | ||
| 90460-55014 |
14B..BU303,343..GEN NO.1 & NO.2 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
14B..BU303,343..GEN NO.1 |
1 | ||
| 16581-58010 |
14B..BU303,343..GEN NO.2 |
1 | ||
| 90460-52003 |
14B..BU303,343..GEN NO.1 & NO.2 |
2 | ||
| 16581-78140 |
14B..BU303,343..GEN NO.1 & NO.2 |
2 | ||
| 90460-55014 |
14B..BU303,343..GEN NO.1 & NO.2 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-58020 |
14B..BU303,343..LHD |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-58010 |
14B..BU303,343..LHD |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
14B..BU303,343..IDN;14B..BU303,343..LHD |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
14B..BU303,343..IDN;14B..BU303,343..LHD |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
14B..BU303,343..IDN;14B..BU303,343..LHD |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
14B..BU303,343..IDN;14B..BU303,343..LHD |
4 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-58020 |
14B..BU303,343..LHD |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-58020 |
14B..BU303,343..LHD |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78050 |
14B..BU303,343..LHD |
1 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
14B..BU303,343..IDN;14B..BU303,343..LHD |
2 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
14B..BU303,343..IDN;14B..BU303,343..LHD |
2 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00840 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91621-60840 | ||||
| 91641-80825 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||

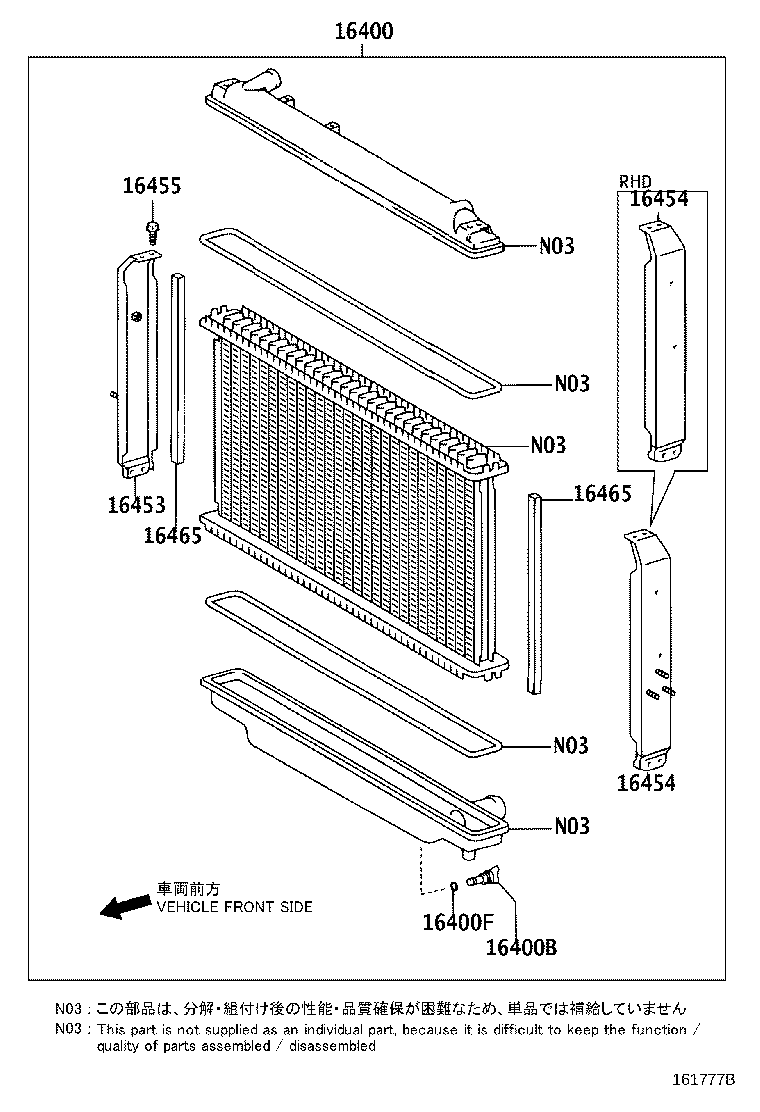

ILLUST NO. 3 OF 3(0212- )14B..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-58790 |
14B..BU303,343..LHD |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
14B,15BFTE..BU30#,34#..ARL,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
14B,15BFTE..BU30#,34#..ARL,GEN |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-58630 |
14B..BU303,343..LHD |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-58630 |
14B..BU303,343..LHD |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-58630 |
14B..BU303,343..LHD |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
14B,15BFTE..BU30#,34#..ARL,GEN |
8 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
14B,15BFTE..BU30#,34#..ARL,GEN |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
14B,15BFTE..BU30#,34#..ARL,GEN |
2 | ||
