BU303L-TBMLS3 (2002)
Toyota Dyna
(0212-0610)ST..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU303,343,WU300,340..(48T,55T)..(GCC,GEN) 10.5INCHES DIFFERENTIAL |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
BU303,343,WU300,340..(48T,55T)..(GCC,GEN) 10.5INCHES DIFFERENTIAL |
12 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-37090 |
BU303,WU300..ST..TS 10.5INCHES DIFFERENTIAL |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-78001 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-37090 |
BU303,WU300..ST..TS 10.5INCHES DIFFERENTIAL |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-78001 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 42321-37020 |
WU340,XZU342;BU30#,34#,WU300,XZU300,320,330..(48T,55T,65T)..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
WU340,XZU342;BU30#,34#,WU300,XZU300,320,330..(48T,55T,65T)..(ARL,GCC,GEN,SA,TAIW) |
1 | ||
| 42321-37020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU303,343,WU300,340..(48T,55T)..(GCC,GEN) 10.5INCHES DIFFERENTIAL |
12 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
BU303,343,WU300,340..(48T,55T)..(GCC,GEN) 10.5INCHES DIFFERENTIAL |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90250-10055 |
BU30#,34#,WU300,340,XZU300,320,330,342..48T,55T,65T,75T |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
BU303,343,WU300,340..(48T,55T)..(GCC,GEN) 10.5INCHES DIFFERENTIAL |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 90250-10055 |
BU30#,34#,WU300,340,XZU300,320,330,342..48T,55T,65T,75T |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37080 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS) |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) 20G |
1 | ||
| 90937-01117 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) 10G |
1 | ||
| 90937-01119 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) 30G |
1 | ||
| 90937-01120 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) 40G |
1 | ||
| 90937-01122 |
BU343;BU303,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) 60G |
1 | ||
| 90937-01121 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) 50G |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39245 |
BU303,WU300..ST..TS |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW) |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39275 |
BU303,WU300..ST..TS |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||

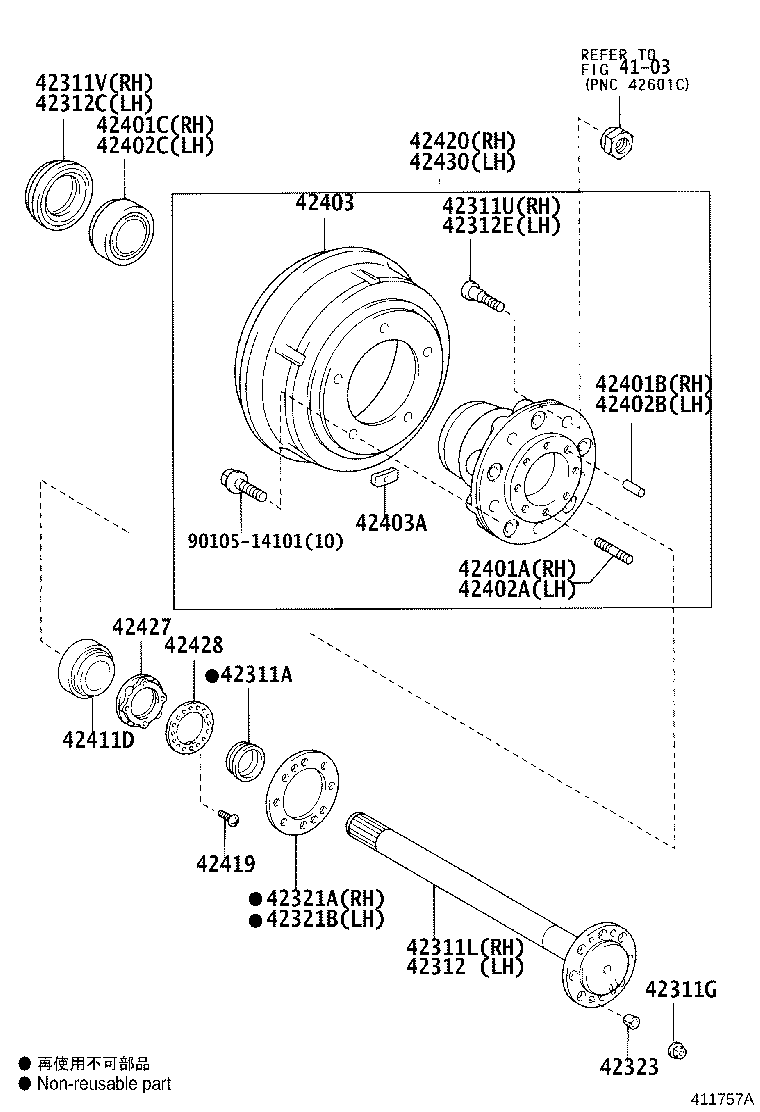

| Linked diagrams | ||||
| 4103 | ||||
