BU300R-TQMMWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Dec 2003
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212-0312)15BFTE..BU300,340

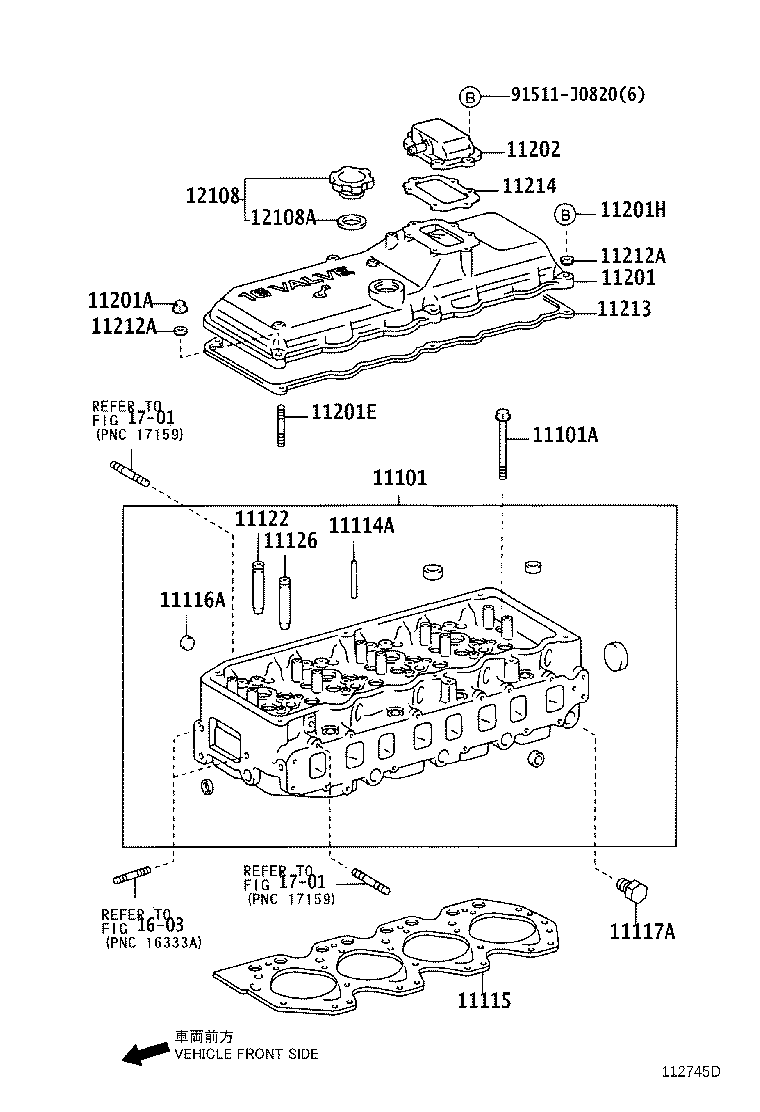

Click highlighted areas on diagram

diagram 11101 11101A 11114A 11115 11116A 11117A 11122 11126 11201 11201A 11201E 11201H 11202 11212A 11212A 11213 11214 12108 12108A 1603 1701 1701 91511J0820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-58100

15BFTE..BU300,340

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

14B,15BFTE..BU30#,34#

 18
11114A - PIN, STRAIGHT
90250-09007

15BFTE..BU300,340

L=53.5,OD=9

 8
11115 - GASKET, CYLINDER HEAD
11115-58141

15BFTE..BU300,340

T=1.30

 1
11115-58131

15BFTE..BU300,340

T=1.20

 1
11115-58151

15BFTE..BU300,340

T=1.40

 1
11116A - PLUG, TIGHT, NO.1
90331-14006

15BFTE..BU300,340

 4
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

15BFTE..BU300,340

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-58020

15BFTE..BU300,340

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-58020

15BFTE..BU300,340

STD

 8
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-58070

15BFTE..BU300,340

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08040

14B,15BFTE..BU30#,34#

 2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
92112-60835

15BFTE..BU300,340

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
91511-B0835

15BFTE..BU300,340

 4
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-58010

15BFTE..BU300,340

 1
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

14B,15BFTE..BU30#,34#

 6
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

14B,15BFTE..BU30#,34#

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58021

15BFTE..BU300,340

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-58010

15BFTE..BU300,340

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

14B,15BFTE..BU30#,34#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

14B,15BFTE..BU30#,34#

 1
Common parts
91511-J0820
Linked diagrams
1603
1701
