BU25LD-QRTU3 (1978)

Toyota Dyna

Production Mar 1978 - Apr 1981
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

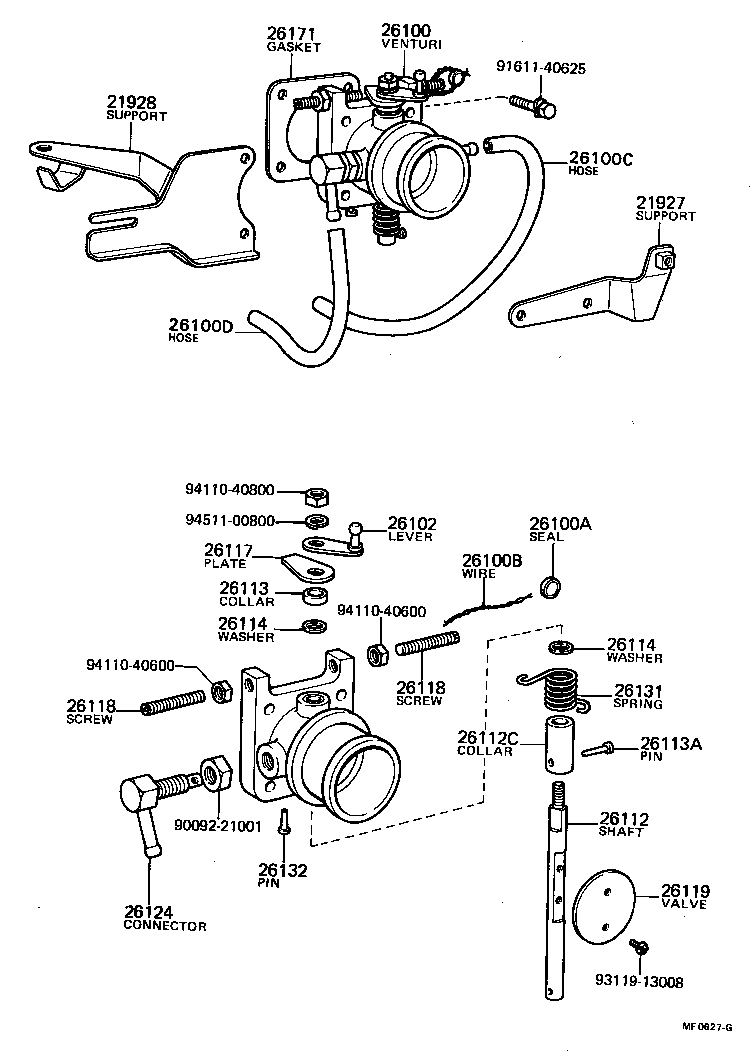

(7708-8008)B

Click highlighted areas on diagram

diagram 21927 21928 26100 26100A 26100B 26100C 26100D 26102 26112 26112C 26113 26113A 26114 26114 26117 26118 26118 26119 26124 26131 26132 26171 9009221001 9161140625 9311913008 9411040600 9411040600 9411040800 9451100800
Part # Description Qty Price
21927 - SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)
21927-56020

B..BU2#,30

W/O EDIC

 1
21928 - SUPPORT, THROTTLE WIRE
21928-56060

B..BU2#,30

W/O EDIC

 1
26100 - VENTURI ASSY
26100-56030

B..BU2#,30

 1
26100A - SEAL, LEAD
22354-77050

B,2B,3B..BU2#,3#,40

 1
26100B - WIRE, SEAL
22355-36010

B,2B,3B..BU2#,3#,40

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90447-12001

B..BU2#,30

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90447-12002

B,2B,3B..BU2#,3#,40

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-56030

B..BU2#,30

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56030

B..BU2#,30;2B..BU31..CBU

 1
26112C - COLLAR, ADJUSTING
26113-56010

B..BU2#,30

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-47020

B..BU2#,30

 1
26113A - PIN, THROTTLE VALVE SHAFT
26132-56011

B,2B,3B..BU2#,3#,40

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,2B,3B..BU2#,3#,40

T=0.1,T=0.1

 2
26116-76010

B,2B,3B..BU2#,3#,40

T=0.5,T=0.5

 2
26115-76010

B,2B,3B..BU2#,3#,40

T=0.2,T=0.2

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,2B,3B..BU2#,3#,40

T=0.1,T=0.1

 2
26116-76010

B,2B,3B..BU2#,3#,40

T=0.5,T=0.5

 2
26115-76010

B,2B,3B..BU2#,3#,40

T=0.2,T=0.2

 2
26117 - PLATE, THROTTLE VALVE SHAFT STOP
26117-56010

B..BU2#,30

 1
26117-56010

B..BU2#,30

 1
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

B..BU2#,30

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

B..BU2#,30

 2
26119 - VALVE, VENTURI THROTTLE
26119-56030

B..BU20,25,30;2B..BU31..CBU

 1
26124 - CONNECTOR, VENTURI PIPE
26124-56030

B,2B,3B..BU2#,3#

 1
26131 - SPRING, RETURN
26131-56010

B,2B,3B..BU2#,3#,40

 1
26132 - PIN
26132-56010

B,2B,3B..BU2#,3#,40

 2
26171 - GASKET, VENTURI
26171-56010

B..BU2#,30

 1
Common parts
90092-21001
91611-40625
93119-13008
94110-40600
94110-40800
94511-00800

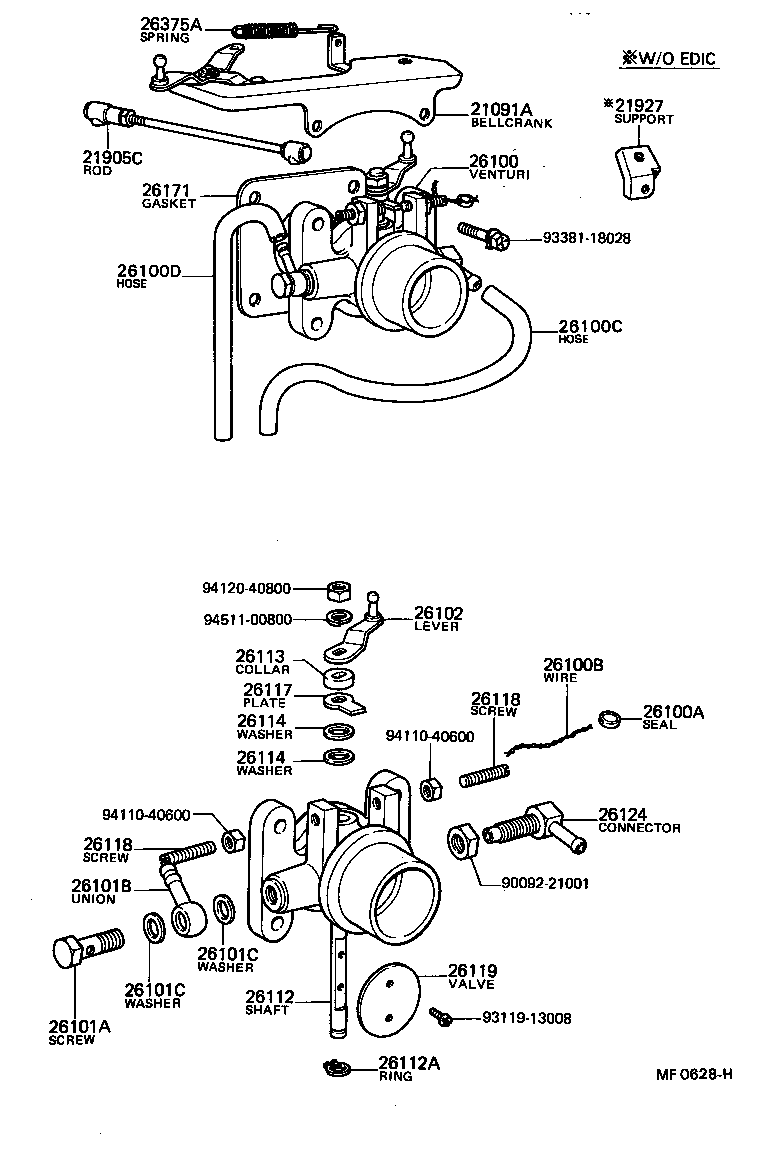

(7708-8104)H

Click highlighted areas on diagram

diagram 21091A 21905C 21927 26100 26100A 26100B 26100C 26100D 26101A 26101B 26101C 26101C 26102 26112 26112A 26113 26114 26114 26117 26118 26118 26119 26124 26171 26375A 9009221001 9311913008 9338118028 9411040600 9411040600 9412040800 9451100800
Part # Description Qty Price
21927 - SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)
21927-56020

B..BU2#,30

W/O EDIC

 1
26100 - VENTURI ASSY
26100-56030

B..BU2#,30

 1
26100A - SEAL, LEAD
22354-77050

B,2B,3B..BU2#,3#,40

 1
26100B - WIRE, SEAL
22355-36010

B,2B,3B..BU2#,3#,40

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90447-12001

B..BU2#,30

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90447-12002

B,2B,3B..BU2#,3#,40

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-56030

B..BU2#,30

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56030

B..BU2#,30;2B..BU31..CBU

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-47020

B..BU2#,30

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,2B,3B..BU2#,3#,40

T=0.1,T=0.1

 2
26116-76010

B,2B,3B..BU2#,3#,40

T=0.5,T=0.5

 2
26115-76010

B,2B,3B..BU2#,3#,40

T=0.2,T=0.2

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,2B,3B..BU2#,3#,40

T=0.1,T=0.1

 2
26116-76010

B,2B,3B..BU2#,3#,40

T=0.5,T=0.5

 2
26115-76010

B,2B,3B..BU2#,3#,40

T=0.2,T=0.2

 2
26117 - PLATE, THROTTLE VALVE SHAFT STOP
26117-56010

B..BU2#,30

 1
26117-56010

B..BU2#,30

 1
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

B..BU2#,30

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

B..BU2#,30

 2
26119 - VALVE, VENTURI THROTTLE
26119-56030

B..BU20,25,30;2B..BU31..CBU

 1
26124 - CONNECTOR, VENTURI PIPE
26124-56030

B,2B,3B..BU2#,3#

 1
26171 - GASKET, VENTURI
26171-56010

B..BU2#,30

 1
Common parts
90092-21001
93119-13008
93381-18028
94110-40600
94120-40800
94511-00800

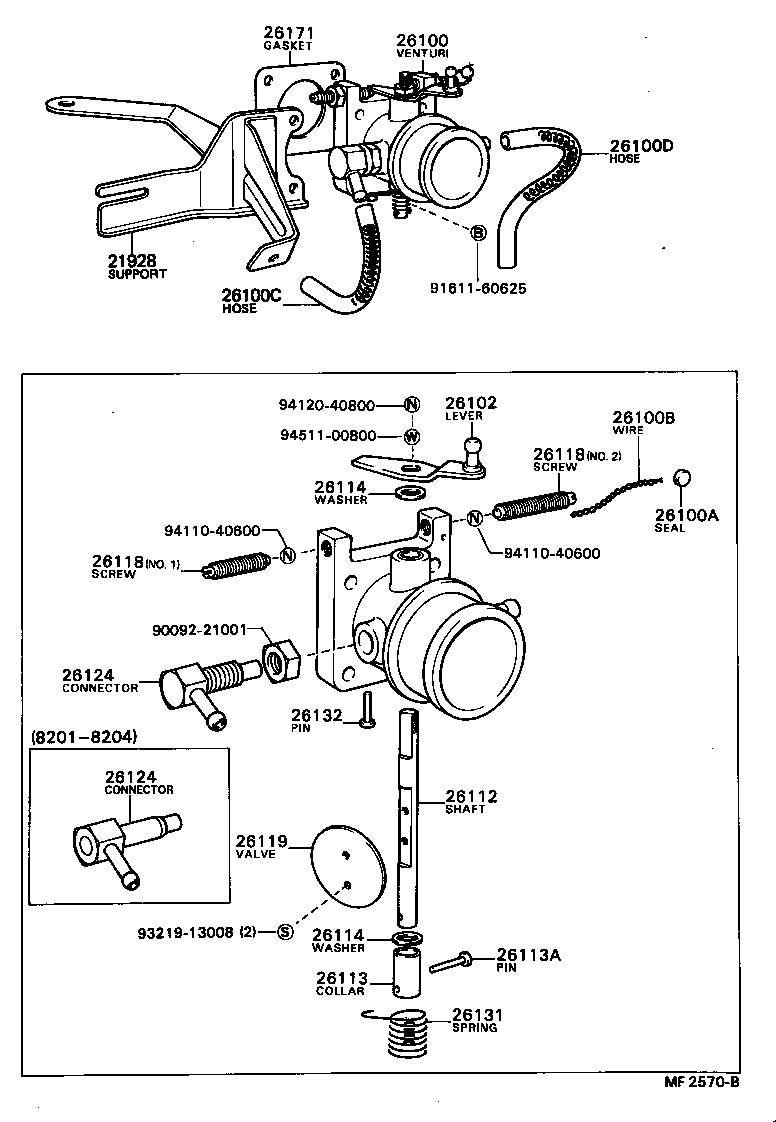

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 21928 26100 26100A 26100B 26100C 26100D 26102 26112 26113 26113A 26114 26114 26118 26118 26119 26124 26124 26131 26132 26171 9009221001 9161160625 9321913008 9411040600 9411040600 9412040800 9451100800
Part # Description Qty Price
21928 - SUPPORT, THROTTLE WIRE
21928-56060

B..BU2#,30

W/O EDIC

 1
26100 - VENTURI ASSY
26100-56030

B..BU2#,30

 1
26100A - SEAL, LEAD
22354-77050

B,2B,3B..BU2#,3#,40

 1
26100B - WIRE, SEAL
22355-36010

B,2B,3B..BU2#,3#,40

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90447-12001

B..BU2#,30

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90447-12002

B,2B,3B..BU2#,3#,40

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-56030

B..BU2#,30

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56030

B..BU2#,30;2B..BU31..CBU

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-47020

B..BU2#,30

 1
26113A - PIN, THROTTLE VALVE SHAFT
26132-56011

B,2B,3B..BU2#,3#,40

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,2B,3B..BU2#,3#,40

T=0.1,T=0.1

 2
26116-76010

B,2B,3B..BU2#,3#,40

T=0.5,T=0.5

 2
26115-76010

B,2B,3B..BU2#,3#,40

T=0.2,T=0.2

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,2B,3B..BU2#,3#,40

T=0.1,T=0.1

 2
26116-76010

B,2B,3B..BU2#,3#,40

T=0.5,T=0.5

 2
26115-76010

B,2B,3B..BU2#,3#,40

T=0.2,T=0.2

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

B..BU2#,30

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

B..BU2#,30

 2
26119 - VALVE, VENTURI THROTTLE
26119-56030

B..BU20,25,30;2B..BU31..CBU

 1
26124 - CONNECTOR, VENTURI PIPE
26124-56030

B,2B,3B..BU2#,3#

 1
26124 - CONNECTOR, VENTURI PIPE
26124-56030

B,2B,3B..BU2#,3#

 1
26131 - SPRING, RETURN
26131-56010

B,2B,3B..BU2#,3#,40

 1
26132 - PIN
26132-56010

B,2B,3B..BU2#,3#,40

 2
26171 - GASKET, VENTURI
26171-56010

B..BU2#,30

 1
Common parts
90092-21001
91611-60625
93219-13008
94110-40600
94120-40800
94511-00800
