BU20R-MRLT (1983)
Toyota Dyna
Production
Feb 1983
-
Aug 1984
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8302-8408)BU20..TB

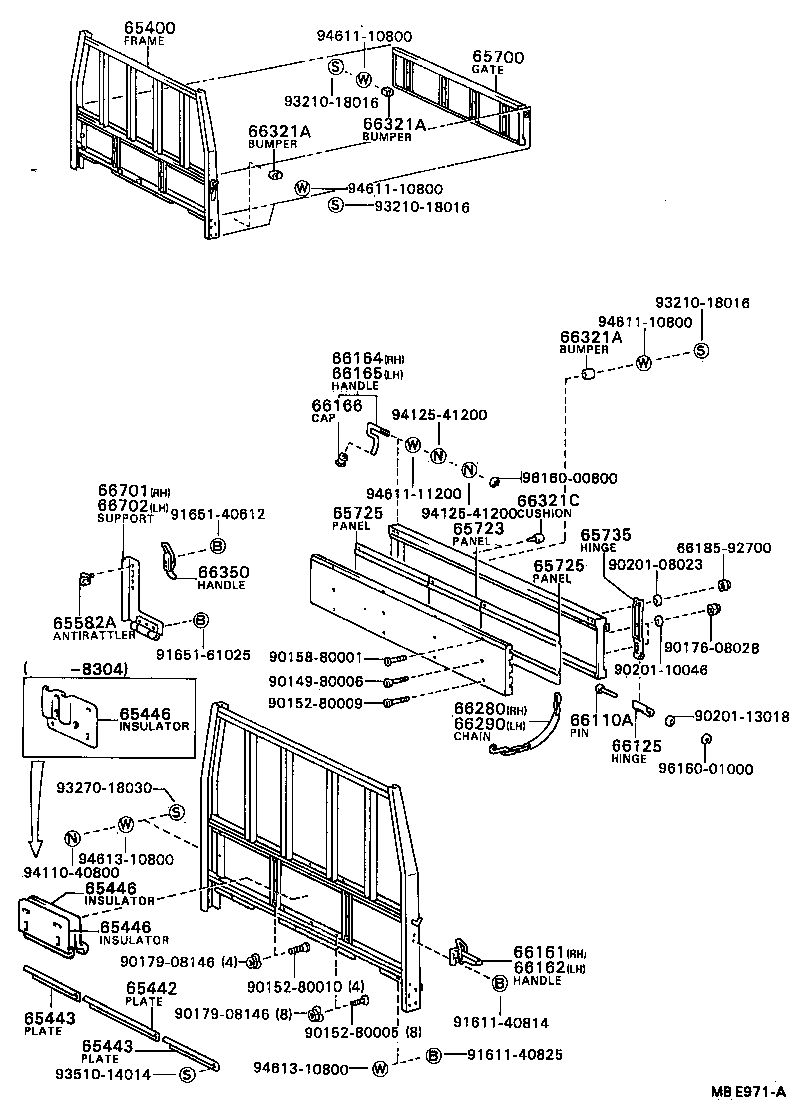

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-92741 |
BU20..TB |
1 | ||
| 65442 - PLATE, BAFFLE DUST REAR BODY, CENTER | ||||
| 65442-92700 |
BU20..TB |
1 | ||
| 65443 - PLATE, BAFFLE DUST REAR BODY | ||||
| 65443-92700 |
BU20..TB |
2 | ||
| 65443 - PLATE, BAFFLE DUST REAR BODY | ||||
| 65443-92700 |
BU20..TB |
2 | ||
| 65446 - INSULATOR, HEADER BOARD | ||||
| 65446-92741 |
BU20..TB INNER |
1 | ||
| 65446-92741 |
BU20..TB |
1 | ||
| 65446-92742 |
BU20..TB OUTER |
1 | ||
| 65446 - INSULATOR, HEADER BOARD | ||||
| 65446-92741 |
BU20..TB INNER |
1 | ||
| 65446-92741 |
BU20..TB |
1 | ||
| 65446-92742 |
BU20..TB OUTER |
1 | ||
| 65446 - INSULATOR, HEADER BOARD | ||||
| 65446-92741 |
BU20..TB INNER |
1 | ||
| 65446-92741 |
BU20..TB |
1 | ||
| 65446-92742 |
BU20..TB OUTER |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-92709 |
BU20..TB |
1 | ||
| 65723 - PANEL, TAIL GATE | ||||
| 65723-92702 |
BU20..TB |
1 | ||
| 65725 - PANEL, TAIL GATE SIDE | ||||
| 65725-92703 |
BU20..TB |
2 | ||
| 65725 - PANEL, TAIL GATE SIDE | ||||
| 65725-92703 |
BU20..TB |
2 | ||
| 66110A - PIN, TAIL GATE HINGE | ||||
| 66115-92700 |
BU20,3#,40,HU30,40,50,RU30,WU40..TB |
4 | ||
| 66125 - HINGE, TAIL GATE, FEMALE | ||||
| 66113-92700 |
BU20,3#,40,HU30,40,50,RU30,WU40..TB |
4 | ||
| 66161 - HANDLE, SIDE GATE LATCH, RH | ||||
| 65480-92700 |
BU20..TB |
1 | ||
| 66162 - HANDLE, SIDE GATE LATCH, LH | ||||
| 65490-92701 |
BU20..TB |
1 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-92201 |
BU20,30,32,36,40,HU40,50,RU30,WU40..TB |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-92201 |
BU20,30,32,36,40,HU40,50,RU30,WU40..TB |
1 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66322-92800 |
BU20..TB OD=36 |
2 | ||
| 66324-92700 |
BU20,30..T2 36X44 |
4 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66322-92800 |
BU20..TB OD=36 |
2 | ||
| 66324-92700 |
BU20,30..T2 36X44 |
4 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66322-92800 |
BU20..TB OD=36 |
2 | ||
| 66324-92700 |
BU20,30..T2 36X44 |
4 | ||
| 66321C - CUSHION, SUPPORT CORNER | ||||
| 66321-92703 |
BU20,3#,40,HU30,40,50,RU30,WU40..TB |
2 | ||
| Common parts | ||||
| 66185-92700 | ||||
| 90149-80006 | ||||
| 90152-80005 | ||||
| 90152-80009 | ||||
| 90152-80010 | ||||
| 90158-80001 | ||||
| 90176-08028 | ||||
| 90179-08146 | ||||
| 90201-08023 | ||||
| 90201-10046 | ||||
| 90201-13018 | ||||
| 91611-40814 | ||||
| 91611-40825 | ||||
| 91651-40612 | ||||
| 91651-61025 | ||||
| 93210-18016 | ||||
| 93270-18030 | ||||
| 93510-14014 | ||||
| 94110-40800 | ||||
| 94125-41200 | ||||
| 94611-10800 | ||||
| 94611-11200 | ||||
| 94613-10800 | ||||
| 96160-00800 | ||||
| 96160-01000 | ||||
