BU20R-MRLT (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

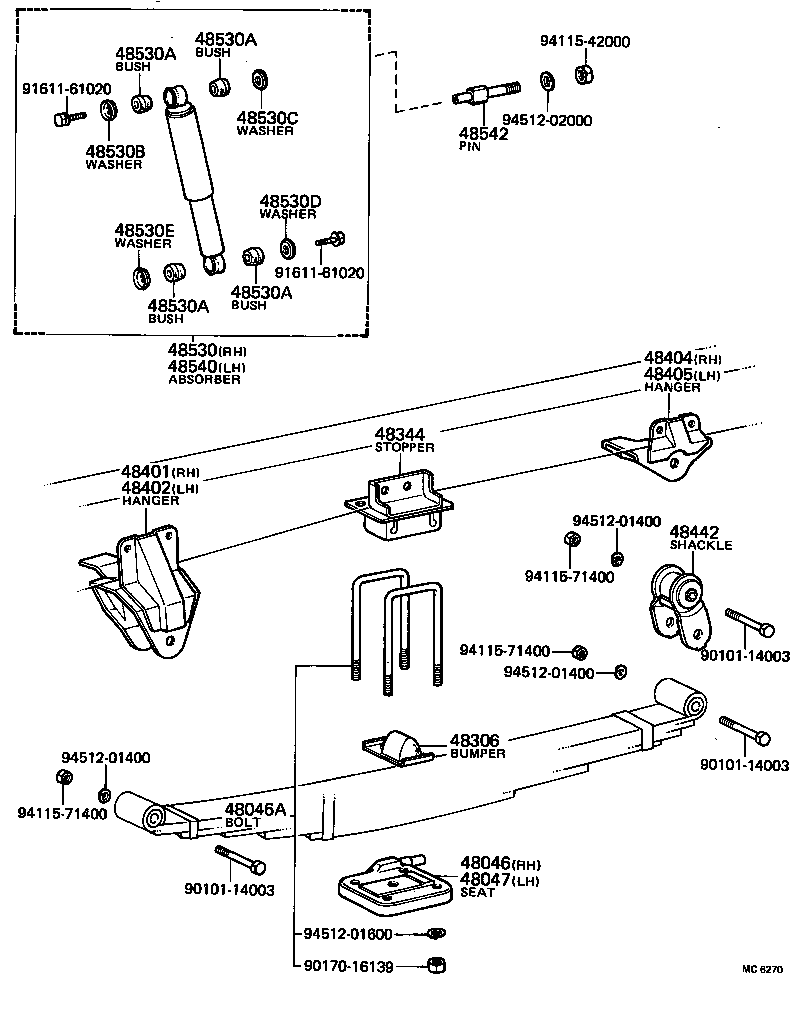

(8302-8408)BU20..TB

Click highlighted areas on diagram

diagram 48046 48046A 48047 48306 48344 48401 48402 48404 48405 48442 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 48542 9010114003 9010114003 9010114003 9017016139 9161161020 9161161020 9411542000 9411571400 9411571400 9411571400 9451201400 9451201400 9451201400 9451201600 9451202000
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36140

BU20..TB

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-16065

BU20,30,RU20,30..WT

L=255,L=255

 4
90118-16156

BU20..TB

L=220

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36140

BU20..TB

 1
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-36031

BU20..TB

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-36090

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-36090

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-36110

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-36110

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48442 - SHACKLE, SPRING, NO.2
48042-36020

BU2#,30,HU30,JU20,RU2#,30

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39275

BU2#,30,HU30,RU2#,30..WT

 1
48531-39445

BU20..TB

MARK 48531-36070

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU20..TB

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

BU20..TB

 2
90948-03003

BU2#,3#,HU30,JU20,RU2#,30

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU2#,3#,HU30,JU20,RU2#,30

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39445

BU20..TB

MARK 48531-36070

 1
48531-39275

BU2#,30,HU30,RU2#,30..WT

 1
48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR
48542-36040

BU20..TB

 2
Common parts
90101-14003
90170-16139
91611-61020
94115-42000
94115-71400
94512-01400
94512-01600
94512-02000

(8302-8408)BU20..TB

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48241 48242 48246 48247 48256 9411040800 9411041000 9511101022 9511101024
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36190

BU20,RU20..WT

10-LEAF SPRING

 1
48210-36342

BU20..TB

6-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36190

BU20,RU20..WT

10-LEAF SPRING

 2
48201-36340

BU20..TB

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36190

BU20,RU20..WT

10-LEAF SPRING

 2
48212-36341

BU20..TB

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36190

BU20,RU20..WT

10-LEAF SPRING

 2
48202-36340

BU20..TB

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36190

BU20,RU20..WT

10-LEAF SPRING

 2
48214-36340

BU20..TB

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36190

BU20,RU20..WT

10-LEAF SPRING

 2
48215-36340

BU20..TB

 2
48216 - LEAF, REAR SPRING, NO.6
48203-36340

BU20..TB

 2
48220 - SPRING ASSY, REAR LH
48210-36190

BU20,RU20..WT

10-LEAF SPRING

 1
48210-36342

BU20..TB

6-LEAF

 1
48241 - CLIP, REAR SPRING, NO.1
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48241-36210

BU20..TB

 4
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36210

BU20..TB

 2
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

BU20..TB

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36270

BU20,RU20..WT

10-LEAF SPRING

 2
48247-36030

BU20..TB

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

BU20..TB

 2
Common parts
94110-40800
94110-41000
95111-01022
95111-01024
