BU20LV-QRW (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)HRF,SRF

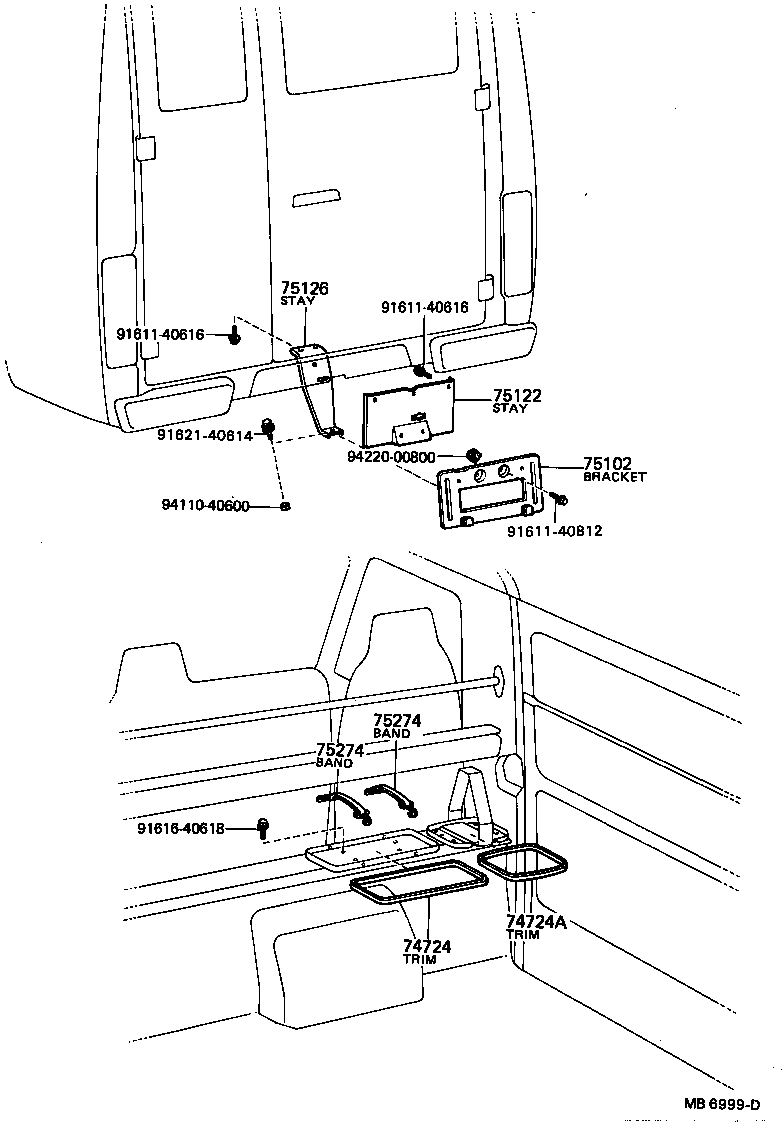

Click highlighted areas on diagram

diagram 74724 74724A 75102 75122 75126 75274 75274 9161140616 9161140616 9161140812 9161640618 9162140614 9411040600 9422000800
Part # Description Qty Price
74724 - TRIM, TOOL BACK PLATFORM
74724-92605

BU20,JU20,RU20..V

 1
74724A - TRIM, TOOL JACK PLATFORM
74725-92605

BU20,JU20,RU20..V

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-95402

BU20,JU20..V..EUR

 1
75122 - STAY, REAR LICENSE PLATE BRACKET, UPPER
75111-92605

BU20,JU20,RU20..HRF,SRF

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
75112-92605

BU20,JU20,RU20..HRF,SRF

 1
75274 - BAND, TOOL BOX HOLDER
74702-92605

BU20,JU20,RU20..HRF,SRF

 2
75274 - BAND, TOOL BOX HOLDER
74702-92605

BU20,JU20,RU20..HRF,SRF

 2
Common parts
91611-40616
91611-40812
91616-40618
91621-40614
94110-40600
94220-00800

(7708- )

Click highlighted areas on diagram

diagram 74701 75021 75111 75135 75136 75137 75204 75204A 75221 9011906186 9015480009 9015480009 9161140616 9161640618 9165540818 9166140616 9354014512 9411040600 9461410800 9616000300
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-95404

BU2#,30,31,32,HU30,JU20,RU2#,30

 1
Common parts
90119-06186
90154-80009
91611-40616
91616-40618
91655-40818
91661-40616
93540-14512
94110-40600
94614-10800
96160-00300
