YXS10R-AESBN (1999)
Toyota Crown Comfort
Production
Aug 1999
-
Aug 2008
Engine
3YPE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )YXS10..4H

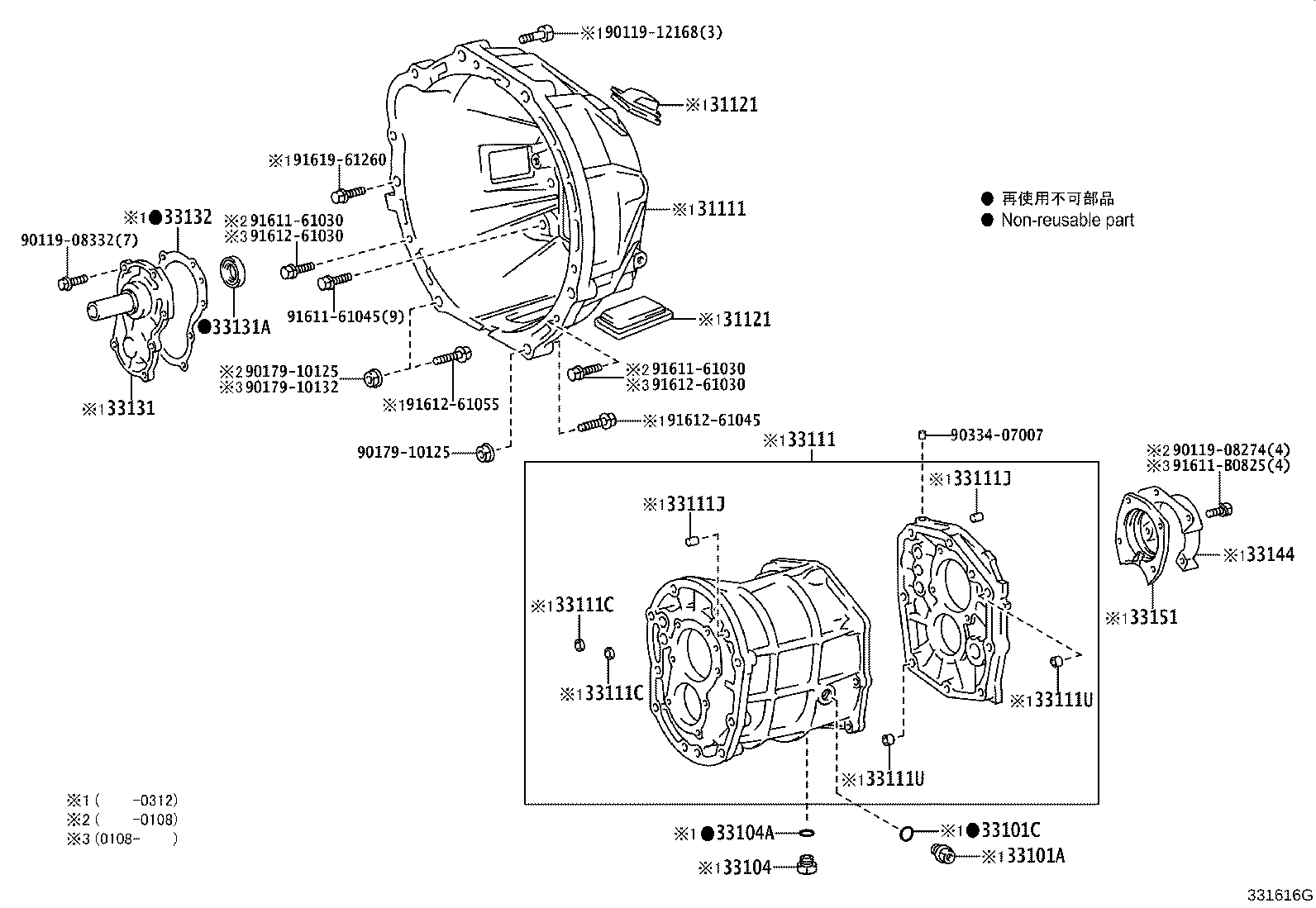

Click highlighted areas on diagram
N45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-20230 |
YXS10..4H |
1 | ||
| 31111-20230 |
YXS10..4H |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-35020 |
YXS10..4H UPPER |
1 | ||
| 31121-20020 |
YXS10..4H LOWER |
1 | ||
| 31121-20020 |
YXS10..4H LOWER |
1 | ||
| 31121-35020 |
YXS10..4H UPPER |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-35020 |
YXS10..4H UPPER |
1 | ||
| 31121-20020 |
YXS10..4H LOWER |
1 | ||
| 31121-20020 |
YXS10..4H LOWER |
1 | ||
| 31121-35020 |
YXS10..4H UPPER |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LXS1#,YXS10..4H |
1 | ||
| 90341-18057 |
YXS10..4H |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-30063 |
LXS1#,YXS10..4H |
1 | ||
| 33101-30063 |
YXS10..4H |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LXS1#,YXS10..4H OD=14 |
2 | ||
| 90331-14004 |
YXS10..4H OD=14 |
2 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LXS1#,YXS10..4H OD=14 |
2 | ||
| 90331-14004 |
YXS10..4H OD=14 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
YXS10..4H L=16,OD=12 |
4 | ||
| 90250-12002 |
LXS1#,YXS10..4H L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
YXS10..4H L=16,OD=12 |
4 | ||
| 90250-12002 |
LXS1#,YXS10..4H L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LXS1#,YXS10..4H L=14,OD=15 |
2 | ||
| 90253-15001 |
YXS10..4H L=14,OD=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LXS1#,YXS10..4H L=14,OD=15 |
2 | ||
| 90253-15001 |
YXS10..4H L=14,OD=15 |
2 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-30062 |
LXS1#,YXS10..4H |
1 | ||
| 33131-30062 |
YXS10..4H |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30061 |
LXS1#,YXS10..4H |
1 | ||
| 33132-30061 |
YXS10..4H |
1 | ||
| 33144 - DEFLECTOR, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-43010 |
YXS10..4H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-30040 |
LXS1#,YXS10..4H |
1 | ||
| 33151-30040 |
YXS10..4H |
1 | ||
| Common parts | ||||
| 90119-08274 | ||||
| 90119-08332 | ||||
| 90119-12168 | ||||
| 90179-10125 | ||||
| 90179-10132 | ||||
| 90334-07007 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
| 91611-B0825 | ||||
| 91612-61030 | ||||
| 91612-61045 | ||||
| 91612-61055 | ||||
| 91619-61260 | ||||
