YXS10R-AEJBN (1999)
Toyota Crown Comfort

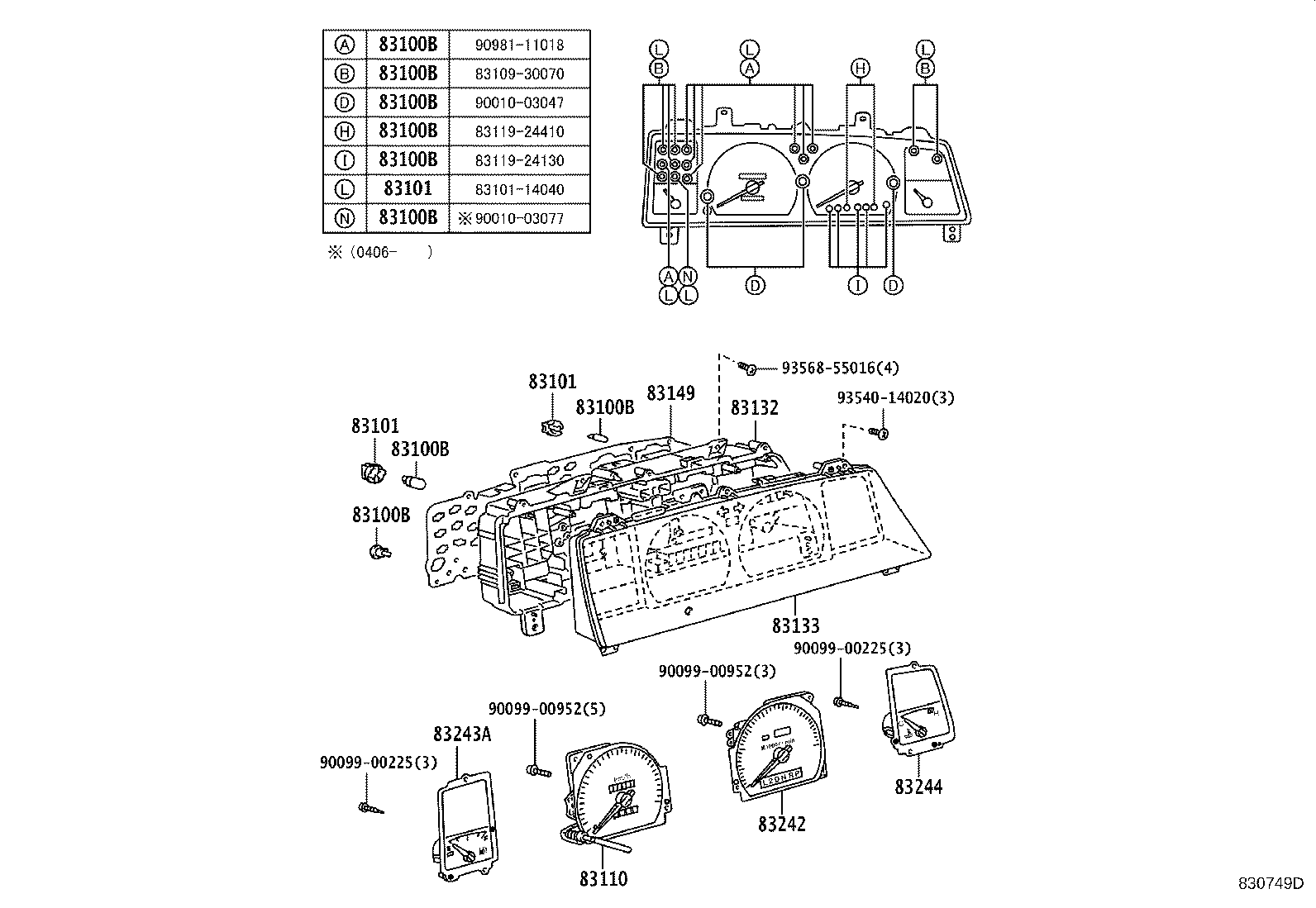

ILLUST NO. 1 OF 2(9908-0108)YXS10
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-43040 |
YXS10 W(TACHOMETER) |
1 | ||
| 83110-3A890 |
YXS10 |
1 | ||
| 83220-43060 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83220-43070 |
YXS10..4H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A740 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43360 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43211 |
YXS10..4H |
1 | ||
| 83841-43460 |
YXS10..4H |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30410 |
YXS10 W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83133-30410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-43210 |
YXS10..4H |
1 | ||
| 83861-43460 |
YXS10..4H |
1 | ||
| 83861-43410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43300 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43461 |
YXS10..4H |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-43360 |
YXS10..4H |
1 | ||
| 83881-43030 |
YXS10..4H |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-43200 |
YXS10..4H |
1 | ||
| 83882-43290 |
YXS10 W(TACHOMETER) |
1 | ||
| 83882-43200 |
YXS10 |
1 | ||
| 83882-43400 |
YXS10..4H HONGKONG SPEC & W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-43290 |
YXS10 |
1 | ||
| 83883-43400 |
YXS10..4H |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00952 | ||||
| 93540-14020 | ||||

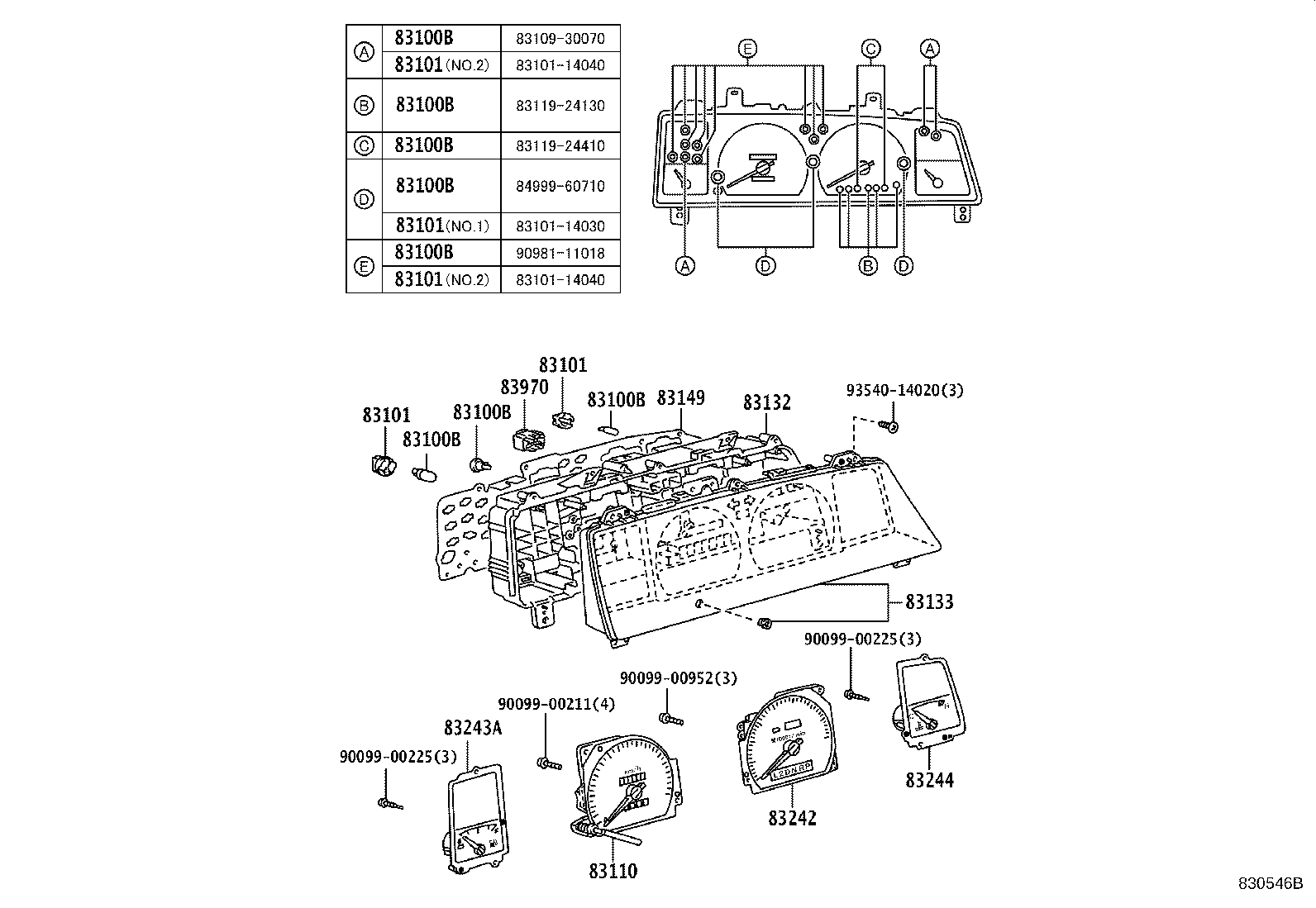

ILLUST NO. 1 OF 2(9601-0108)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-43040 |
YXS10 W(TACHOMETER) |
1 | ||
| 83110-3A890 |
YXS10 |
1 | ||
| 83220-43060 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83220-43070 |
YXS10..4H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A740 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43360 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43211 |
YXS10..4H |
1 | ||
| 83841-43460 |
YXS10..4H |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30410 |
YXS10 W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83133-30410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-43210 |
YXS10..4H |
1 | ||
| 83861-43460 |
YXS10..4H |
1 | ||
| 83861-43410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43300 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43461 |
YXS10..4H |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-43200 |
YXS10..4H |
1 | ||
| 83882-43290 |
YXS10 W(TACHOMETER) |
1 | ||
| 83882-43200 |
YXS10 |
1 | ||
| 83882-43400 |
YXS10..4H HONGKONG SPEC & W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 2(0108- )LXS12,YXS10
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-43040 |
YXS10 W(TACHOMETER) |
1 | ||
| 83110-3A890 |
YXS10 |
1 | ||
| 83220-43060 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83220-43070 |
YXS10..4H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A740 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43360 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43211 |
YXS10..4H |
1 | ||
| 83841-43460 |
YXS10..4H |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30410 |
YXS10 W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83133-30410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-43210 |
YXS10..4H |
1 | ||
| 83861-43460 |
YXS10..4H |
1 | ||
| 83861-43410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43300 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43461 |
YXS10..4H |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-43200 |
YXS10..4H |
1 | ||
| 83882-43290 |
YXS10 W(TACHOMETER) |
1 | ||
| 83882-43200 |
YXS10 |
1 | ||
| 83882-43400 |
YXS10..4H HONGKONG SPEC & W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00225 | ||||
| 90099-00952 | ||||
| 93540-14020 | ||||
| 93568-55016 | ||||

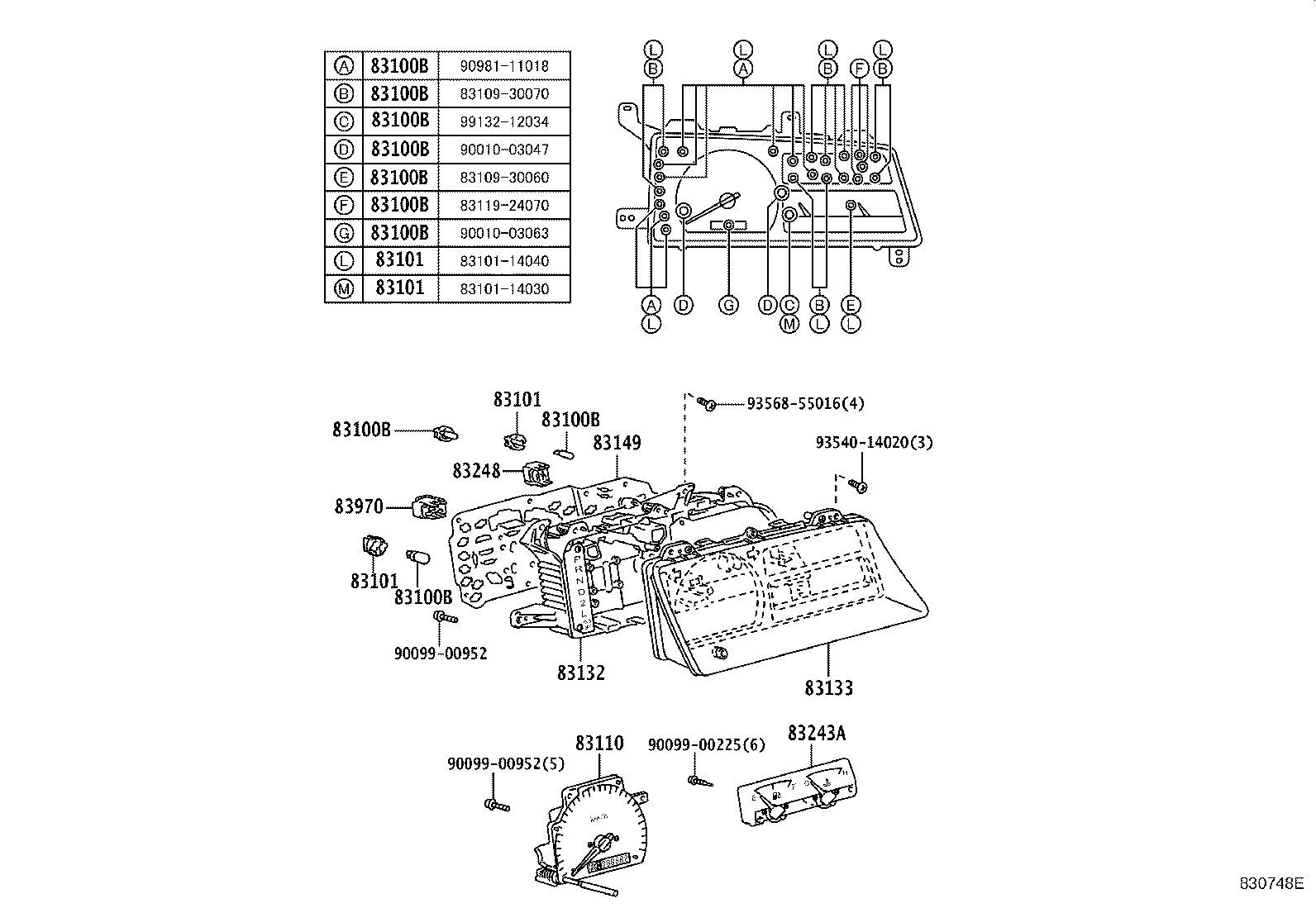

ILLUST NO. 1 OF 2(0108- )YXS10
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-24030 |
YXS10..4H 12V3.4W W(GREEN CAP) |
1 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90010-03047 |
LXS12,YXS10 14V 3.8W,W(SOCKET) |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14040 |
YXS10..4H TYPE L:REFER ILLUST. |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-43040 |
YXS10 W(TACHOMETER) |
1 | ||
| 83110-3A890 |
YXS10 |
1 | ||
| 83220-43060 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83220-43070 |
YXS10..4H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A740 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43360 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83841-43211 |
YXS10..4H |
1 | ||
| 83841-43460 |
YXS10..4H |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30410 |
YXS10 W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83133-30410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83811-43090 |
YXS10..4H |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-43210 |
YXS10..4H |
1 | ||
| 83861-43460 |
YXS10..4H |
1 | ||
| 83861-43410 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43300 |
YXS10..4H W(TACHOMETER) |
1 | ||
| 83861-43461 |
YXS10..4H |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-43360 |
YXS10..4H |
1 | ||
| 83881-43030 |
YXS10..4H |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-43200 |
YXS10..4H |
1 | ||
| 83882-43290 |
YXS10 W(TACHOMETER) |
1 | ||
| 83882-43200 |
YXS10 |
1 | ||
| 83882-43400 |
YXS10..4H HONGKONG SPEC & W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-43290 |
YXS10 |
1 | ||
| 83883-43400 |
YXS10..4H |
1 | ||
| Common parts | ||||
| 90099-00225 | ||||
| 90099-00952 | ||||
| 93540-14020 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
