YXS10R-AEJBN (1999)

Toyota Crown Comfort

Production Aug 1999 - Dec 2003

Engine 3YPE

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9908- )YXS10

Click highlighted areas on diagram

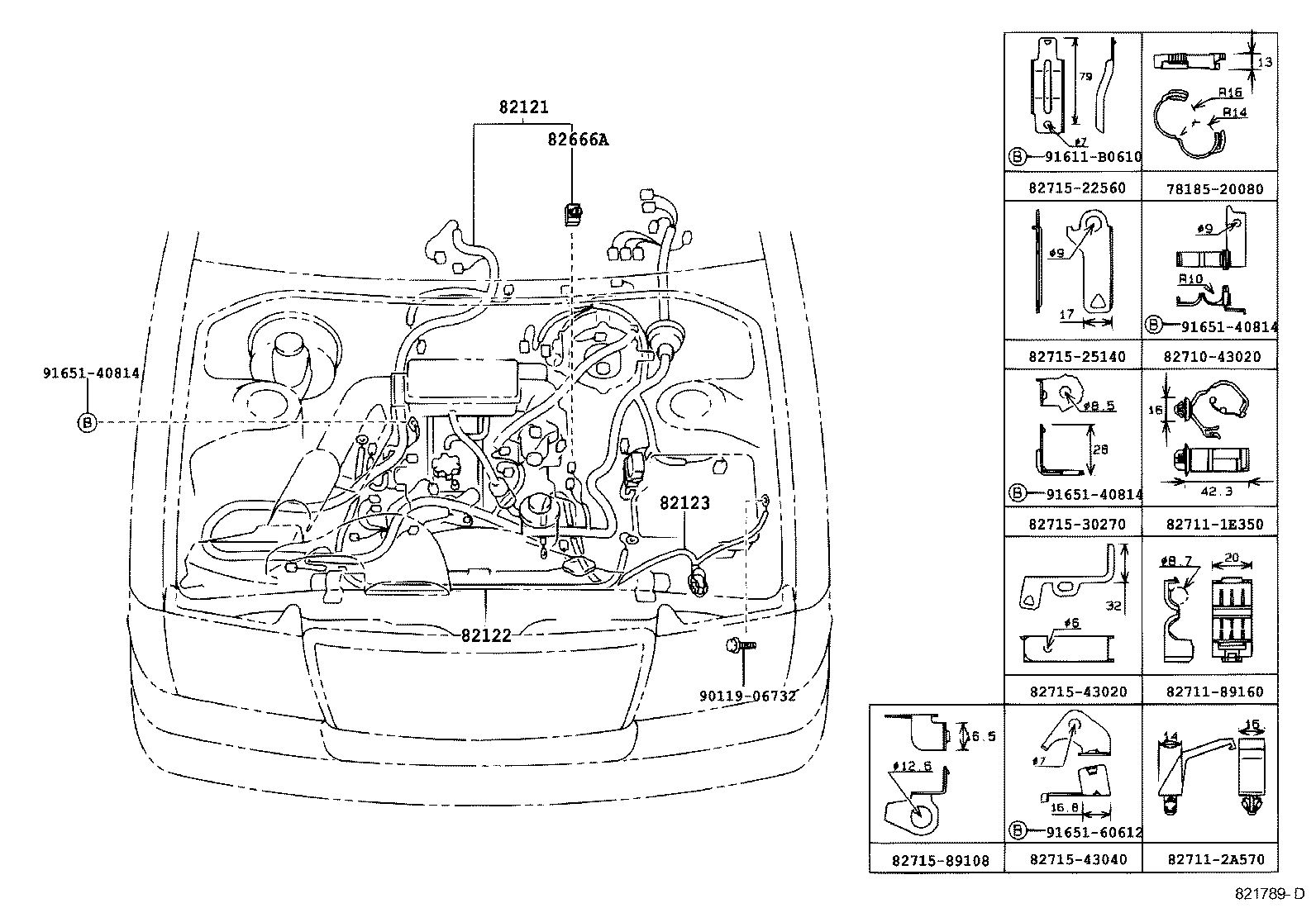

ENGINE WIRE

diagram

Part #	Description	Period	Qty	Price
82121 - WIRE, ENGINE
82121-43044	YXS10..4H	08/2001 - 10/2002	1
82121-43043	YXS10..4H	01/2000 - 08/2001	1
82121-43045	YXS10..4H	10/2002 - 12/2003	1
82121-43042	YXS10..4H	08/1999 - 01/2000	1
82122 - WIRE, ENGINE, NO.2
82122-43011	YXS10..4H	08/2001 - 12/2003	1
82122-43010	YXS10	08/1999 - 08/2001	1
82123 - WIRE, ENGINE, NO.3
82123-43010	YXS10	08/1999 - 08/2001	1
82123-43010	YXS10..4H	08/2001 - 12/2003	1
82666A - HOLDER, CONNECTOR NO.2
82666-43040	YXS10..4H	08/2001 - 12/2003	1
Common parts
78185-20080
82710-43020
82711-1E350
82711-2A570
82711-89160
82715-22560
82715-25140
82715-30270
82715-43020
82715-43040
82715-89108
90119-06732
91611-B0610
91651-40814
91651-60612

ILLUST NO. 7 OF 9(9908- )YXS10

Click highlighted areas on diagram

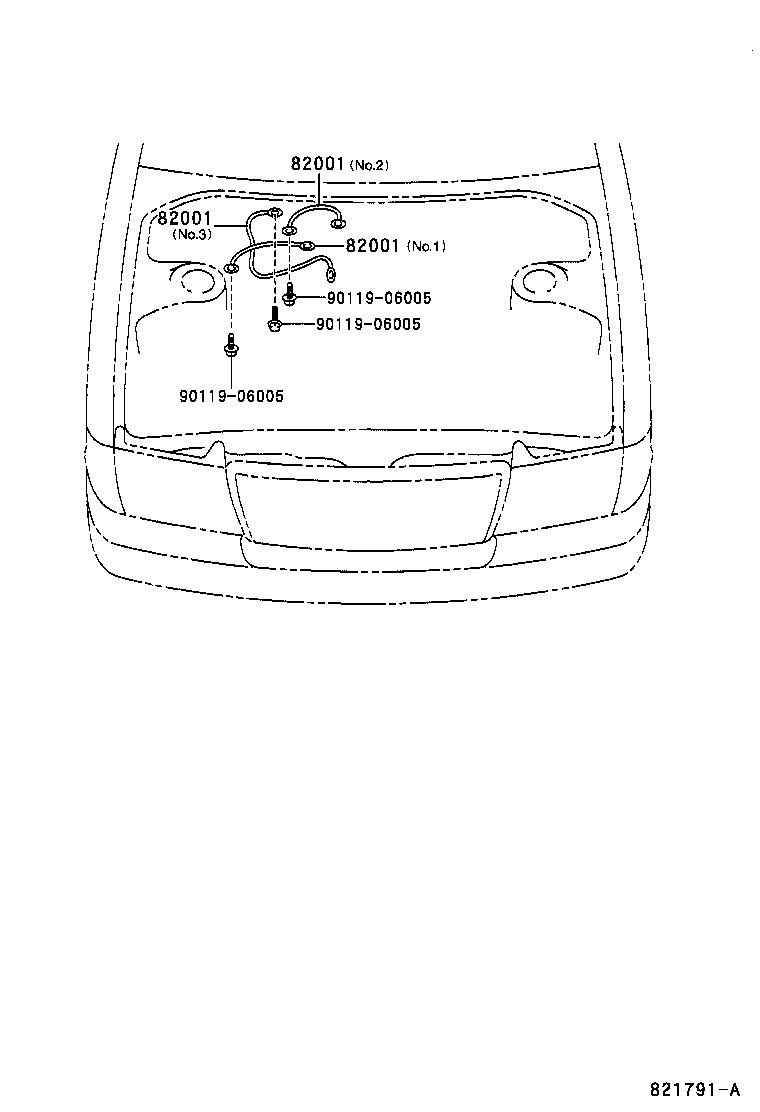

CABLE BOND

diagram

Part #	Description	Period	Qty	Price
82001 - CABLE, BOND, NO.1
90980-07156	YXS10 NO.1,2	08/1999 - 08/2001	2
90980-07225	YXS10 NO.3	08/1999 - 08/2001	1
90980-07156	YXS10..4H NO.1,NO.2	08/2001 - 12/2003	2
90980-07225	YXS10..4H NO.3	08/2001 - 12/2003	1
82001 - CABLE, BOND, NO.1
90980-07156	YXS10 NO.1,2	08/1999 - 08/2001	2
90980-07225	YXS10 NO.3	08/1999 - 08/2001	1
90980-07156	YXS10..4H NO.1,NO.2	08/2001 - 12/2003	2
90980-07225	YXS10..4H NO.3	08/2001 - 12/2003	1
82001 - CABLE, BOND, NO.1
90980-07156	YXS10 NO.1,2	08/1999 - 08/2001	2
90980-07225	YXS10 NO.3	08/1999 - 08/2001	1
90980-07156	YXS10..4H NO.1,NO.2	08/2001 - 12/2003	2
90980-07225	YXS10..4H NO.3	08/2001 - 12/2003	1
Common parts
90119-06005
