TSS10R-AEPBC (2008)
Toyota Crown Comfort
Production
Aug 2008
-
Jan 2018
Engine
1TRFPE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0808- )

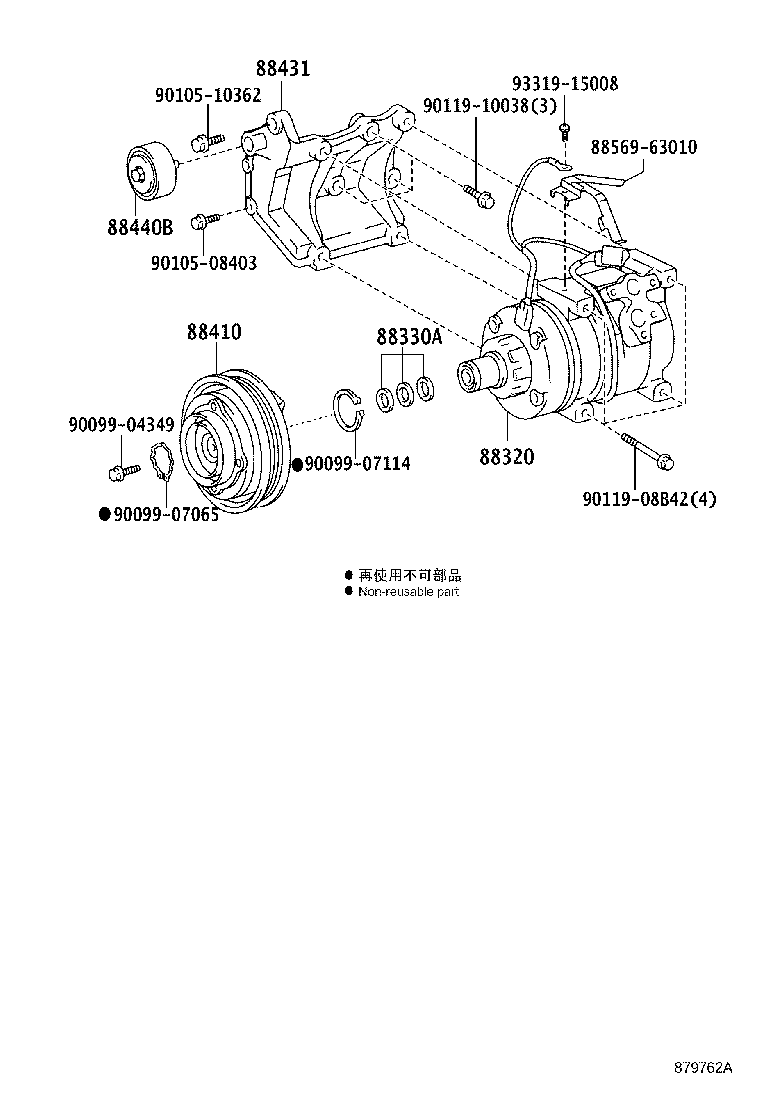

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-43110 |
TSS10 |
1 | ||
| 88320-43090 |
TSS10 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-43060 |
TSS10 |
1 | ||
| 88410-42080 |
TSS10 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-43050 |
TSS10 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-25070 |
TSS10 |
1 | ||
| Common parts | ||||
| 88569-63010 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-08403 | ||||
| 90105-10362 | ||||
| 90119-08B42 | ||||
| 90119-10038 | ||||
| 93319-15008 | ||||
