LXS10R-AEMBS (1996)
Toyota Crown Comfort

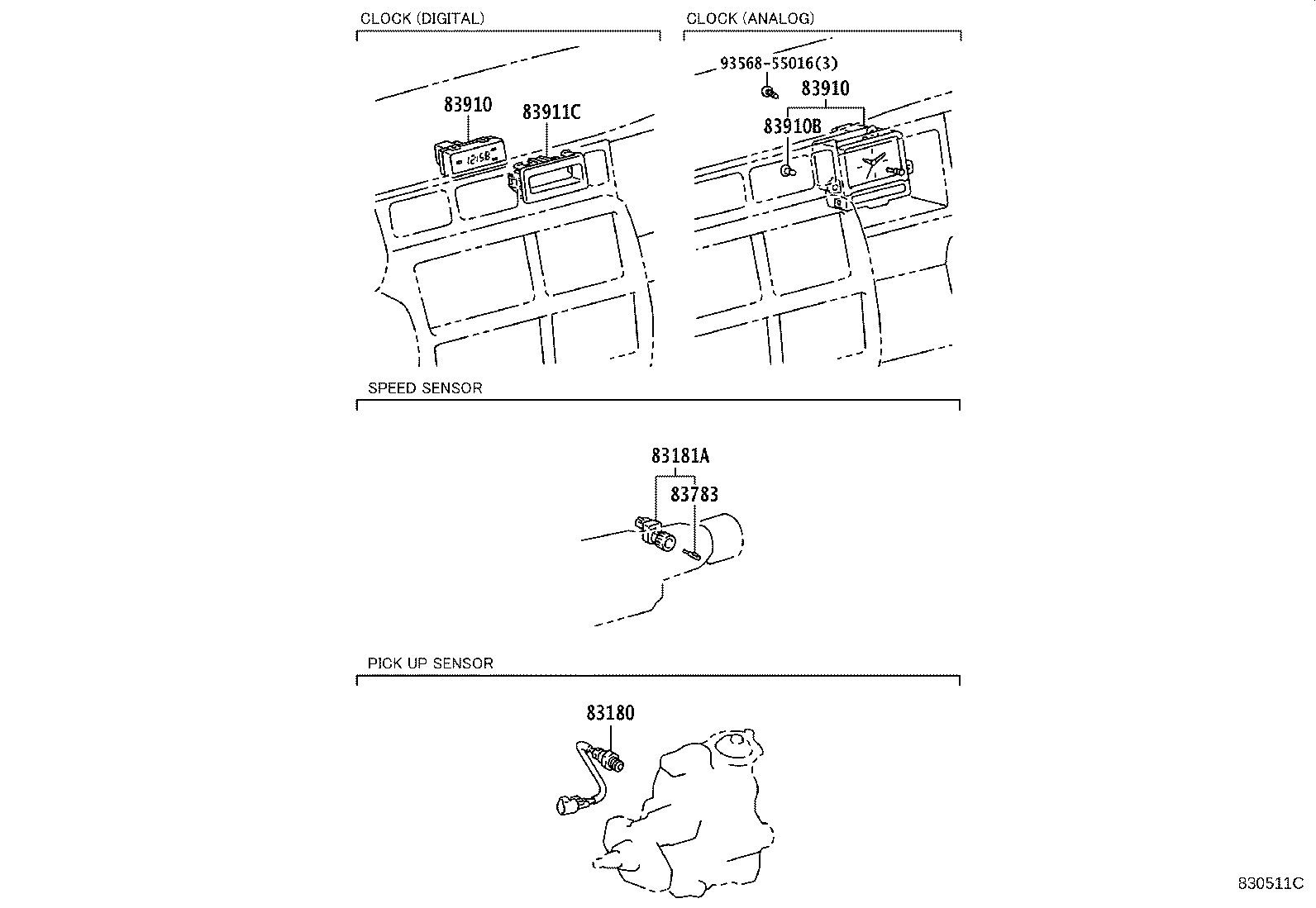

ILLUST NO. 2 OF 2(9601- )
CLOCK&SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-60080 |
LXS10 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
LXS1#,YXS10 |
1 | ||
| 83783 - KEY, SPEEDMETER SENSOR | ||||
| 83783-22010 |
LXS1#,YXS10 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30481 |
LXS1# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30481 |
LXS1# |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02001 |
LXS10 12V 3.4W,GREEN CAP |
1 | ||
| Common parts | ||||
| 93568-55016 | ||||

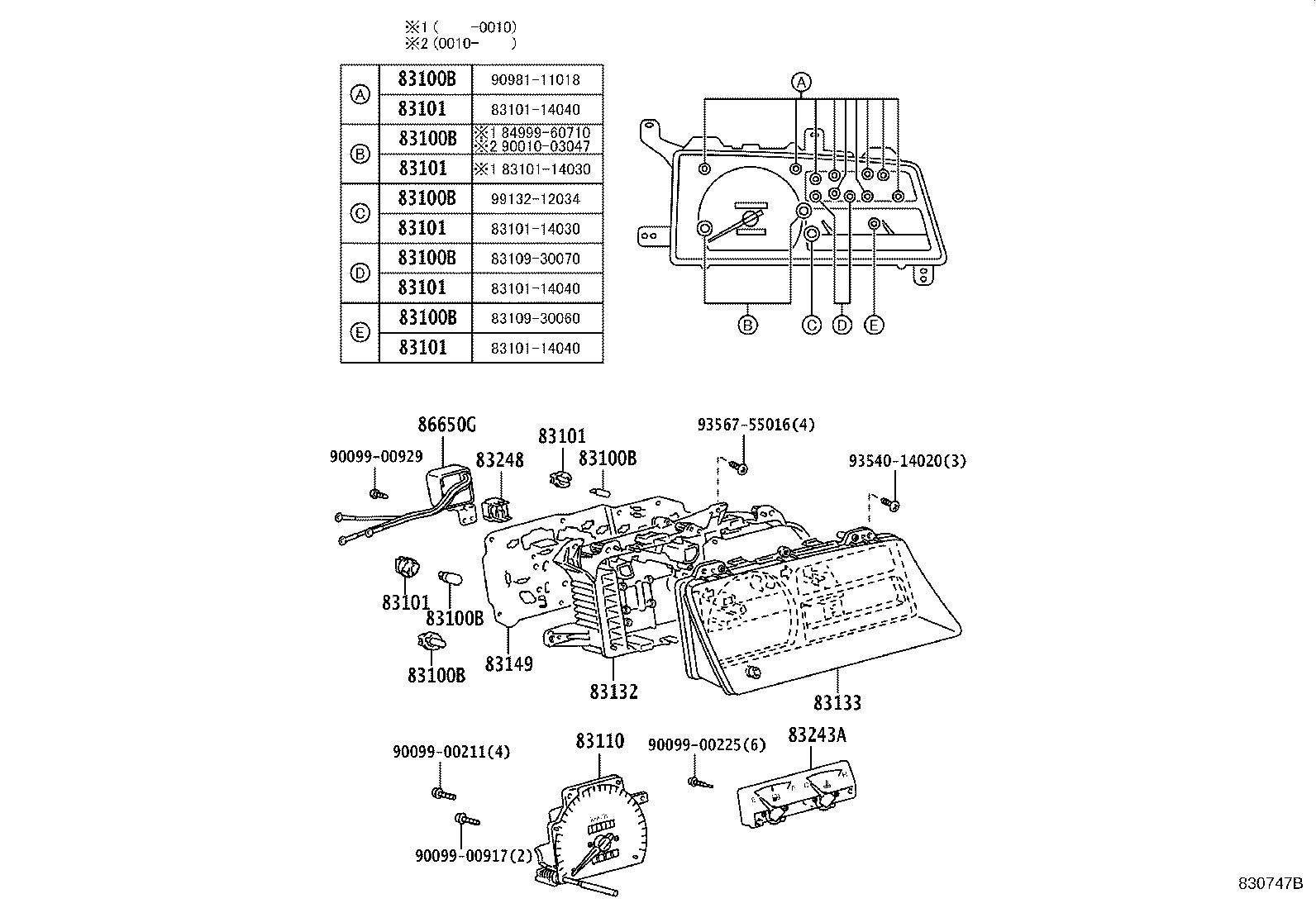

ILLUST NO. 1 OF 2(9601-0108)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
LXS1#,YXS10 12V 1.4W W(SOCKET) |
1 | ||
| 83109-30070 |
LXS10 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-30060 |
LXS1#,YXS10 12V 2.0W,W/GREEN CAP |
1 | ||
| 90981-11018 |
LXS1#,YXS10 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
LXS1# 12V 3.4W |
1 | ||
| 84999-60710 |
LXS1#,YXS10 14V 3.8W,W/GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LXS1#,YXS10 SMALL TYPE |
1 | ||
| 83101-14030 |
LXS1#,YXS10 LARGE TYPE |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3F131 |
LXS1# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-43110 |
LXS10 |
1 | ||
| 83841-43230 |
LXS10 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-43110 |
LXS10 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-43230 |
LXS10 |
1 | ||
| 83861-43110 |
LXS10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-3A530 |
LXS10 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
LXS10 |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-30120 |
LXS10..5F |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
