LXS10R-AEMBS (1996)
Toyota Crown Comfort
Production
Jan 1996
-
Jan 1999
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )

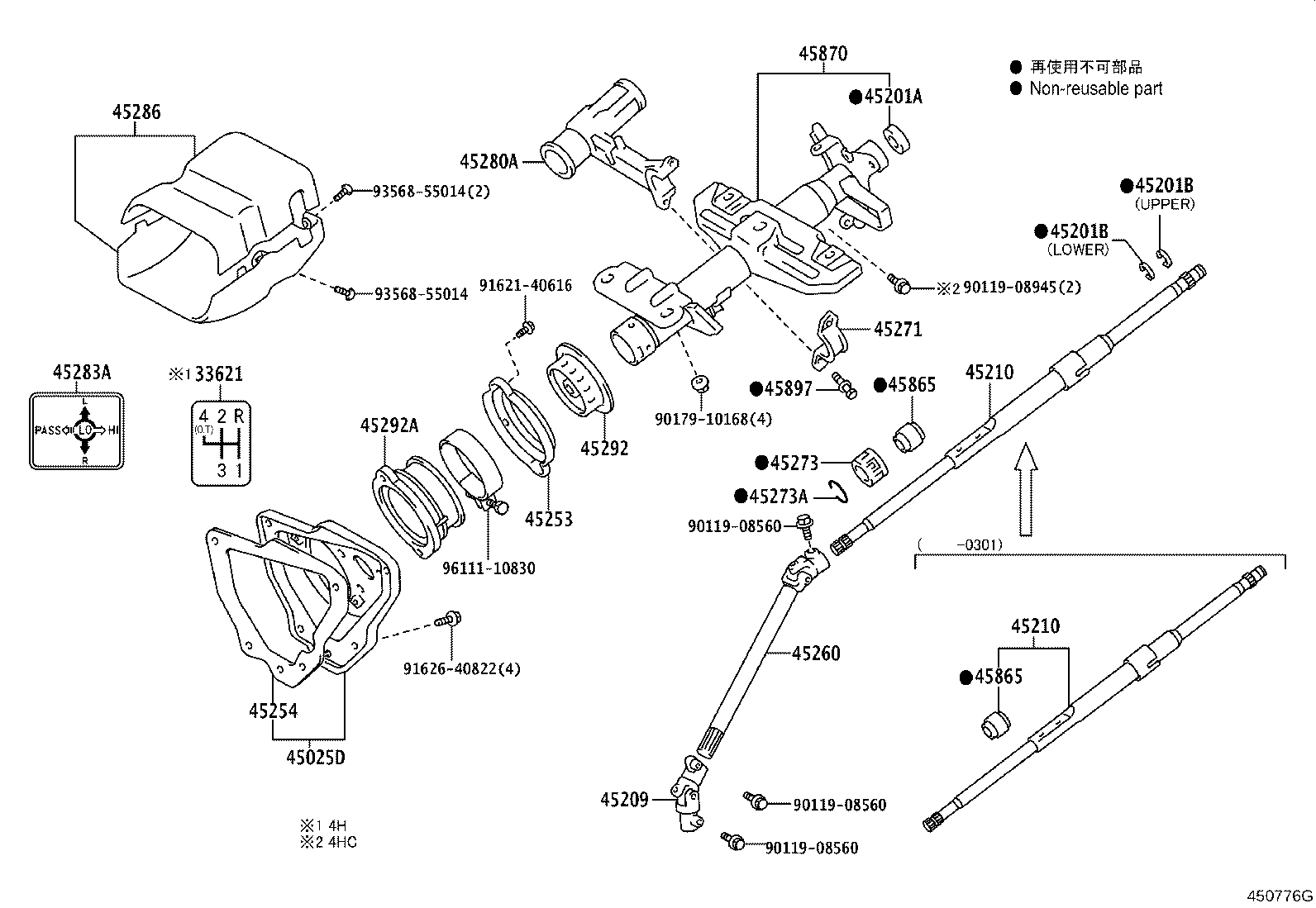

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-43010 |
LXS1#..5F |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
LXS1#,YXS10 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LXS1#,YXS10 T=1.20,LOWER |
1 | ||
| 90520-17269 |
LXS1#,YXS10 T=1.20,UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LXS1#,YXS10 T=1.20,LOWER |
1 | ||
| 90520-17269 |
LXS1#,YXS10 T=1.20,UPPER |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
LXS1#,YXS10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-43010 |
LXS1#,YXS10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-43010 |
LXS1#,YXS10 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-43030 |
LXS1#,YXS10 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-43010 |
LXS1#,YXS10 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-43010 |
LXS1#,YXS10 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
LXS1#,YXS10 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20011 |
LXS1#,YXS10 |
1 | ||
| 45273A - RING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH) | ||||
| 90521-01006 |
LXS1#,YXS10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-43020 |
LXS1#,YXS10..MTM |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LXS1#,YXS10 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-43902B0 |
LXS1#..5F SHADOW GRAY,TRIM1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-30070 |
LXS1#,YXS10 |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-43010 |
LXS1#,YXS10 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-20010 |
LXS1#,YXS10 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-20010 |
LXS1#,YXS10 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-43020 |
LXS1#..5F |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
LXS1#,YXS10 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08945 | ||||
| 90179-10168 | ||||
| 91621-40616 | ||||
| 91626-40822 | ||||
| 93568-55014 | ||||
| 96111-10830 | ||||
