LXS10R-AEMBS (1996)
Toyota Crown Comfort
(9601- )5F
W55,W57

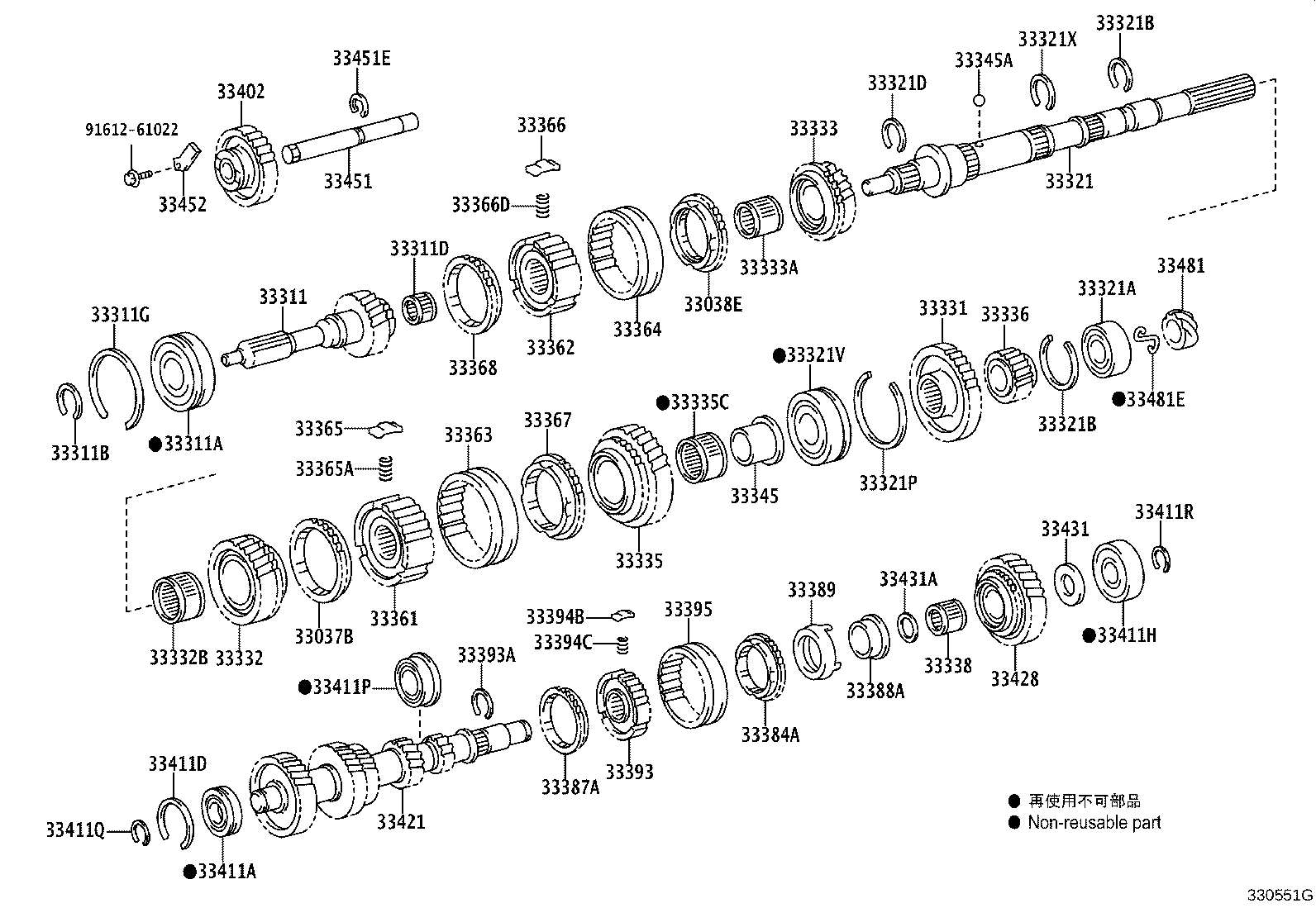

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-30011 |
LXS1#..5F |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-30011 |
LXS10..5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-30080 |
LXS10..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35033 |
LXS1#..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33132 |
LXS1#..5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33107 |
LXS1#..5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
LXS1#..5F T=2.05,MARK 1 |
1 | ||
| 90520-33169 |
LXS1#..5F T=2.10,MARK 2 |
1 | ||
| 90520-33170 |
LXS1#..5F T=2.15,MARK 3 |
1 | ||
| 90520-33171 |
LXS1#..5F T=2.20,MARK 4 |
1 | ||
| 90520-33172 |
LXS1#..5F T=2.25,MARK 5 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19006 |
LXS1#..5F |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
LXS1#..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-30120 |
LXS1#..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-30010 |
LXS1#..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25003 |
LXS1#..5F T=2.68,MARK 14 |
1 | ||
| 90520-25004 |
LXS1#..5F T=2.74,MARK 15 |
1 | ||
| 90520-25272 |
LXS1#..5F T=2.55-2.60,MARK 12 |
1 | ||
| 90520-25270 |
LXS1#..5F T=2.43-2.48,MARK 10 |
1 | ||
| 90520-25271 |
LXS1#..5F T=2.49-2.54,MARK 11 |
1 | ||
| 90520-25284 |
LXS1#..5F T=2.31-2.36,MARK 8 |
1 | ||
| 90520-54003 |
LXS1#..5F T=0.95-1.05,NO MARK |
1 | ||
| 90520-25285 |
LXS1#..5F T=2.37-2.42,MARK 9 |
1 | ||
| 90520-25273 |
LXS1#..5F T=2.61-2.66,MARK 13 |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25003 |
LXS1#..5F T=2.68,MARK 14 |
1 | ||
| 90520-25004 |
LXS1#..5F T=2.74,MARK 15 |
1 | ||
| 90520-25272 |
LXS1#..5F T=2.55-2.60,MARK 12 |
1 | ||
| 90520-25270 |
LXS1#..5F T=2.43-2.48,MARK 10 |
1 | ||
| 90520-25271 |
LXS1#..5F T=2.49-2.54,MARK 11 |
1 | ||
| 90520-25284 |
LXS1#..5F T=2.31-2.36,MARK 8 |
1 | ||
| 90520-54003 |
LXS1#..5F T=0.95-1.05,NO MARK |
1 | ||
| 90520-25285 |
LXS1#..5F T=2.37-2.42,MARK 9 |
1 | ||
| 90520-25273 |
LXS1#..5F T=2.61-2.66,MARK 13 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28245 |
LXS1#..5F T=1.80-1.85,MARK D |
1 | ||
| 90520-28012 |
LXS1#..5F T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28016 |
LXS1#..5F T=1.98,MARK 13 |
1 | ||
| 90520-28018 |
LXS1#..5F T=2.10,MARK 15 |
1 | ||
| 90520-28014 |
LXS1#..5F T=1.86,MARK 11 |
1 | ||
| 90520-28017 |
LXS1#..5F T=2.04,MARK 14 |
1 | ||
| 90520-28015 |
LXS1#..5F T=1.92,MARK 12 |
1 | ||
| 33321P - RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-76001 |
LXS1#..5F T=1.65 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35036 |
LXS1#..5F |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33002 |
LXS1#..5F T=2.67,MARK 18 |
1 | ||
| 90520-33134 |
LXS1#..5F T=2.55,MARK 16 |
1 | ||
| 90520-33107 |
LXS1#..5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33109 |
LXS1#..5F T=2.50,MARK 15 |
1 | ||
| 90520-33001 |
LXS1#..5F T=2.61,MARK 17 |
1 | ||
| 90520-33133 |
LXS1#..5F T=2.45,MARK 14 |
1 | ||
| 90520-33005 |
LXS1#..5F T=2.85,MARK 21 |
1 | ||
| 90520-33172 |
LXS1#..5F T=2.25,MARK 5 |
1 | ||
| 90520-33007 |
LXS1#..5F T=2.97,MARK 23 |
1 | ||
| 90520-33132 |
LXS1#..5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33003 |
LXS1#..5F T=2.73,MARK 19 |
1 | ||
| 90520-33004 |
LXS1#..5F T=2.79,MARK 20 |
1 | ||
| 90520-33006 |
LXS1#..5F T=2.91,MARK 22 |
1 | ||
| 90520-33108 |
LXS1#..5F T=2.40,MARK 13 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-30061 |
LXS1#..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-30031 |
LXS1#..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43006 |
LXS1#..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-30011 |
LXS1#..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-32023 |
LXS1#..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-30030 |
LXS1#..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43006 |
LXS1#..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-30030 |
LXS10..5F |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-27002 |
LXS1#..5F |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-30020 |
LXS1#..5F |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
LXS1#..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-30030 |
LXS1#..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-30050 |
LXS10..5F |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-30031 |
LXS1#..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-30031 |
LXS1#..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-30060 |
LXS1#..5F |
3 | ||
| 33365A - SPRING, COMPRESSION | ||||
| 90501-08134 |
LXS1#..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33365-30060 |
LXS1#..5F |
3 | ||
| 33366D - SPRING, COMPRESSION | ||||
| 90501-08134 |
LXS1#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-30060 |
LXS1#..5F |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-30120 |
LXS1#..5F |
1 | ||
| 33384A - RING, SYNCHRONIZER, OUTER NO.3 | ||||
| 33384-30010 |
LXS1#..5F |
1 | ||
| 33387A - RING, REVERSE SYNCHRONIZER | ||||
| 33387-30010 |
LXS1#..5F |
1 | ||
| 33388A - RING, REVERSE SYNCHRONIZER PULL | ||||
| 33388-30010 |
LXS1#..5F |
1 | ||
| 33389 - RING, SYNCHRONIZER CONE | ||||
| 33389-30010 |
LXS1#..5F |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-30040 |
LXS1#..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24004 |
LXS1#..5F T=2.18-2.23 |
1 | ||
| 90520-24002 |
LXS1#..5F T=2.06-2.11 |
1 | ||
| 90520-24003 |
LXS1#..5F T=2.12-2.17 |
1 | ||
| 90520-24005 |
LXS1#..5F T=2.24-2.29 |
1 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-30020 |
LXS1#..5F |
3 | ||
| 33394C - SPRING, COMPRESSION | ||||
| 90501-07104 |
LXS1#..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-30021 |
LXS1#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-30031 |
LXS1#..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25014 |
LXS1#..5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
LXS1#,YXS10..MTM T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-22007 |
LXS1#..5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-30010 |
LXS1#..5F |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23060 |
LXS1#..5F T=2.25,MARK D |
1 | ||
| 90520-23059 |
LXS1#..5F T=2.20,MARK C |
1 | ||
| 90520-23061 |
LXS1#..5F T=2.30,MARK E |
1 | ||
| 90520-23057 |
LXS1#..5F T=2.10,MARK A |
1 | ||
| 90520-23058 |
LXS1#..5F T=2.15,MARK B |
1 | ||
| 90520-23062 |
LXS1#..5F T=2.35,MARK F |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-20008 |
LXS1#..5F T=1.90-1.95,MARK 1 |
1 | ||
| 90520-20009 |
LXS1#..5F T=1.96-2.01,MARK 2 |
1 | ||
| 90520-20010 |
LXS1#..5F T=2.02-2.07,MARK 3 |
1 | ||
| 90520-20011 |
LXS1#..5F T=2.08-2.13,MARK 4 |
1 | ||
| 90520-20012 |
LXS1#..5F T=2.14-2.19,MARK 5 |
1 | ||
| 90520-20013 |
LXS1#..5F T=2.20-2.25,MARK 6 |
1 | ||
| 90520-20014 |
LXS1#..5F T=2.26-2.31,MARK 7 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-30151 |
LXS10..5F |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-30040 |
LXS10..5F |
1 | ||
| 33431 - SPACER, COUNTER GEAR, NO.1 | ||||
| 33431-22030 |
LXS1#..5F |
1 | ||
| 33431A - SPACER, COUNTER GEAR, NO.2 | ||||
| 33431-22020 |
LXS1#..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30060 |
LXS1#..5F |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
LXS1#..5F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-30021 |
LXS1#..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22030 |
LXS10..5F N=10,MARK 10X31-33 |
1 | ||
| 33481E - CLIP (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90467-25001 |
LXS1#..5F |
1 | ||
| Common parts | ||||
| 91612-61022 | ||||
