LXS10R-AEJBS (1996)

Toyota Crown Comfort

Production Jan 1996 - Feb 1998
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-1206)

Click highlighted areas on diagram

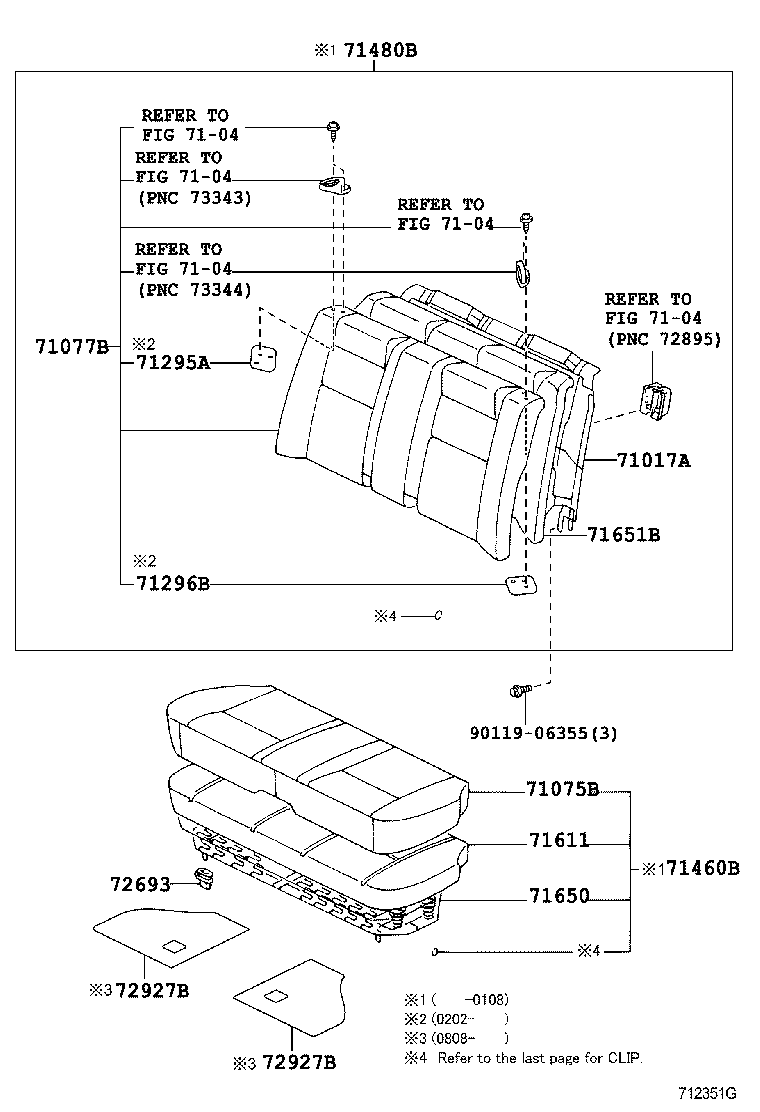

diagram 71017A 7104 7104 7104 7104 7104 71075B 71077B 71295A 71296B 71460B 71480B 71611 71650 71651B 72693 72927B 72927B 9011906355
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-43010

LXS1#,YXS10

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-43020B1

LXS10

W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#

 1
71075-43010B1

LXS10

MEDIUM GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-43020B1

LXS1#,YXS10

W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#

 1
71077-43010B1

LXS1#,YXS10

MEDIUM GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-43010B0

LXS1#,YXS10

SHADOW GRAY,TRIM1#

 1
71460-43020B0

LXS1#,YXS10

W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-43020B0

LXS1#,YXS10

W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#

 1
71480-43010B0

LXS1#,YXS10

SHADOW GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-43010

LXS10

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-43010

LXS1#,YXS10

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-43010

LXS10

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-43011

LXS10..4H

 2
72693-43010

LXS10

 2
Common parts
90119-06355
Linked diagrams
7104

(9601- )

Click highlighted areas on diagram

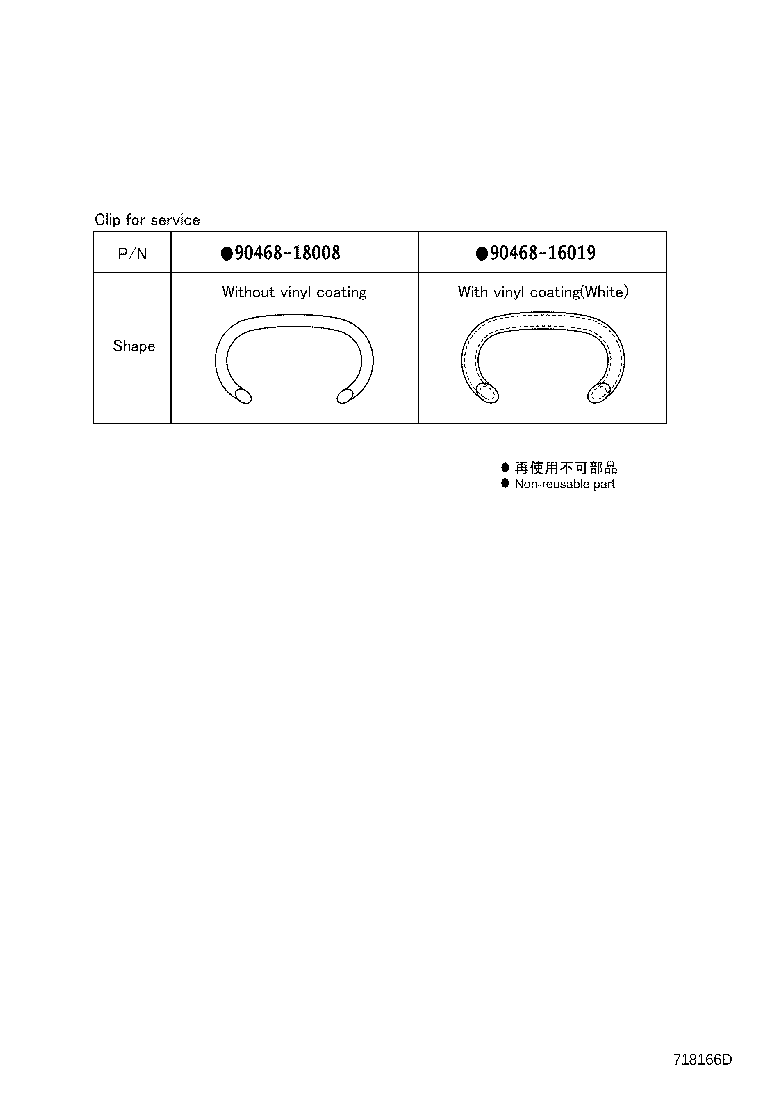

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
