UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )UZS200

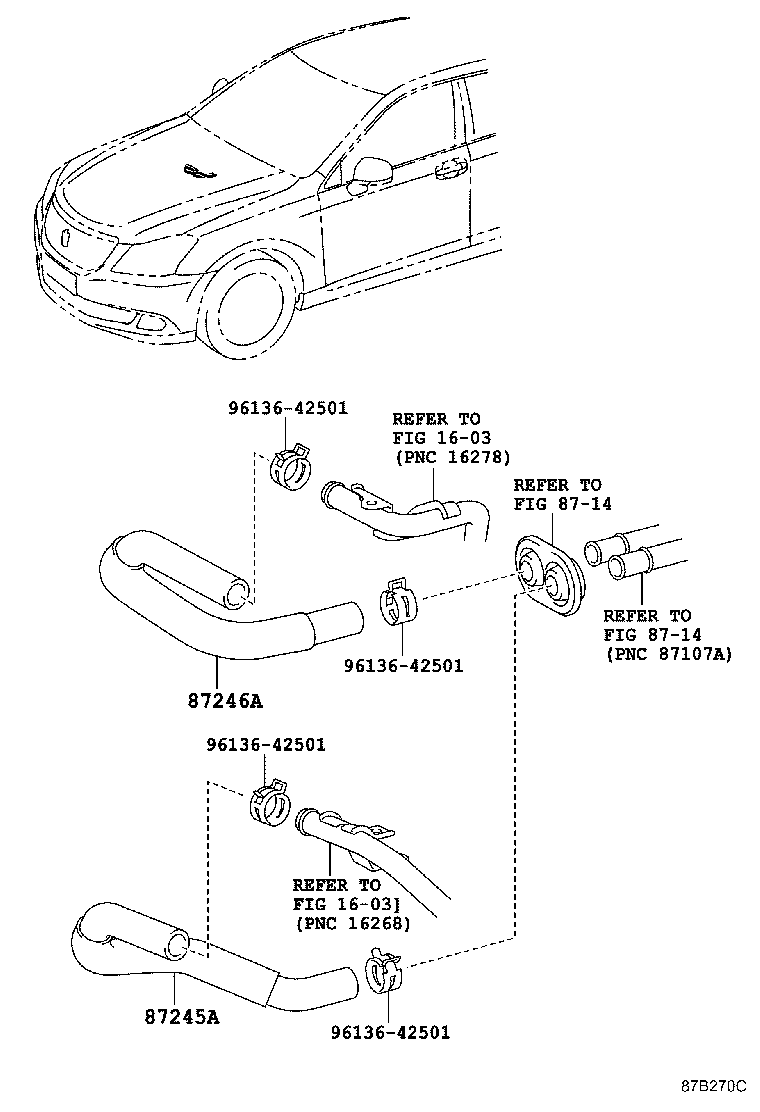

Click highlighted areas on diagram

diagram 1603 1603 8714 8714 87245A 87246A 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-0N030

UZS200

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0N040

UZS200

 1
Common parts
96136-42501
Linked diagrams
1603
8714
