UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )UZS200

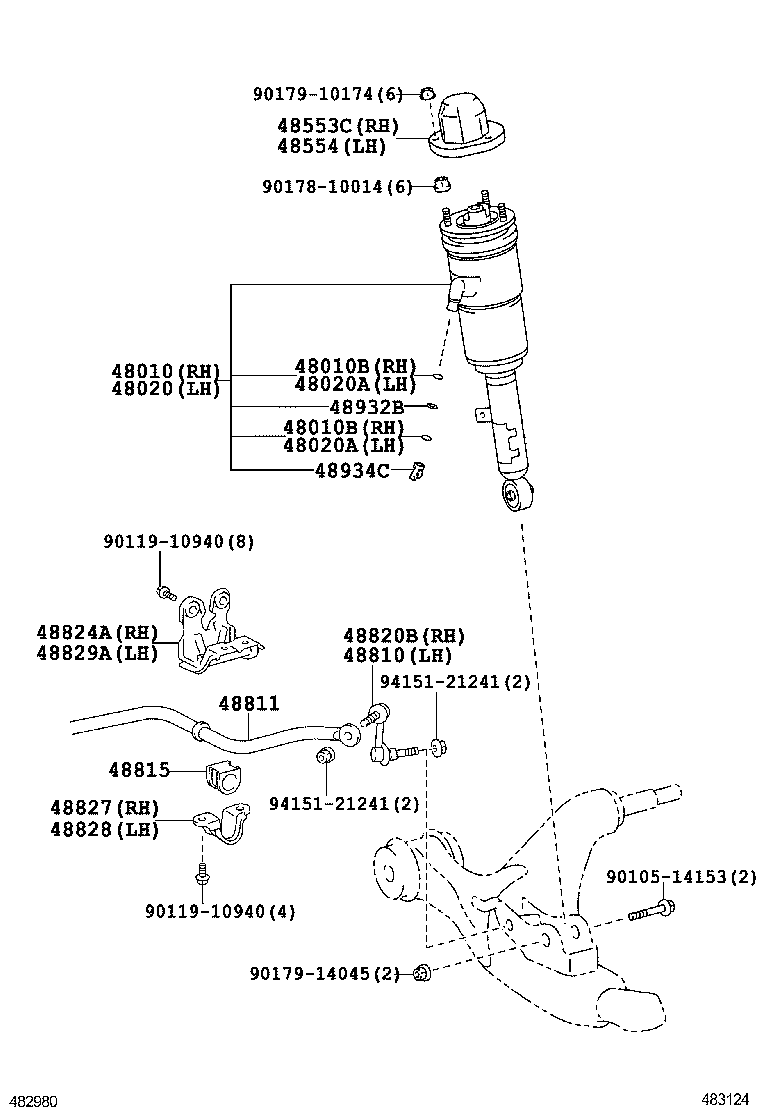

Click highlighted areas on diagram

diagram 48010 48010B 48010B 48020 48020A 48020A 48553C 48554 48810 48811 48815 48820B 48824A 48827 48828 48829A 48932B 48934C 9010514153 9011910940 9011910940 9017810014 9017910174 9017914045 9415121241 9415121241
Part # Description Qty Price
48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER
48010-30200

UZS200

 1
48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH)
90301-04011

UZS200

 2
48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH)
90301-04011

UZS200

 2
48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER
48020-30200

UZS200

 1
48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH)
90301-04011

UZS200

 2
48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH)
90301-04011

UZS200

 2
48553C - CAP, FRONT SHOCK ABSORBER, RH
48553-30100

UZS200

 1
48554 - CAP, FRONT SHOCK ABSORBER, LH
48553-30100

UZS200

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-0N010

GRS20#,UZS200

 1
48811 - BAR, STABILIZER, FRONT
48811-0N050

UZS200

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-0N050

UZS200

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-0N010

GRS20#,UZS200

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30060

GRS20#,UZS200

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-30130

GRS20#,UZS200

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-30130

GRS20#,UZS200

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30060

GRS20#,UZS200

 1
48932B - PLATE, HEIGHT CONTROL TUBE
48932-30010

UZS200

 2
48934C - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010

UZS200

 2
Common parts
90105-14153
90119-10940
90178-10014
90179-10174
90179-14045
94151-21241
