UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )UZS200

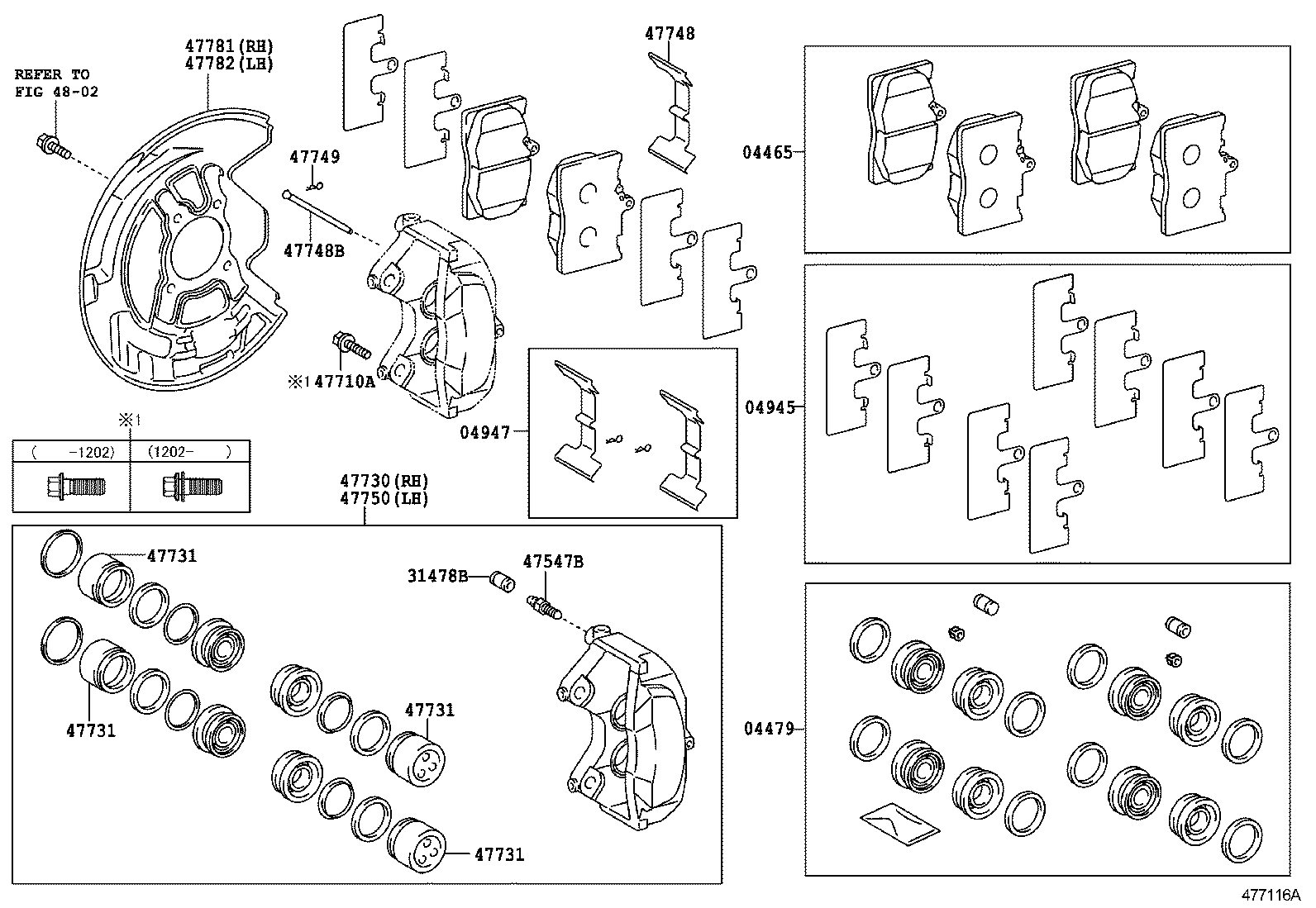

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47730 47731 47731 47731 47731 47748 47748B 47749 47750 47781 47782 4802
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30470

UZS200

MARK ADVICS PV565H

 1
04465-30430

UZS200

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-50130

UZS200

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30321

UZS200

 1
04945-30330

UZS200

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-22070

UZS200

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-14010

UZS200

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-50010

UZS200

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-K1240

GRS20#,UZS200

*12-1.25PX40-30

 4
90119-12415

GRS20#,UZS200

*12-1.25PX45-30

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-22460

UZS200

 1
47731 - PISTON, FRONT DISC BRAKE
47731-50070

UZS200

 8
47731 - PISTON, FRONT DISC BRAKE
47731-50070

UZS200

 8
47731 - PISTON, FRONT DISC BRAKE
47731-50070

UZS200

 8
47731 - PISTON, FRONT DISC BRAKE
47731-50070

UZS200

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-22460

UZS200

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
47735-50020

UZS200

 2
47749 - CLIP, PIN HOLD
47749-50030

UZS200

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-22460

UZS200

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22200

UZS200

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22200

UZS200

 1
Linked diagrams
4802
