UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )3UZFE

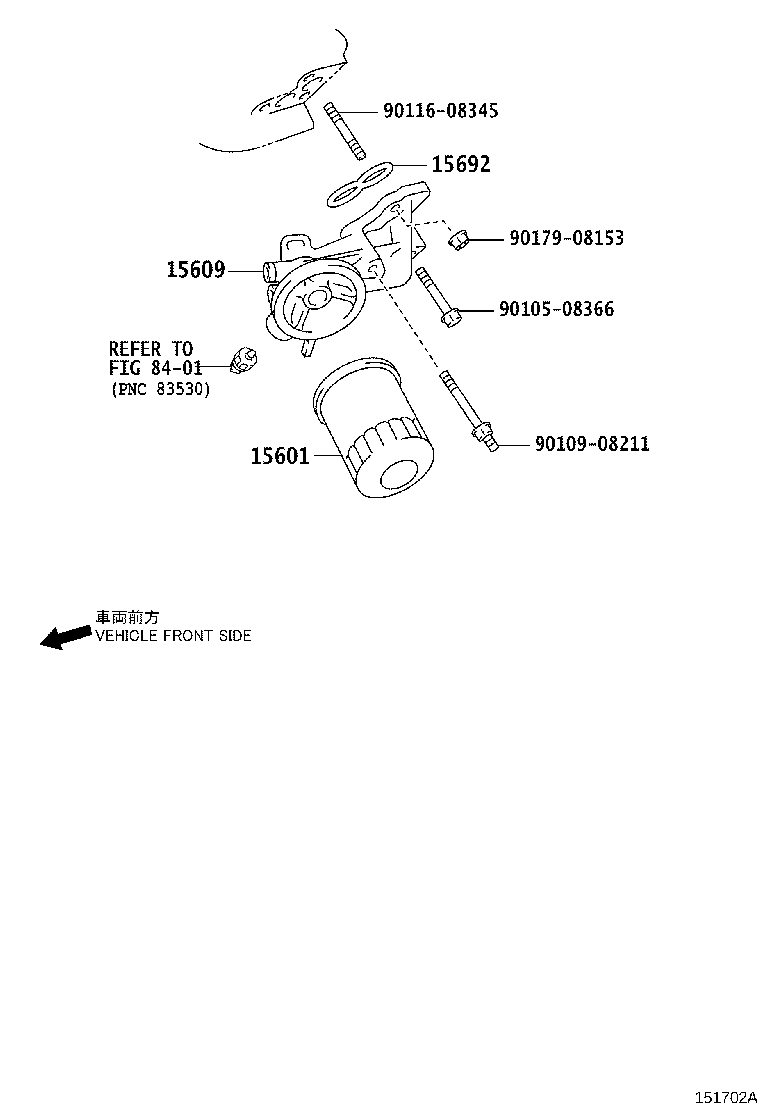

Click highlighted areas on diagram

diagram 15601 15609 15692 8401 9010508366 9010908211 9011608345 9017908153
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20004

3UZFE..UZS200

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-50140

3UZFE..UZS200

 1
15692 - GASKET, OIL FILTER BRACKET
15692-50020

3UZFE..UZS200

 1
Common parts
90105-08366
90109-08211
90116-08345
90179-08153
Linked diagrams
8401
