UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )3UZFE

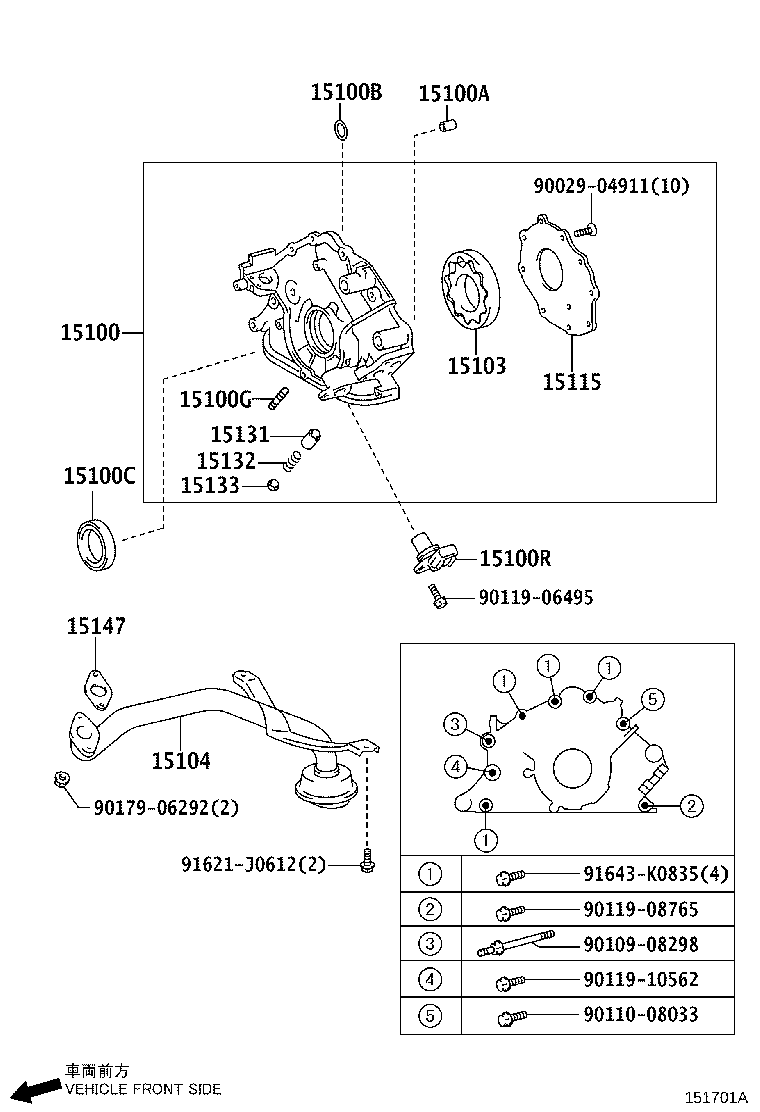

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100G 15100R 15103 15104 15115 15131 15132 15133 15147 9002904911 9010908298 9011008033 9011906495 9011908765 9011910562 9017906292 91621J0612 91643K0835
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-50040

3UZFE..UZS200

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13017

3UZFE..UZS200

 2
15100B - RING, O(FOR OIL PUMP)
96721-24025

3UZFE..UZS200

 1
15100C - SEAL(FOR OIL PUMP)
90311-43006

3UZFE..UZS200

 1
15100G - BOLT,STUD(FOR OIL PUMP)
16193-15010

3UZFE..UZS200

 2
15100R - SENSOR, CRANK POSITION
90919-05035

3UZFE..UZS200

 1
15103 - GEAR SET, OIL PUMP
15103-50041

3UZFE..UZS200

 1
15104 - STRAINER SUB-ASSY, OIL
15104-50210

3UZFE..UZS200

 1
15115 - COVER, OIL PUMP
15115-50040

3UZFE..UZS200

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46040

3UZFE..UZS200

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

3UZFE..UZS200

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-17010

3UZFE..UZS200

 1
15147 - GASKET, OIL STRAINER
15147-50011

3UZFE..UZS200

 1
Common parts
90029-04911
90109-08298
90110-08033
90119-06495
90119-08765
90119-10562
90179-06292
91621-J0612
91643-K0835
