UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )3UZFE

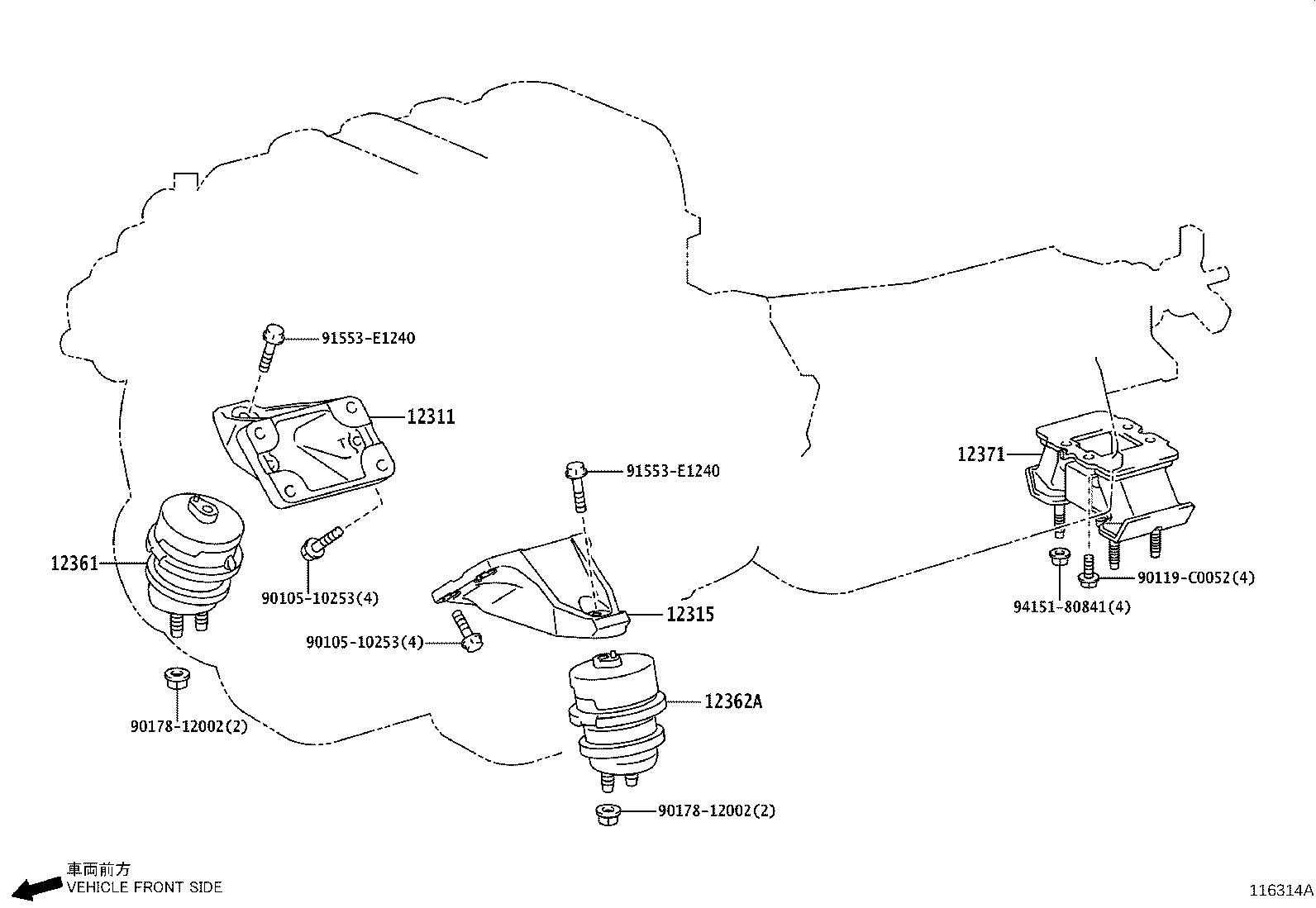

Click highlighted areas on diagram

diagram 12311 12315 12361 12362A 12371 9010510253 9010510253 90119C0052 9017812002 9017812002 91553E1240 91553E1240 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50150

3UZFE..UZS200

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-50150

3UZFE..UZS200

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50280

3UZFE..UZS200

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-50040

3UZFE..UZS200

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31210

3UZFE..UZS200

 1
Common parts
90105-10253
90119-C0052
90178-12002
91553-E1240
94151-80841
