UZS200L-DETCKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )3UZFE

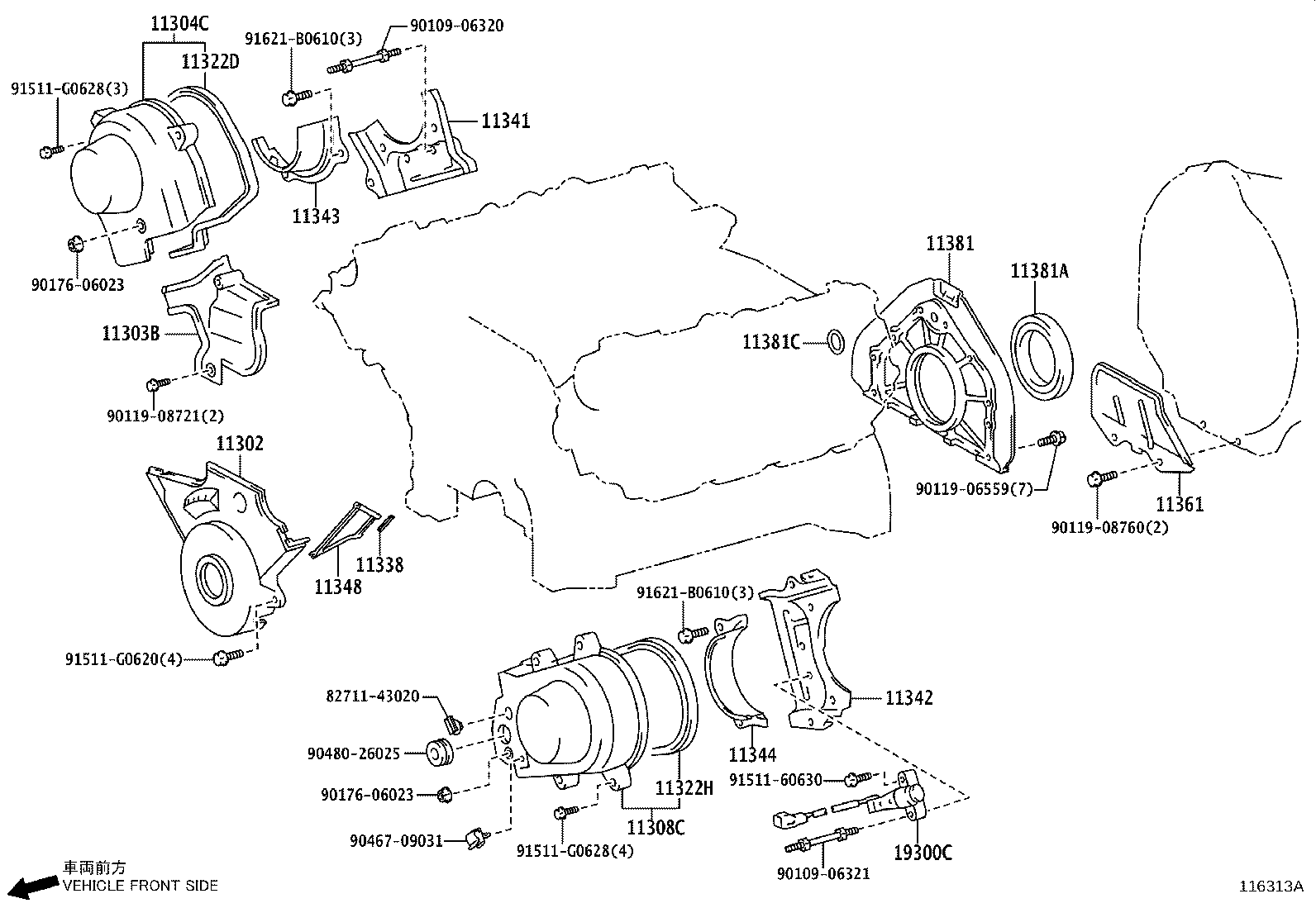

Click highlighted areas on diagram

diagram 11302 11303B 11304C 11308C 11322D 11322H 11338 11341 11342 11343 11344 11348 11361 11381 11381A 11381C 19300C 8271143020 9010906320 9010906321 9011906559 9011908721 9011908760 9017606023 9017606023 9046709031 9048026025 9151160630 91511G0620 91511G0628 91511G0628 91621B0610 91621B0610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-50040

3UZFE..UZS200

 1
11303B - COVER SUB-ASSY, TIMING BELT, NO.2
11303-50030

3UZFE..UZS200

 1
11304C - COVER SUB-ASSY, TIMING BELT, NO.3 RH
11304-50030

3UZFE..UZS200

 1
11308C - COVER SUB-ASSY, TIMING BELT, NO.3 LH
11308-50040

3UZFE..UZS200

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-50040

3UZFE..UZS200

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-50030

3UZFE..UZS200

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-50010

3UZFE..UZS200

 1
11341 - PLATE, TIMING BELT, REAR RH
11341-50020

3UZFE..UZS200

 1
11342 - PLATE, TIMING BELT, REAR LH
11342-50021

3UZFE..UZS200

 1
11343 - PLATE, TIMING BELT, REAR RH NO.2
11343-50020

3UZFE..UZS200

 1
11344 - PLATE, TIMING BELT, REAR LH NO.2
11344-50020

3UZFE..UZS200

 1
11348 - SPACER, TIMING GEAR COVER
11348-50011

3UZFE..UZS200

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-50020

3UZFE..UZS200

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-50021

3UZFE..UZS200

 1
11381A - SEAL, ENGINE REAR OIL
90311-95012

3UZFE..UZS200

 1
11381C - RING, O(FOR OIL SEAL RETAINER)
96721-24025

3UZFE..UZS200

 1
19300C - SENSOR ASSY, CAM POSITION
19300-50020

3UZFE..UZS200

 1
Common parts
82711-43020
90109-06320
90109-06321
90119-06559
90119-08721
90119-08760
90176-06023
90467-09031
90480-26025
91511-60630
91511-G0620
91511-G0628
91621-B0610
