GRS218L-DETUKC (2015)
Toyota Crown (China)
Production
Jan 2015
-
Dec 2017
Engine
5GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )5GRFE

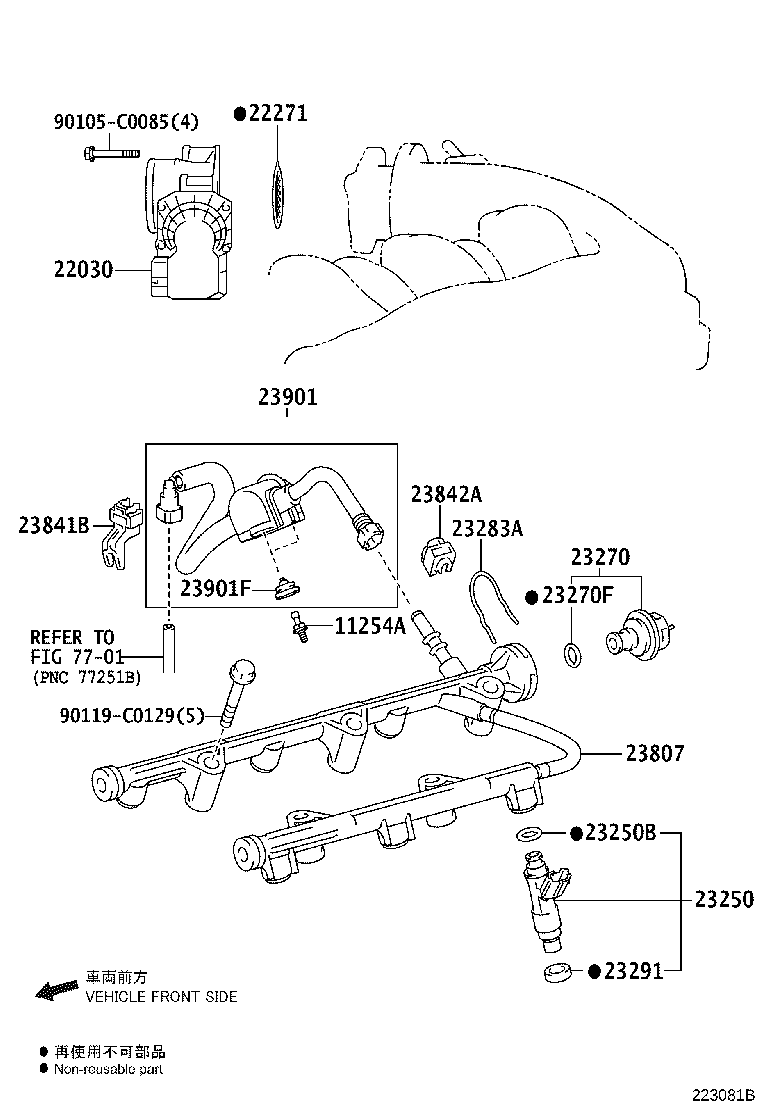

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11254A - BRACKET, V-BANK COVER | ||||
| 11254-31020 |
5GRFE..GRS218 |
2 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0P040 |
5GRFE..GRS218 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-31030 |
5GRFE..GRS218 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-0P060 |
5GRFE..GRS218 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07033 |
5GRFE..GRS218 |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-31140 |
5GRFE..GRS218 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07033 |
5GRFE..GRS218 |
1 | ||
| 23283A - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-31010 |
5GRFE..GRS218 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0P020 |
5GRFE..GRS218 |
6 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-31030 |
5GRFE..GRS218 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-0H030 |
5GRFE..GRS218 (L) |
1 | ||
| 23841-21050 |
5GRFE..GRS218 (J) |
1 | ||
| 23841-21050 |
5GRFE..GRS218 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-31020 |
5GRFE..GRS218 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-31170 |
5GRFE..GRS218 |
1 | ||
| 23901F - GROMMET(FOR FUEL TUBE) | ||||
| 90480-22024 |
5GRFE..GRS218 |
2 | ||
| Common parts | ||||
| 90105-C0085 | ||||
| 90119-C0129 | ||||
| Linked diagrams | ||||
| 7701 | ||||
