GRS218L-DETSKC (2015)

Toyota Crown (China)

Production Jan 2015 - Dec 2017
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )5GRFE

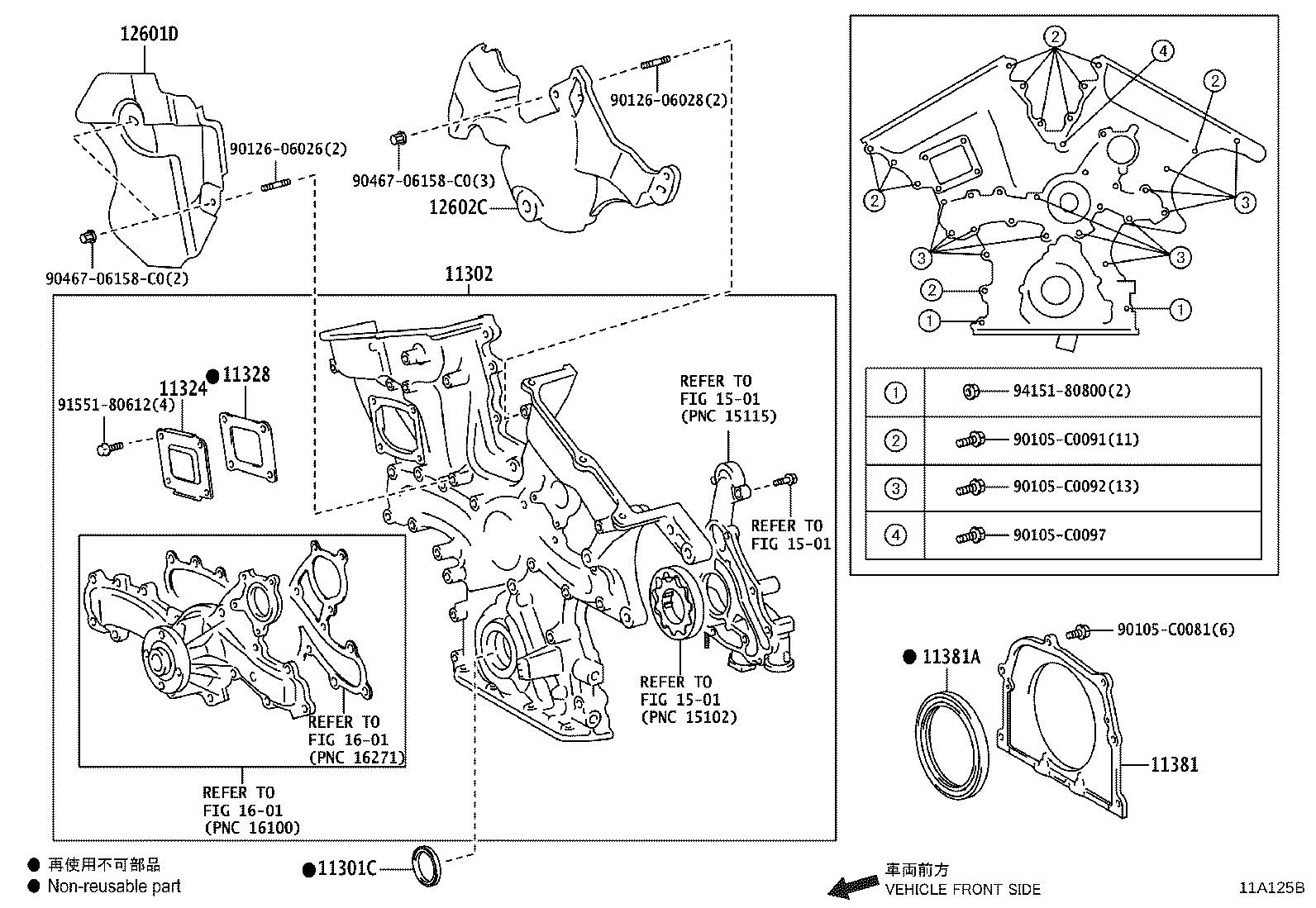

Click highlighted areas on diagram

diagram 11301C 11302 11324 11328 11381 11381A 12601D 12602C 1501 1501 1501 1601 1601 90105C0081 90105C0091 90105C0092 90105C0097 9012606026 9012606028 9046706158C0 9046706158C0 9155180612 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-C0034

5GRFE..GRS218

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0P021

5GRFE..GRS218

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

5GRFE..GRS218

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-0P030

5GRFE..GRS218

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0P011

5GRFE..GRS218

 1
11381A - SEAL, ENGINE REAR OIL
90311-C0004

5GRFE..GRS218

 1
12601D - COVER, ENGINE, NO.1
12601-31020

5GRFE..GRS218

 1
12602C - COVER, ENGINE, NO.2
12602-0P011

5GRFE..GRS218

 1
Common parts
90105-C0081
90105-C0091
90105-C0092
90105-C0097
90126-06026
90126-06028
90467-06158C0
91551-80612
94151-80800
Linked diagrams
1501
1601
