GRS208L-DETBKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912-1207)

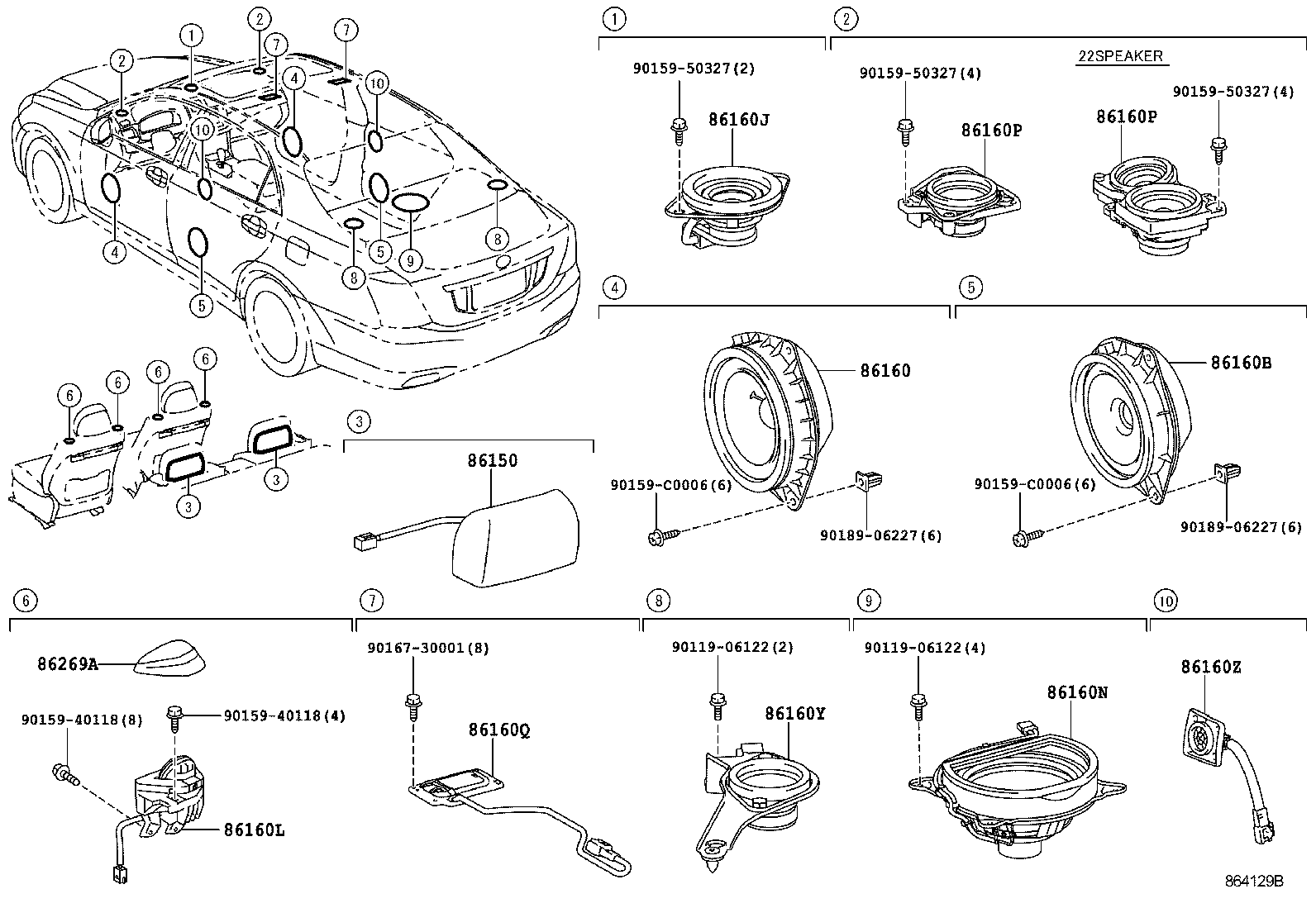

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160J 86160L 86160N 86160P 86160P 86160Q 86160Y 86160Z 86269A 9011906122 9011906122 9015940118 9015940118 9015950327 9015950327 9015950327 90159C0006 90159C0006 9016730001 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0N220

GRS20#,UZS200

 2
86160B - SPEAKER ASSY, REAR
86160-0P040

GRS20#,UZS200

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-0N250

GRS208

NAVIGATION PACKAGE

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86160-0N230

GRS208

NAVIGATION PACKAGE

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0N210

GRS20#,UZS200

LH

 1
86160-0N200

GRS20#,UZS200

RH

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0N210

GRS20#,UZS200

LH

 1
86160-0N200

GRS20#,UZS200

RH

 1
86160Y - SPEAKER ASSY, REAR NO.2
86160-0N290

GRS208

NAVIGATION PACKAGE,RH

 1
86160-0N300

GRS208

NAVIGATION PACKAGE,LH

 1
Common parts
90119-06122
90159-40118
90159-50327
90159-C0006
90167-30001
90189-06227
