GRS208L-DETBKC (2009)
Toyota Crown (China)
ILLUST NO. 1 OF11(0912- )

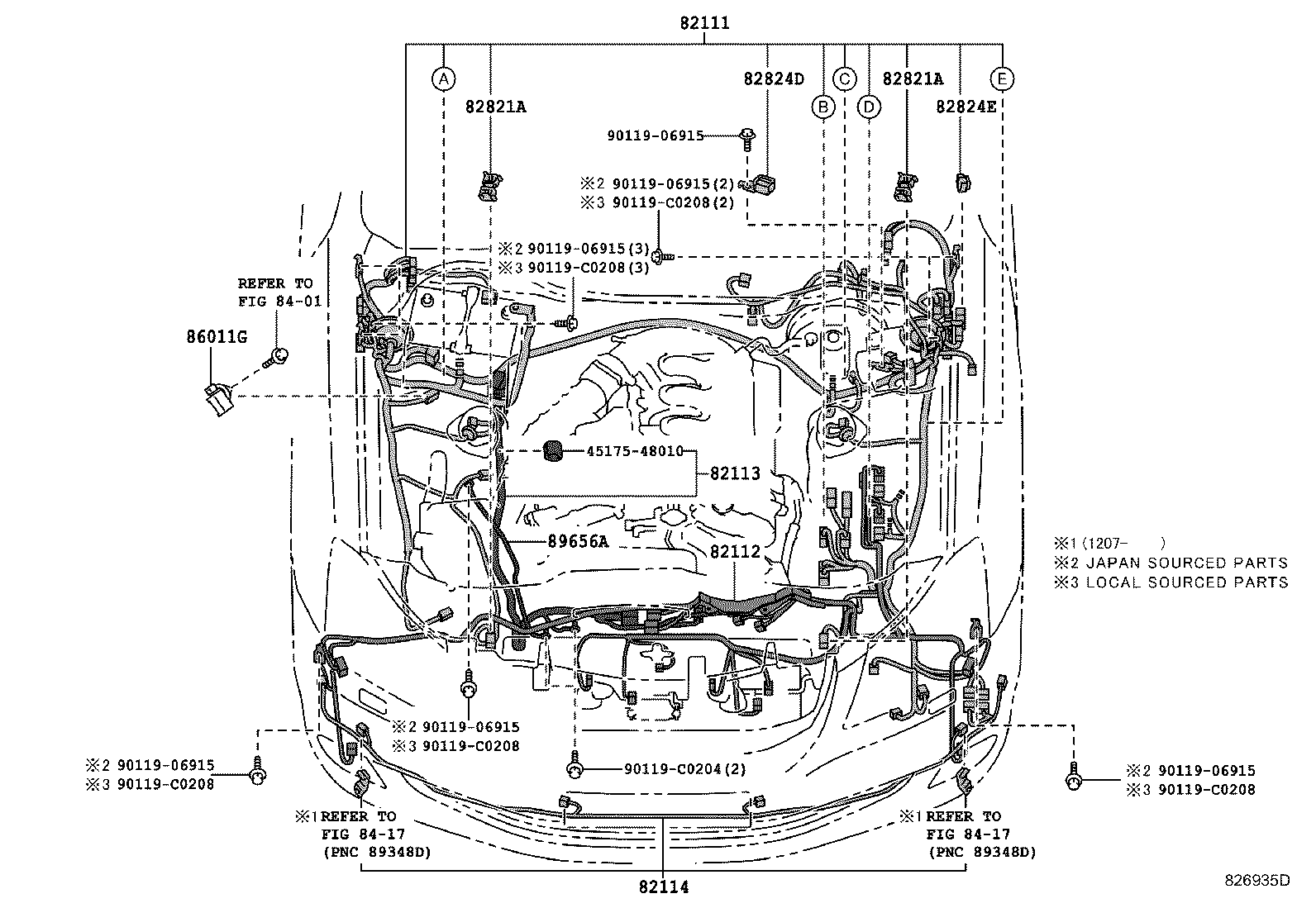

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0N081 |
GRS208 |
1 | ||
| 82111-0N080 |
GRS208 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-0N040 |
GRS20#..ROY,ROYAL,ROYEX |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-0N010 |
GRS20# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS20#,UZS200 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS20#,UZS200 |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
GRS20#,UZS200 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
GRS20#,UZS200 |
1 | ||
| 86011G - CONDENSER | ||||
| 86516-30460 |
GRS20#,UZS200 |
1 | ||
| 89656A - WIRE, POWER STEERING EARTH | ||||
| 89656-30010 |
GRS20#,UZS200 |
1 | ||
| Common parts | ||||
| 45175-48010 | ||||
| 90119-06915 | ||||
| 90119-C0204 | ||||
| 90119-C0208 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 1 OF11(0912- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-30B00 |
GRS20#,UZS200 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30B90 |
GRS20#,UZS200 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRS20#,UZS200 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
GRS20#,UZS200 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
GRS20#,UZS200 |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
GRS20#,UZS200 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(0912- )GRS20#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0N050 |
GRS20# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0N010 |
GRS20# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0N010 |
GRS20# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0N010 |
GRS20# |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-0N010 |
GRS20# |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-0N010 |
GRS20# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-0N010 |
GRS20#,UZS200 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-0N010 |
GRS20# |
2 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-0N010 |
GRS20# |
2 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-43040 |
GRS20# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30A80 |
GRS20# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30M90 |
GRS20#,UZS200 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRS20#,UZS200 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90119-C0097 | ||||
| 90119-C0100 | ||||
| 90119-C0204 | ||||
| 90119-C0208 | ||||
| 90126-06028 | ||||
| 90126-C0001 | ||||
| 90178-C0032 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF11(0912- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0N160 |
GRS208 |
1 | ||
| 82141-0N170 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82141-0N171 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82141-0N161 |
GRS208 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0N020 |
GRS20#,UZS200 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-0N010 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-0N020 |
GRS20#,UZS200 |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-0N010 |
GRS20#..ROY,ROYAL,ROYEX |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-0N010 |
GRS20#,UZS200 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42020 |
GRS20#,UZS200 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-17090 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30400 |
GRS20#,UZS200 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33820 |
GRS20#,UZS200 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
| 90178-C0032 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF11(0912- )
DOOR & SCUFF PLATE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0N040 |
GRS20#,UZS200 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0N060 |
GRS20#..ROYAL,ROYEX |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-0N020 |
GRS20#,UZS200 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0N040 |
GRS20#,UZS200 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0N040 |
GRS20#,UZS200 |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-YY030 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-YY020 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30350 |
GRS20#,UZS200 |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-30350 |
GRS20#,UZS200 |
1 | ||
| 82807 - PROTECTOR SET, WIRING HARNESS | ||||
| 82807-YY020 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| Common parts | ||||
| 90119-C0097 | ||||
ILLUST NO. 5 OF11(0912- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824K - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30140 |
GRS20#,UZS200 NO.2:REFER ILLUST. |
1 | ||
| 61824-30090 |
GRS20#,UZS200 NO.1:REFER ILLUST. |
1 | ||
| 61824K - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30140 |
GRS20#,UZS200 NO.2:REFER ILLUST. |
1 | ||
| 61824-30090 |
GRS20#,UZS200 NO.1:REFER ILLUST. |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-0N100 |
GRS208 |
1 | ||
| 82161-0N110 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0N080 |
GRS208 |
1 | ||
| 82162-0N081 |
GRS208 |
1 | ||
| 82162-0N090 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82162-0N091 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0N120 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82171-0N120 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82171-0N120 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82171-0N080 |
GRS208 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-0N040 |
GRS20#..ROY,ROYAL,ROYEX |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-30A10 |
GRS20#,UZS200 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30A20 |
GRS20#,UZS200 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30890 |
GRS20#,UZS200 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-30A00 |
GRS20#,UZS200 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-30N30 |
GRS20#,UZS200 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-30N40 |
GRS20#,UZS200 |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRS20#,UZS200 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30170 |
GRS20#,UZS200 |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GRS20#,UZS200 |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GRS20#,UZS200 |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
GRS20#,UZS200 |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
GRS20#,UZS200 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 6 OF11(0912- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0N030 |
GRS208 |
1 | ||
| 82191-0N040 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82191-0N040 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82191-0N040 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0N050 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82192-0N040 |
GRS208 |
1 | ||
| 82192-0N050 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82192-0N050 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-30340 |
GRS20#,UZS200 |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-30340 |
GRS20#,UZS200 |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS20#,UZS200 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS20#,UZS200 |
1 | ||
ILLUST NO. 7 OF11(0912- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-0N050 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82195-0N050 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82195-0N080 |
GRS208 |
1 | ||
| 82195-0N050 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-0N050 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82195-0N050 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82195-0N080 |
GRS208 |
1 | ||
| 82195-0N050 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-0N060 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82196-0N060 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82196-0N060 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-0N060 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82196-0N060 |
GRS208 LEATHER PACKAGE |
1 | ||
| 82196-0N060 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-60310 |
GRS208 NAVIGATION PACKAGE |
1 | ||
| 82666-60310 |
GRS208 NATURAL LEATHER & MOON ROOF PACKAGE |
1 | ||
| 82666-60310 |
GRS208 LEATHER PACKAGE |
1 | ||
ILLUST NO. 8 OF11(0912- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23286-31020 | ||||
| 82711-28260 | ||||
| 82715-0P010 | ||||
| 82715-0P020 | ||||
| 82715-0P030 | ||||
| 82715-0P040 | ||||
| 82715-22800 | ||||
| 82715-30A30 | ||||
| 82715-30A90 | ||||
| 82715-30B90 | ||||
| 82715-30C10 | ||||
| 82715-30C70 | ||||
| 82715-30E30 | ||||
| 82715-30K80 | ||||
| 82715-3A040 | ||||
| 82715-3A050 | ||||
| 82715-50350 | ||||
| 82715-50440 | ||||
| 82715-50510 | ||||
| 82715-50540 | ||||
| 90105-C0053 | ||||
| 90105-C0137 | ||||
| 90119-06375 | ||||
| 90119-06915 | ||||
| 90119-C0131 | ||||
| 90119-C0204 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80610 | ||||
ILLUST NO. 9 OF11(0912- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07418 |
GRS20#,UZS200 |
1 | ||
| Common parts | ||||
| 90119-10699 | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 90182-C0006 | ||||
ILLUST NO.10 OF11(0912- )ROYAL ; (0912- )GRS202,UZS200
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11159 | ||||
| 90980-11399 | ||||
| 90980-11893 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
ILLUST NO.11 OF11(0912- )ROYAL ; (0912- )GRS202,UZS200
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10799 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12721 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
